MICRONEDatasheet (PDF)

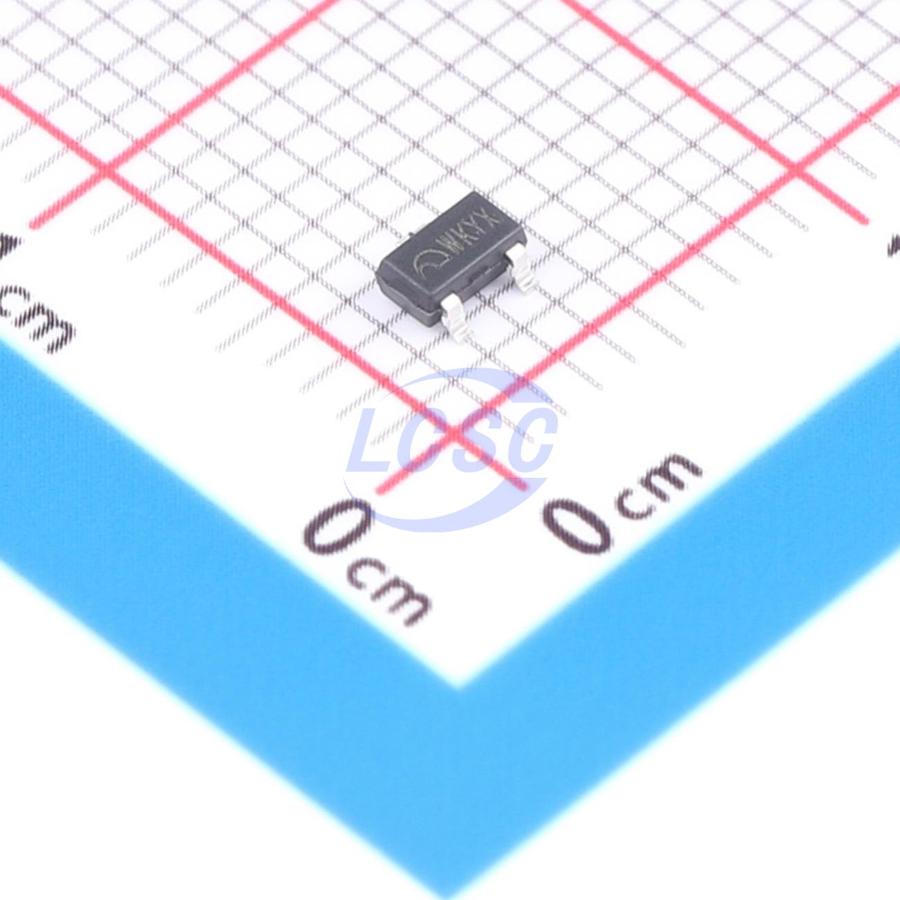

ME2188A33M3G-N
320kHz Boost Fixed 3.3V 350mA SOT-23-3 Voltage Regulators - DC DC Switching Regulators
SOT-23-3RoHSActive
- Manufacturer
- MICRONE
- Manufacturer part #
- ME2188A33M3G-N
- Store part #
- C51038725
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,470 in stock
#C51038725
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.35 | ₹83.50 |
| 100+ | ₹6.64 | ₹664.00 |
| 300+ | ₹5.78 | ₹1,734.00 |
| 3,000+ | ₹5.13 | ₹15,390.00 |
| 6,000+ | ₹4.62 | ₹27,720.00 |
| 9,000+ | ₹4.37 | ₹39,330.00 |
10 × ₹8.35
₹83.50
excl. GST
₹98.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME2188A33M3G-N
₹83.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Number of Outputs
- 1
- Frequency - Switching
- 320kHz
- Function
- Boost
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Fixed
- Topology
- Boost
- Operating Voltage
- 900mV~5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3.3V
- Output Current
- 350mA
- Quiescent Current
- 7.5uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.008 g
Overview
The ME2188-N series is a high-efficiency, low-power, high-frequency synchronous boost DC-DC converter IC with PFM control. Through its PFM control circuit, the device automatically adjusts the duty cycle based on load current, achieving low ripple, high efficiency, and a wide output voltage range. The integrated synchronous switches and low quiescent current significantly improve conversion efficiency and extend device operating life. Only three external components are required to boost a low input battery voltage to the desired operating voltage.
Applications
- Electronic equipment powered by 1~2 dry cell batteries
- Consumer electronics and portable devices
- Wireless devices and automotive electronics
- Chargers and handheld devices
Key features
- High efficiency: 94%
- Low startup voltage: 0.87V (condition: IOUT=1mA, VOUT=3.3V)
- Low quiescent current: 7.5uA
- Operating frequency: 320KHz (condition: VOUT=3.3V)
- Selectable output voltage range: 1.9V~5.0V
- Output accuracy: ±2%
- Output current: 350mA (condition: VIN=2.5V, VOUT=3.3V)
- Synchronous rectification
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME2188A36M3G#C236773MICRONE · SOT-23 | MICRONE | SOT-23 | 5,310 | ₹10.09 · 5,310 in stock | View |
 | ME2188A30XG#C2835777MICRONE · SOT-23 | MICRONE | SOT-23 | 2,760 | ₹9.64 · 2,760 in stock | View |
 | ME2188A28M3G#C236778MICRONE · SOT-23 | MICRONE | SOT-23 | 9,460 | ₹9.23 · 9,460 in stock | View |
