MICRONEDatasheet (PDF)

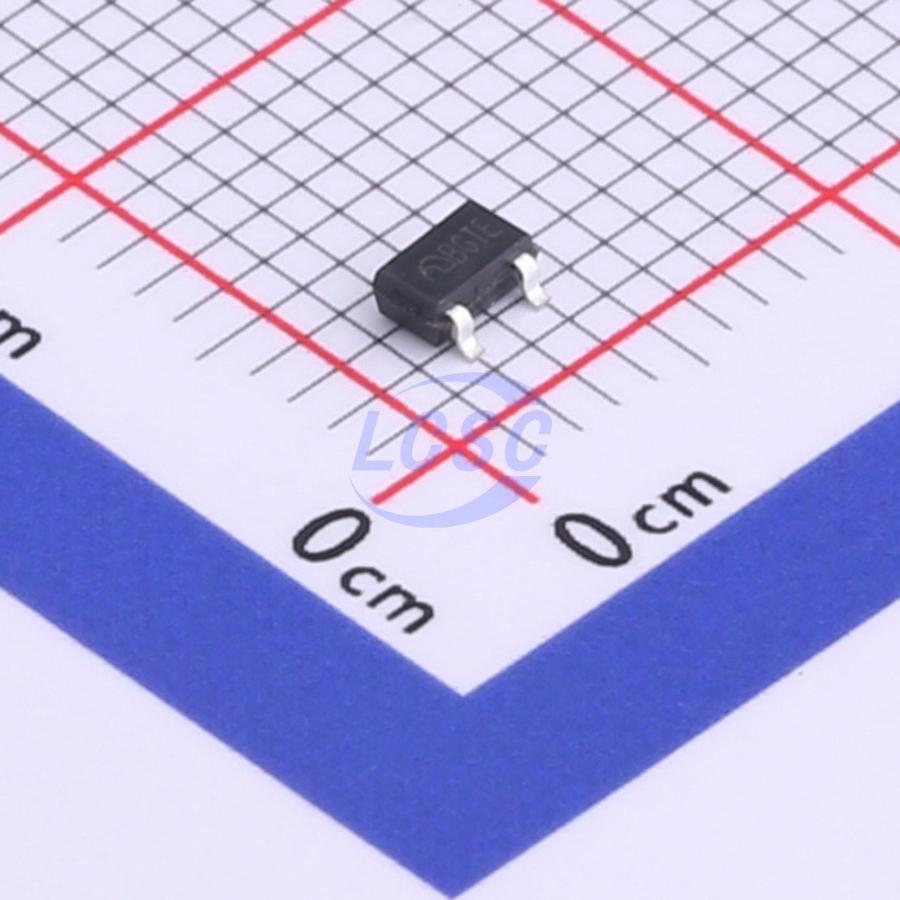

ME6119A33M3G
Linear Voltage Regulator IC Positive Fixed 1 Output 400mA SOT-23
SOT-23RoHSActive
400mA Adjustable Voltage High Speed LDO Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6119A33M3G
- Store part #
- C841405
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,390 in stock
#C841405
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.44 | ₹62.20 |
| 50+ | ₹9.86 | ₹493.00 |
| 150+ | ₹8.57 | ₹1,285.50 |
| 500+ | ₹7.61 | ₹3,805.00 |
| 3,000+ | ₹6.83 | ₹20,490.00 |
| 6,000+ | ₹6.44 | ₹38,640.00 |
| 9,000+ | ₹6.36 | ₹57,240.00 |
| 21,000+ | ₹6.31 | ₹1,32,510.00 |
5 × ₹12.44
₹62.20
excl. GST
₹73.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6119A33M3G
₹62.20 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 400mA
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
Applications
- Consumer and Industrial Equipment Point of Regulation
- Switching Power Supply Post Regulation
- Hard Drive Controllers
Key features
- The ME6119 series are highly accurate, low noise, LDO Voltage Regulators.
- On chip trimming adjusts the reference/output voltage to within ±2% accuracy.
- Internal protection features consist of output current limiting, safe operating area compensation, and thermal shutdown.
- The current limiter’s feedback circuit also operates as a short protect for the output current limiter and the output pin.
- The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption.
- The ME6119 series can operate with up to 18V input.
- Maximum Output Current: 400mA
- Dropout Voltage: 104mV@ IOUT = 100mA
- Operating Voltage Range: 2.5V~18V
- Highly Accuracy: ±2% Adjustable Output Voltage Option
- Standby Current: 60uA（TYP.）
- Line Regulation: 30mV（TYP.）
- Temperature Stability ≲0.5%
- Thermal Shutdown Protection: 164°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6118A33M3G#C427591MICRONE · SOT23-3 | MICRONE | SOT23-3 | 580 | ₹8.20 · 580 in stock | View |
 | ME6231A33M3G#C2765181MICRONE · SOT-23-3 | MICRONE | SOT-23-3 | 1,16,330 | ₹12.30 · 1,16,330 in stock | View |
 | ME6210A33M3G#C236680MICRONE · SOT23-3 | MICRONE | SOT23-3 | 17,630 | ₹8.82 · 17,630 in stock | View |
