MICRONEDatasheet (PDF)

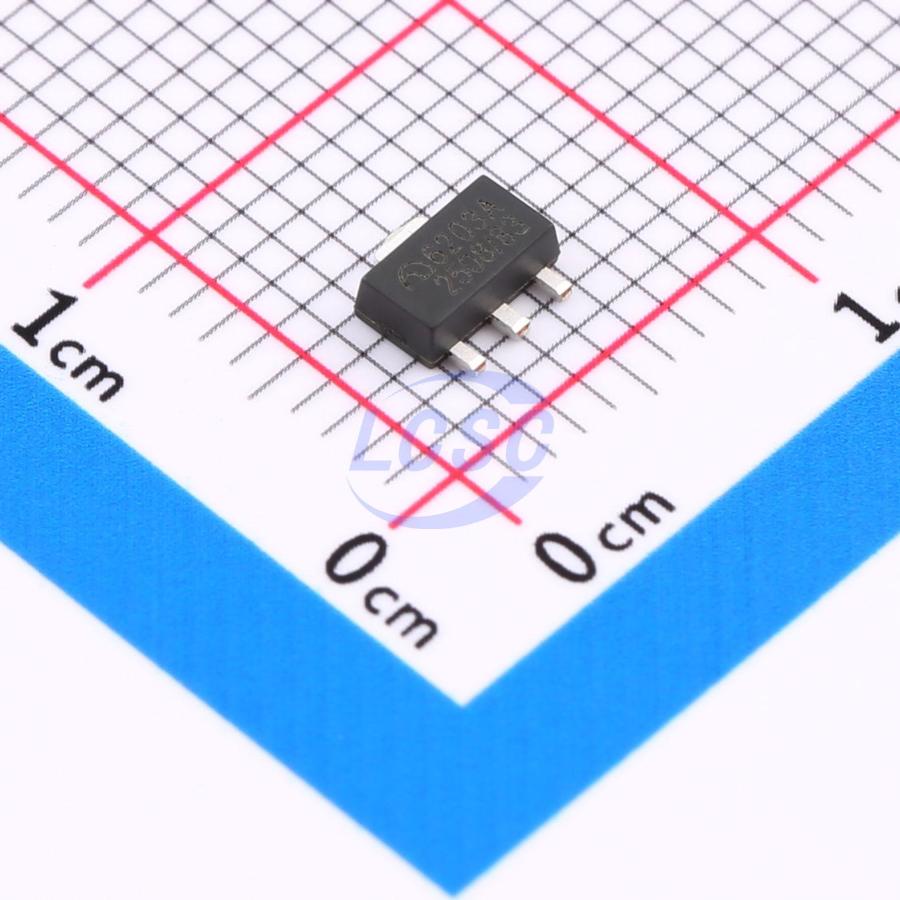

ME6203A33PG
3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
High Input Voltage LDO Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6203A33PG
- Store part #
- C81826
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,050 in stock
#C81826
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.75 | ₹68.75 |
| 50+ | ₹10.73 | ₹536.50 |
| 150+ | ₹9.22 | ₹1,383.00 |
| 1,000+ | ₹8.10 | ₹8,100.00 |
| 2,000+ | ₹7.18 | ₹14,360.00 |
| 5,000+ | ₹6.73 | ₹33,650.00 |
5 × ₹13.75
₹68.75
excl. GST
₹81.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ME6203A33PG
₹68.75 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+100℃
- Supply Current (Iq)
- 13uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.198 g
Overview
The ME6203 series are highly accurate, low noise, LDO Voltage Regulators that are manufactured using CMOS technology and the input voltage of ME6203 series is in Excess of 30 V. This series contains three fixed output voltages of 3.0V, 3.3V and 5.0V that have no minimum load requirement to maintain regulation. On chip trimming adjusts the output voltage to within ±2.5% accuracy. ME6203 consists of a output current limiting, a driver transistor, a precision reference voltage and an error amplifier. Output voltage is selectable in 100mV steps between 1.5 V ~ 6.0 V. The Devices are available in SOT-89(500mW).
Applications
- Consumer and Industrial Equipment Point of Regulation
- Portable AV equipment
- Battery powered equipment
- Cameras, video recorders
- Reference voltage
Key features
- Output Current in Excess of 100mA
- Operating Voltage Range: 7V ~ 30V
- Highly Accuracy: ±2.5%
- Small Standby Current: 13μA (TPY.)
- Ripple Rejection: 40dB @ 1KHz (ME6203A33)
- Line Regulation: 0.5% (TYP.)
- Temperature Stability: 0.5% (TYP.)
- Operational Temperature Range: 0°C ~ 100°C
- Small Packages: SOT-89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6239A33PG#C151880MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | 585 | ₹12.69 · 585 in stock | View |
 | ME6228A33PG#C427604MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | 2,020 | ₹9.33 · 2,020 in stock | View |
 | ME6233A33PG#C2983799MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | On request | Price on request | Quote |
