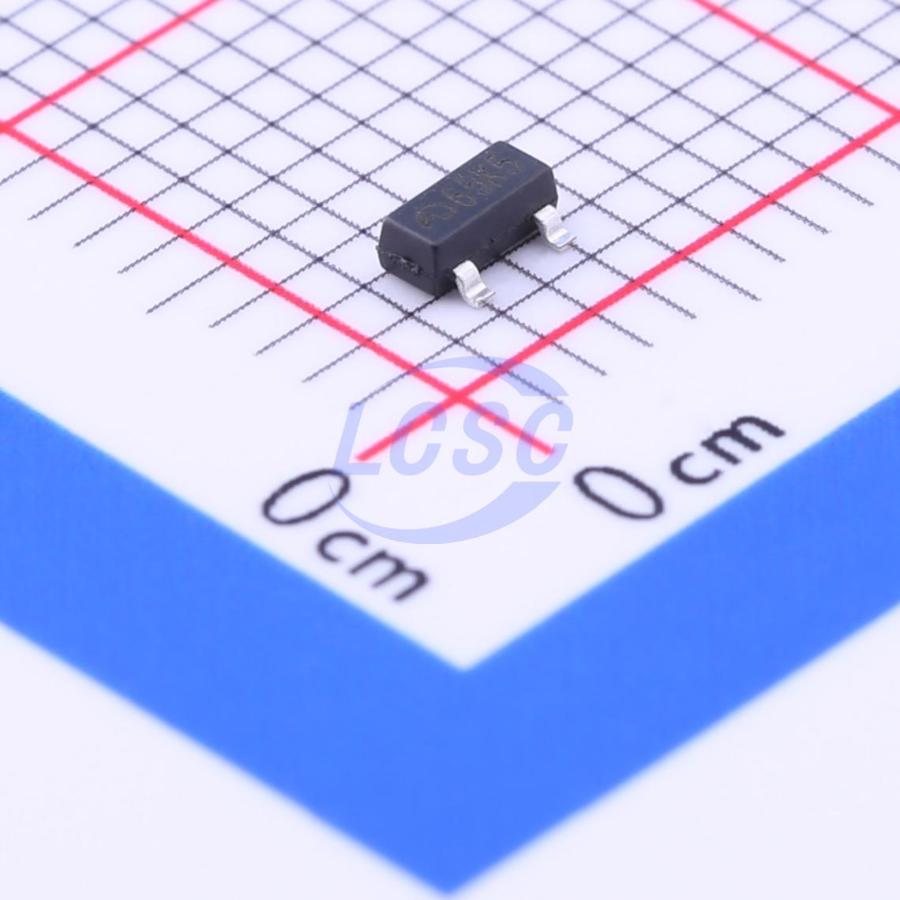

ME6206A18XG
1.8V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
Low power consumption, Low ESR Cap.Compatible Voltage Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6206A18XG
- Store part #
- C236707
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,220 in stock
#C236707
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.21 | ₹104.20 |
| 200+ | ₹4.05 | ₹810.00 |
| 600+ | ₹3.40 | ₹2,040.00 |
| 3,000+ | ₹2.80 | ₹8,400.00 |
| 9,000+ | ₹2.47 | ₹22,230.00 |
| 21,000+ | ₹2.29 | ₹48,090.00 |
20 × ₹5.21
₹104.20
excl. GST
₹122.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6206A18XG
₹104.20 for 20 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃@(Ta)
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Output Current
- 120mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.032 g
Overview
ME6206 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
Applications
- Mobile phones
- communication equipment
- Portable games
- Cameras, Video systems
- Reference voltage sources
- Battery powered equipment
Key features
- Maximum Output Current: 300mA (VIN = 4.3V, VOUT = 3.3V)
- Dropout Voltage: 200mV @ Iload = 100mA
- Input Voltage Range: up to 6.0V
- Highly Accuracy: ±2%
- Low Power Consumption: 8uA（TYP.）
- Excellent Input Stability
- Be available to regulator and reference voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6206A18M3G#C161344MICRONE · SOT-23 | MICRONE | SOT-23 | 3,430 | ₹6.65 · 3,430 in stock | View |
 | ME6216A18M3G#C2911291MICRONE · SOT-23 | MICRONE | SOT-23 | 1,970 | ₹7.36 · 1,970 in stock | View |
 | ME6209A18M3G#C236690MICRONE · SOT23-3 | MICRONE | SOT23-3 | 3,050 | ₹8.52 · 3,050 in stock | View |
 | ME6211A18M3G-N#C236677MICRONE · SOT-23 | MICRONE | SOT-23 | 1,530 | ₹9.45 · 1,530 in stock | View |
