MICRONEDatasheet (PDF)

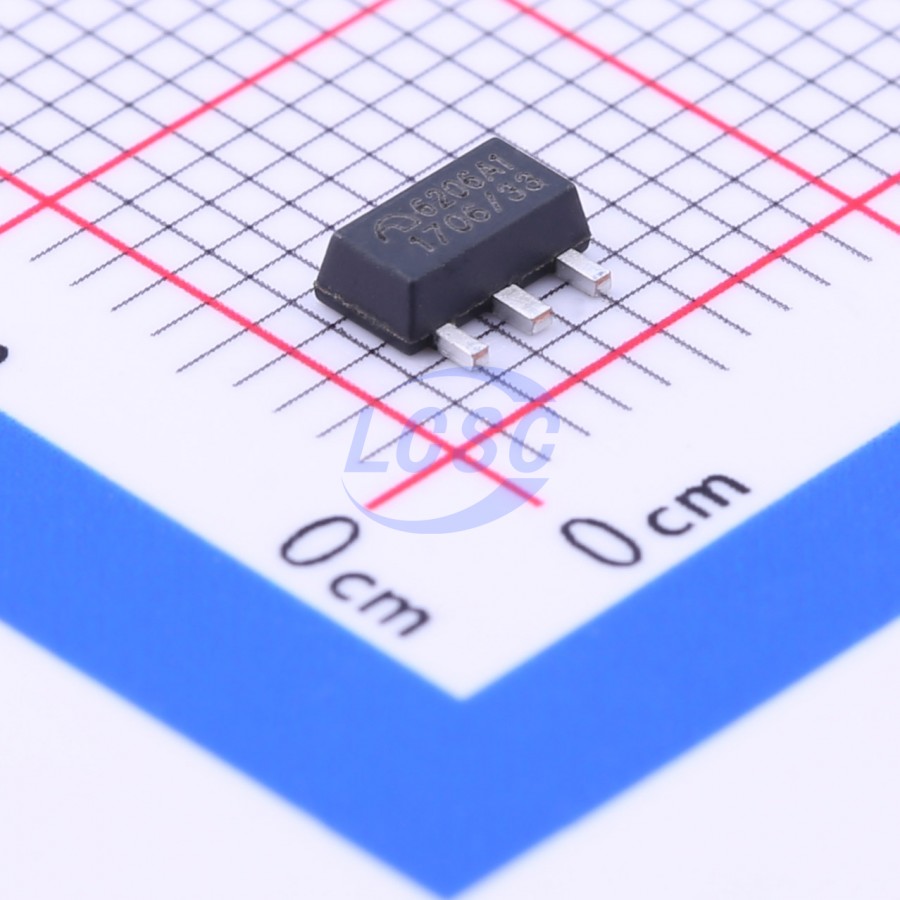

ME6206A33P1G
3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS CompliantActive
Low power consumption, Low ESR Cap.Compatible Voltage Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6206A33P1G
- Store part #
- C236700
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,700 in stock
#C236700
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.08 | ₹80.80 |
| 100+ | ₹6.40 | ₹640.00 |
| 300+ | ₹5.57 | ₹1,671.00 |
| 1,000+ | ₹4.95 | ₹4,950.00 |
| 5,000+ | ₹4.45 | ₹22,250.00 |
| 10,000+ | ₹4.19 | ₹41,900.00 |
| 20,000+ | ₹4.14 | ₹82,800.00 |
| 40,000+ | ₹4.10 | ₹1,64,000.00 |
10 × ₹8.08
₹80.80
excl. GST
₹95.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ME6206A33P1G
₹80.80 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃@(Ta)
- Supply Current (Iq)
- 9uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.149 g
Overview
ME6206 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
Applications
- Mobile phones
- communication equipment
- Portable games
- Cameras, Video systems
- Reference voltage sources
- Battery powered equipment
Key features
- Maximum Output Current: 300mA (VIN = 4.3V, VOUT = 3.3V)
- Dropout Voltage: 200mV @ Iload = 100mA
- Input Voltage Range: up to 6.0V
- Highly Accuracy: ±2%
- Low Power Consumption: 8uA（TYP.）
- Excellent Input Stability
- Be available to regulator and reference voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6206A33PG#C79022MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | 26,890 | ₹8.86 · 26,890 in stock | View |
 | ME6231A33PG#C2681684MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | 48,820 | ₹12.61 · 48,820 in stock | View |
 | ME6210A33PG#C85233MICRONE · SOT-89 | MICRONE | SOT-89 | 36,105 | ₹10.93 · 36,105 in stock | View |
 | ME6211A33PG-N#C236673MICRONE · SOT-89 | MICRONE | SOT-89 | 16,025 | ₹11.32 · 16,025 in stock | View |
 | ME6118A33PG#C236721MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | 28,870 | ₹13.49 · 28,870 in stock | View |
