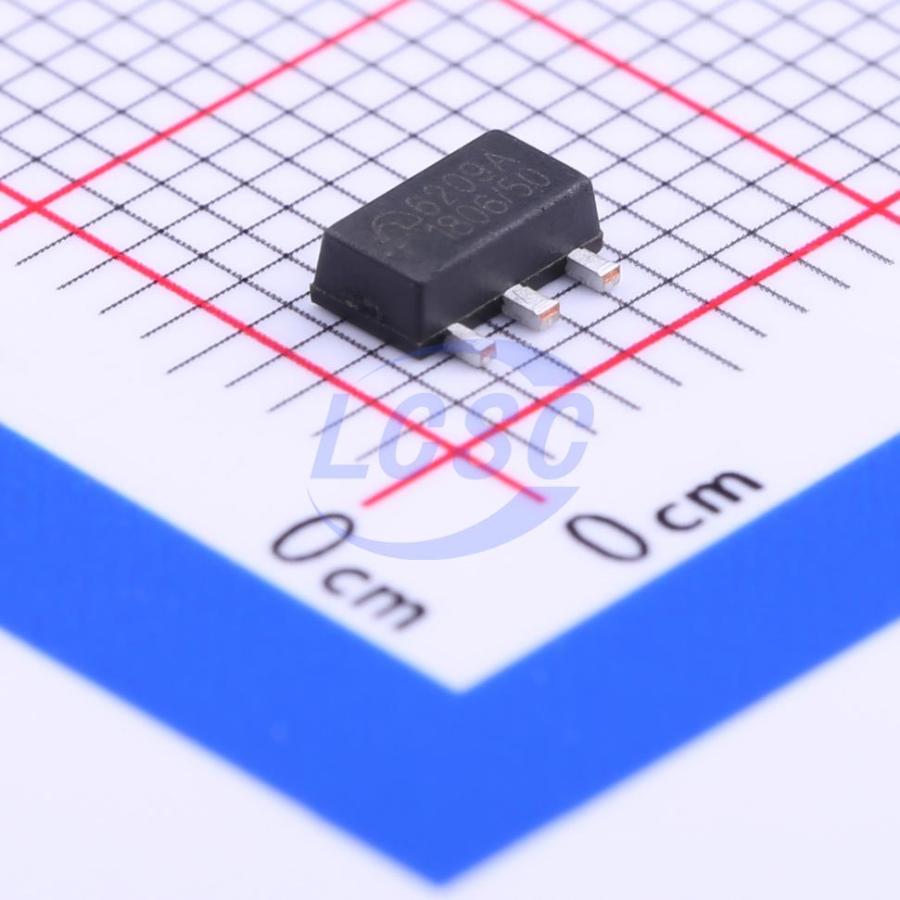

ME6209A50PG
5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
Low Power Consumption LDO
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6209A50PG
- Store part #
- C80224
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,400 in stock
#C80224
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.92 | ₹49.60 |
| 50+ | ₹7.78 | ₹389.00 |
| 150+ | ₹6.69 | ₹1,003.50 |
| 1,000+ | ₹5.72 | ₹5,720.00 |
| 2,000+ | ₹5.07 | ₹10,140.00 |
| 5,000+ | ₹4.75 | ₹23,750.00 |
5 × ₹9.92
₹49.60
excl. GST
₹58.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ME6209A50PG
₹49.60 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 18V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.174 g
Overview
The ME6209 series are a group of positive voltage output, three –pin regulator, that provide a high current even when the input/output Voltage differential is small. Low power consumption and high accuracy is achieved through CMOS technology. They allow input voltages as high as 18V.
Applications
- Cameras, video recorders
- Voltage regulator for microprocessor
- Voltage regulator for LAN cards
- Wireless communication equipment
- Audio/Video equipment
Key features
- Ultra low quiescent current: 3.0uA(typ)
- High input voltage (up to 18V)
- Low dropout voltage :80mV@Iout=40mA (V_OUT=3.3V)
- Output voltage accuracy: ±2%
- Maximum output current: 250mA （within max.power dissipation, V_OUT=3.3V）
- Low temperature coefficient Package：SOT23-3、TO-92、SOT89-3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6231A50PG#C2765182MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | 4,810 | ₹8.97 · 4,810 in stock | View |
 | ME6239A50PG#C610254MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | 7,545 | ₹13.42 · 7,545 in stock | View |
 | ME6210A50PG#C82940MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | 55,380 | ₹10.08 · 55,380 in stock | View |
 | ME6118A50PG#C2835802MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | 1,760 | ₹11.43 · 1,760 in stock | View |
 | ME6119A50PG#C83486MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | 250 | ₹12.15 · 250 in stock | View |
