MICRONEDatasheet (PDF)

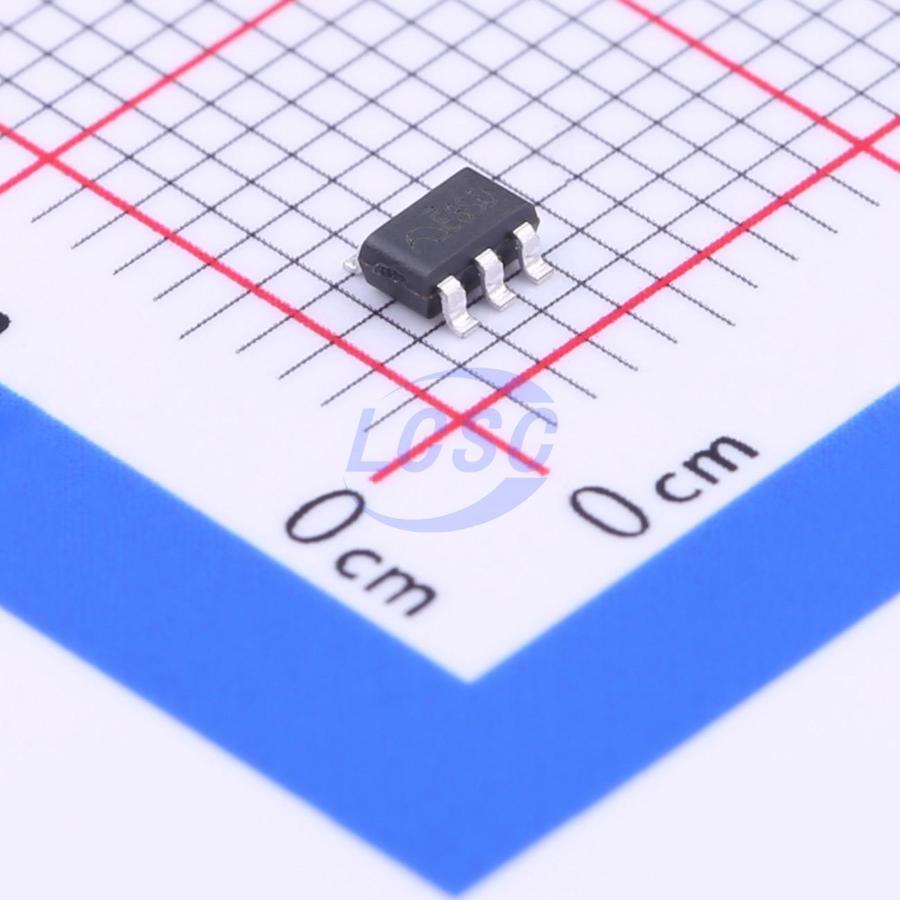

ME6215C33M5G
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
Low power consumption, Low dropout voltage, With CE function
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6215C33M5G
- Store part #
- C84119
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
53,490 in stock
#C84119
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.12 | ₹60.60 |
| 50+ | ₹9.96 | ₹498.00 |
| 150+ | ₹8.89 | ₹1,333.50 |
| 500+ | ₹8.08 | ₹4,040.00 |
| 3,000+ | ₹7.22 | ₹21,660.00 |
| 6,000+ | ₹6.89 | ₹41,340.00 |
5 × ₹12.12
₹60.60
excl. GST
₹71.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6215C33M5G
₹60.60 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 6uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 300mA
- Features
- Enable control;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
ME6215 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin. The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption. The ME6215 series can operate with up to 18V input.
Applications
- Battery powered equipment
- Communication tools
- Mobile phones
- Portable games
- Portable AV systems
- Cameras, Video systems
- Reference voltage sources
Key features
- Highly Accurate：±2%
- Output voltage range：1.5V~5.0V
- Low power consumption：6uA(TYP.)
- Large output current：300mA (ΔVIN = 3.8V, VOUT = 2.8V)
- Input voltage: up to 18V
- Dropout voltage：0.16V at 100mA and 0.32V at 200mA
- CE Pin Function : Active High
- Short-circuit Current：25mA(TYP.)
- Excellent Input Stability
- Be available to regulator and reference voltage
