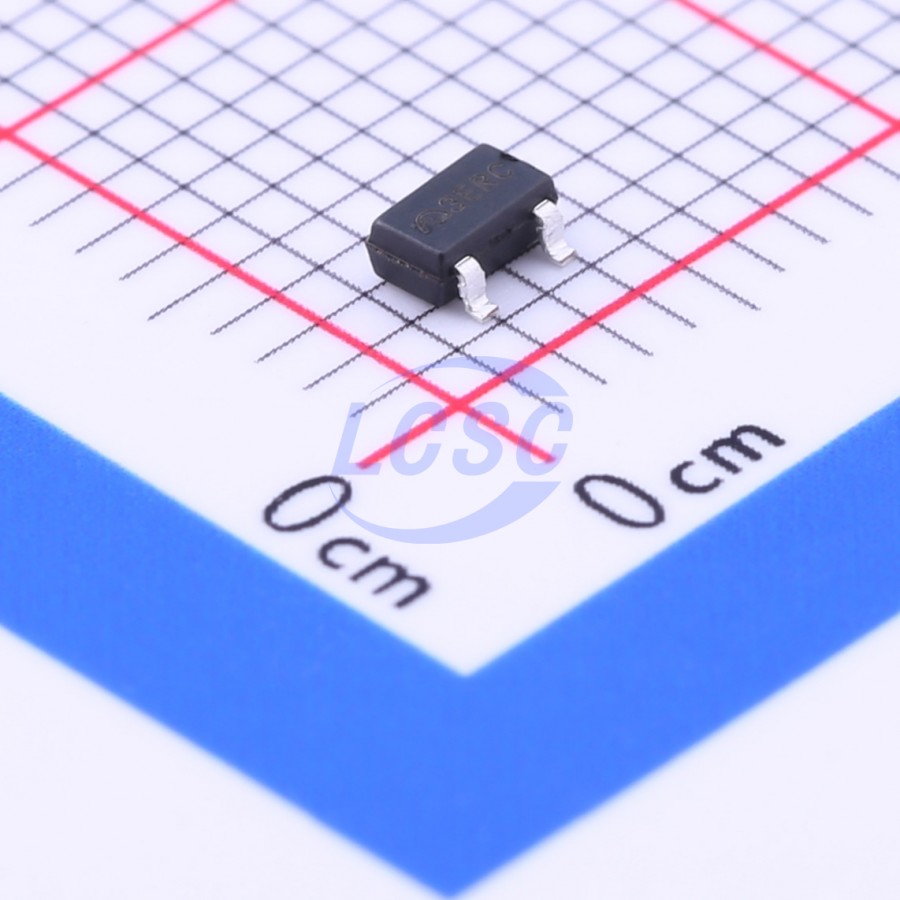

ME6216A30M3G
3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
Positive voltage regulator compatible with low-power, low-ESR capacitors
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6216A30M3G
- Store part #
- C236656
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,230 in stock
#C236656
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.24 | ₹62.40 |
| 100+ | ₹4.93 | ₹493.00 |
| 300+ | ₹4.29 | ₹1,287.00 |
| 3,000+ | ₹3.80 | ₹11,400.00 |
| 6,000+ | ₹3.40 | ₹20,400.00 |
| 9,000+ | ₹3.20 | ₹28,800.00 |
10 × ₹6.24
₹62.40
excl. GST
₹73.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6216A30M3G
₹62.40 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃@(Ta)
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
ME6216 series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS technologies. The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
Applications
- Communication tools
- Mobile phones
- Portable games
- Portable AV systems
- Cameras, Video systems
- Reference voltage sources
Key features
- Output voltage range: 1.0V ~ 5.0V
- Input voltage: up to 6V
- Dropout Voltage: 110mV @ IOUT = 100mA, 240mV @ IOUT = 200mA
- Highly Accuracy: ±1%
- Low power consumption: 6uA (TYP.)
- Large output current: 300mA (VIN = 4.3V, VOUT = 3.3V)
- Excellent Input Stability
- Be available to regulator and reference voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6216A30XG#C2835774MICRONE · SOT-23 | MICRONE | SOT-23 | 480 | ₹5.15 · 480 in stock | View |
 | ME6232A30M3G#C50387246MICRONE · SOT23-3 | MICRONE | SOT23-3 | 1,920 | ₹4.41 · 1,920 in stock | View |
 | ME6211A30M3G-N#C236675MICRONE · SOT-23 | MICRONE | SOT-23 | 1,210 | ₹7.24 · 1,210 in stock | View |
 | ME6206A30XG#C236701MICRONE · SOT-23 | MICRONE | SOT-23 | 13,340 | ₹5.32 · 13,340 in stock | View |
 | ME6210A30M3G#C116985MICRONE · SOT-23 | MICRONE | SOT-23 | 6,280 | ₹8.73 · 6,280 in stock | View |
