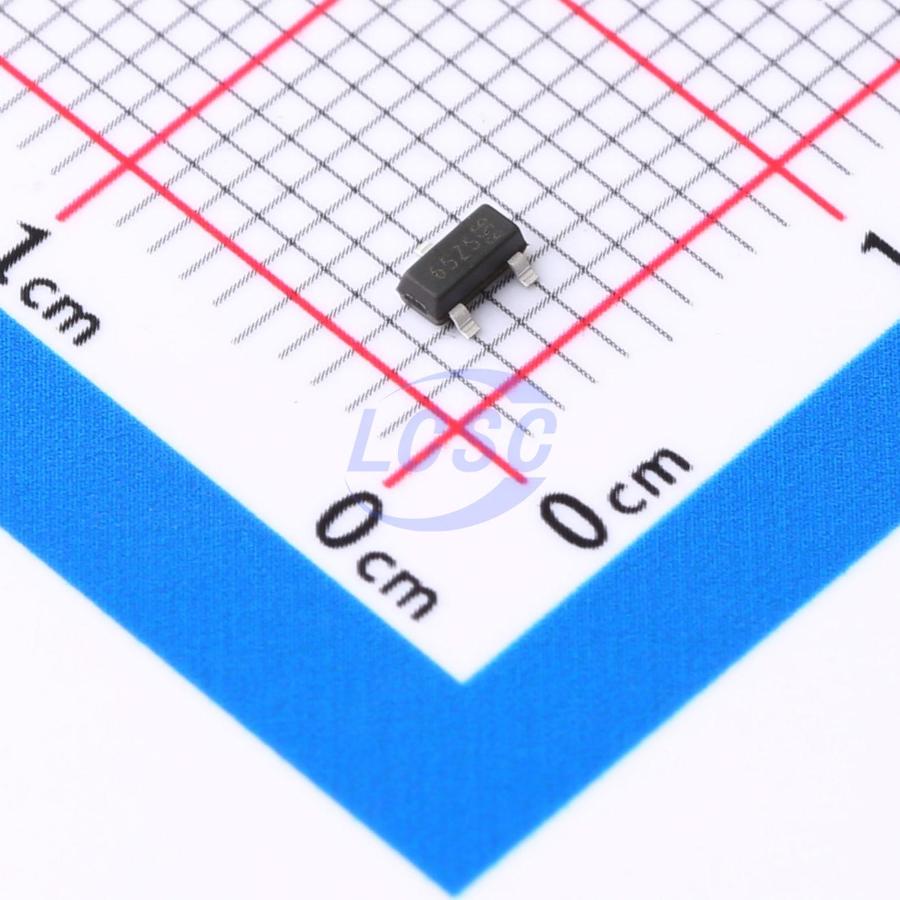

MG6206K3B-30
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23
SOT-23ROHS CompliantActive
IC REG LINEAR 3V 300mA SOT-23
- Manufacturer
- Megain
- Manufacturer part #
- MG6206K3B-30
- Store part #
- C48678135
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C48678135
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.75 | ₹87.50 |
| 500+ | ₹1.36 | ₹680.00 |
| 3,000+ | ₹1.15 | ₹3,450.00 |
| 6,000+ | ₹1.02 | ₹6,120.00 |
| 24,000+ | ₹0.9129 | ₹21,909.60 |
| 51,000+ | ₹0.8467 | ₹43,181.70 |
50 × ₹1.75
₹87.50
excl. GST
₹103.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MG6206K3B-30
₹87.50 for 50 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.042 g
Overview
MG6206 is a CMOS voltage regulator featuring high ripple rejection, low quiescent current, low dropout voltage, and short-circuit protection. With a quiescent current as low as 2.5μA at no load, it delivers 300mA output current at minimal input-to-output voltage differential while maintaining excellent regulation performance, making it ideal for battery-powered products and small home appliances. The device retains all common LDO features, including a low-dropout PMOS pass element, short-circuit protection, and thermal shutdown.
Applications
- Battery-powered systems
- Small appliances
- Wireless modules
- Sensor modules
Key features
- Output voltage accuracy ±2%
- VIN range up to 6V
- Ultra-low quiescent current 2.5μA
- 230mV dropout voltage at 100mA output current (VOUT=3.3V, 3V)
- Internal thermal overload protection
- Internal current limiting protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MG6228T3B-30#C48678119Megain · SOT-23-3 | Megain | SOT-23-3 | 1,240 | ₹4.47 · 1,240 in stock | View |
 | MG6226T3B-30#C48678134Megain · SOT-23-3 | Megain | SOT-23-3 | 480 | ₹3.39 · 480 in stock | View |
