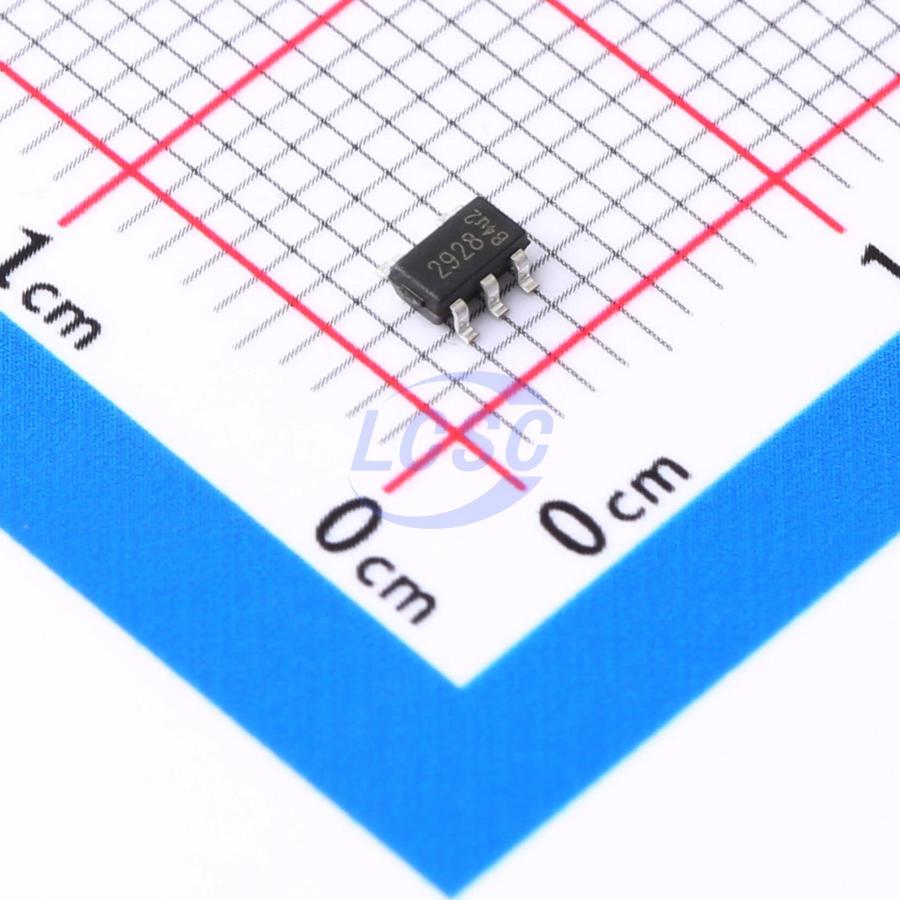

MG6229T5-28
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5
SOT-23-5ROHS CompliantActive
IC REG LINEAR 2.8V 300mA SOT-23-5
- Manufacturer
- Megain
- Manufacturer part #
- MG6229T5-28
- Store part #
- C48678132
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,220 in stock
#C48678132
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.42 | ₹88.40 |
| 200+ | ₹3.44 | ₹688.00 |
| 600+ | ₹2.90 | ₹1,740.00 |
| 3,000+ | ₹2.57 | ₹7,710.00 |
| 9,000+ | ₹2.29 | ₹20,610.00 |
| 21,000+ | ₹2.14 | ₹44,940.00 |
20 × ₹4.42
₹88.40
excl. GST
₹104.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MG6229T5-28
₹88.40 for 20 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 500nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control;Output discharge;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.047 g
Overview
This regulator features low dropout voltage, high power supply rejection ratio, and ultra-low standby current. Under no-load conditions, the quiescent current is as low as 0.5uA, making it ideal for MCU systems, especially portable and other battery-powered always-on applications. The device integrates common functions including a low-dropout PMOS pass element, short-circuit protection, and thermal shutdown. It supports a maximum operating voltage of 6V, output voltage tolerance of ±2%, and selectable output voltage down to 1.2V.
Applications
- Portable battery-powered devices
- Ultra-low-power microcontrollers
- Laptop computers
Key features
- Input voltage range up to 6V
- Available output voltage range: 1.2V to 5V
- Output voltage tolerance: ±2%
- Maximum output current: 300 mA
- Ultra-low quiescent current (IQ = 0.5uA)
- Dropout voltage: 350mV at IOUT = 300mA
- Integrated thermal overload protection
- Integrated short-circuit current limiting
- Compatible with low-ESR ceramic capacitors
- Active-high enable pin with automatic output capacitor discharge on low shutdown
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MG6228T5-28#C54279895Megain · SOT-23-5 | Megain | SOT-23-5 | 2,600 | ₹3.93 · 2,600 in stock | View |
 | MG6226T5-28#C42411003Megain · SOT-23-5 | Megain | SOT-23-5 | 1,080 | ₹3.44 · 1,080 in stock | View |
