MegainDatasheet (PDF)

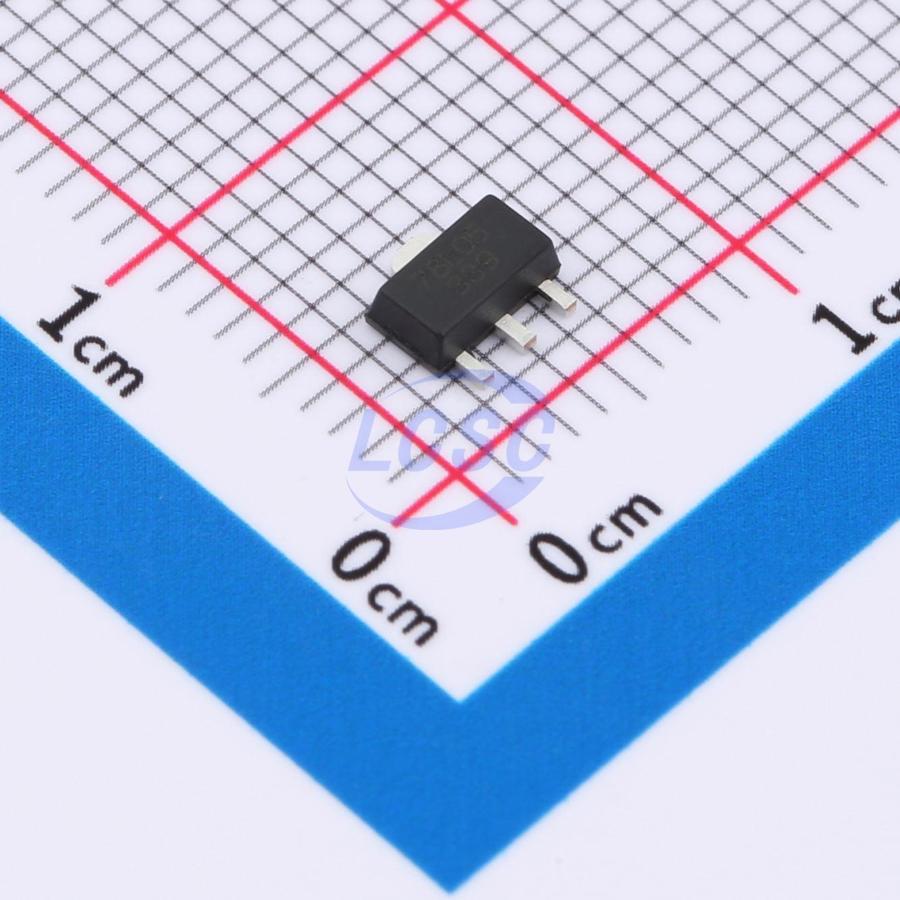

MG78L05N3
Linear Voltage Regulator IC Positive Fixed 1 Output 120mA SOT-89-3
SOT-89-3ROHS CompliantActive
IC REG LINEAR 5V 120mA SOT-89-3
- Manufacturer
- Megain
- Manufacturer part #
- MG78L05N3
- Store part #
- C22396243
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,47,960 in stock
#C22396243
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.56 | ₹71.20 |
| 200+ | ₹2.79 | ₹558.00 |
| 1,000+ | ₹2.35 | ₹2,350.00 |
| 2,000+ | ₹2.10 | ₹4,200.00 |
| 10,000+ | ₹1.88 | ₹18,800.00 |
| 20,000+ | ₹1.76 | ₹35,200.00 |
20 × ₹3.56
₹71.20
excl. GST
₹84.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
MG78L05N3
₹71.20 for 20 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 300uA
- Output Configuration
- Positive
- Output Current
- 120mA
- Operating Voltage
- 30V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.161 g
Overview
The MG78L05 is a three-terminal integrated voltage regulator with a fixed 5V output, suitable for a wide range of applications. Its excellent internal current limiting and thermal shutdown features make it particularly well-suited for handling overload conditions. When used as a replacement for conventional Zener diode-resistor combinations, it effectively improves output impedance while significantly reducing quiescent current. With adequate heat dissipation, the device can deliver 120mA output current. The built-in current limiting function constrains peak output current within a safe range and provides safe operating area protection for the output transistor to limit internal power dissipation. Should internal power dissipation exceed the capacity of the heatsink, the thermal shutdown circuit prevents the IC from overheating.
Applications
- New Energy
- Security
- Mobile Terminal
- Electric Vehicle
- LED Lighting
Key features
- Output voltage accuracy ±4%
- VIN input voltage range up to 30V
- Maximum output current 120mA
- Output transistor safe operating area protection
- Internal thermal overload protection
- Internal current limiting protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MG78L05AN3#C22396245Megain · SOT-89-3 | Megain | SOT-89-3 | 360 | ₹3.53 · 360 in stock | View |
 | MG78M05N3#C50407964Megain · SOT-89-3 | Megain | SOT-89-3 | 15,940 | ₹4.74 · 15,940 in stock | View |
 | MG7550N3#C41380429Megain · SOT-89-3 | Megain | SOT-89-3 | 3,360 | ₹5.11 · 3,360 in stock | View |
| MG7350N3#C54279903Megain · SOT-89-3 | Megain | SOT-89-3 | 1,460 | ₹4.96 · 1,460 in stock | View | |
