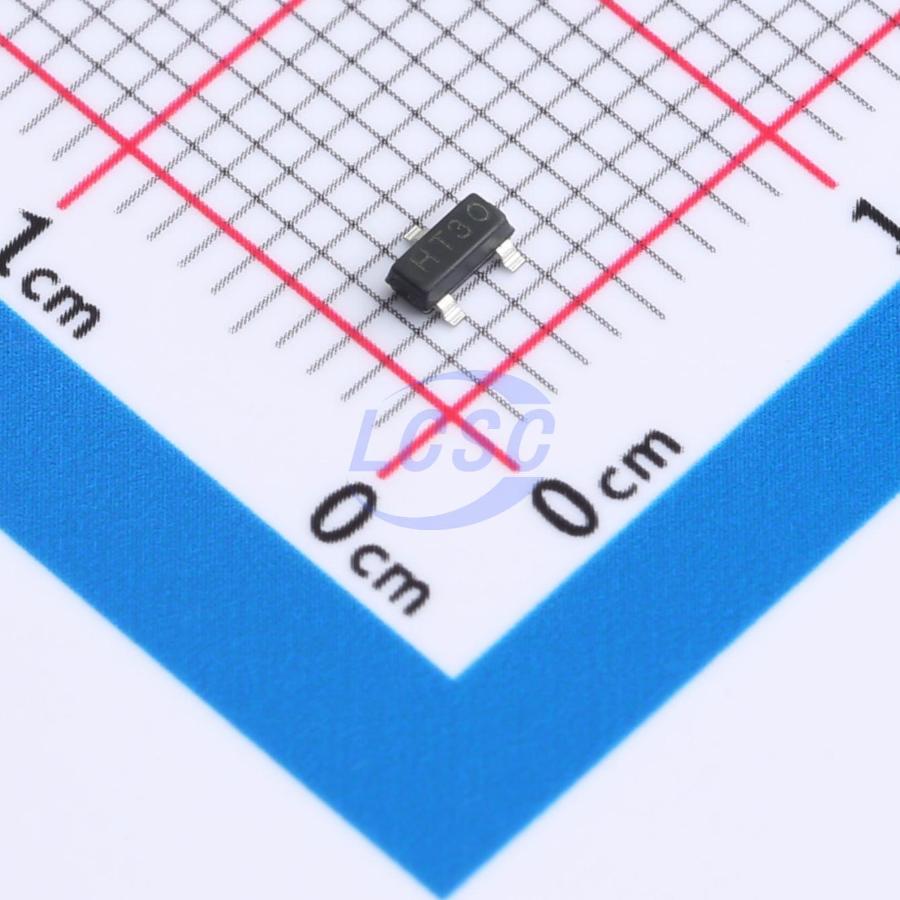

MHT7130S
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23
SOT-23RoHSActive
Low-dropout linear regulator using CMOS technology
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MHT7130S
- Store part #
- C42403110
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,200 in stock
#C42403110
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.72 | ₹94.40 |
| 200+ | ₹3.68 | ₹736.00 |
| 600+ | ₹3.08 | ₹1,848.00 |
| 3,000+ | ₹2.74 | ₹8,220.00 |
| 9,000+ | ₹2.43 | ₹21,870.00 |
| 21,000+ | ₹2.26 | ₹47,460.00 |
20 × ₹4.72
₹94.40
excl. GST
₹111.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MHT7130S
₹94.40 for 20 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 24V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.039 g
Overview
MHT71XXS is a low dropout linear regulator fabricated using CMOS technology. It supports a maximum input voltage of 30V, offers several fixed output voltage options ranging from 2.8V to 9.0V, and features low quiescent current consumption. It is widely used in power supply applications for audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input-output voltage differential
- Low temperature drift coefficient
- Maximum operating voltage up to 24V
- Quiescent current 1.5μA
- Output voltage accuracy: ±2%
- High output current: 100mA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MHT7530S#C42403116MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 140 | ₹4.63 · 140 in stock | View |
 | HT7530-1#C5379077MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 2,850 | ₹7.62 · 2,850 in stock | View |
 | HT7130-1#C6454834MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 780 | ₹7.08 · 780 in stock | View |
 | HT7330-1-MS#C7434221MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 1,130 | ₹8.93 · 1,130 in stock | View |
 | XC6202P302MR-MS#C22462575MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 925 | ₹22.54 · 925 in stock | View |
