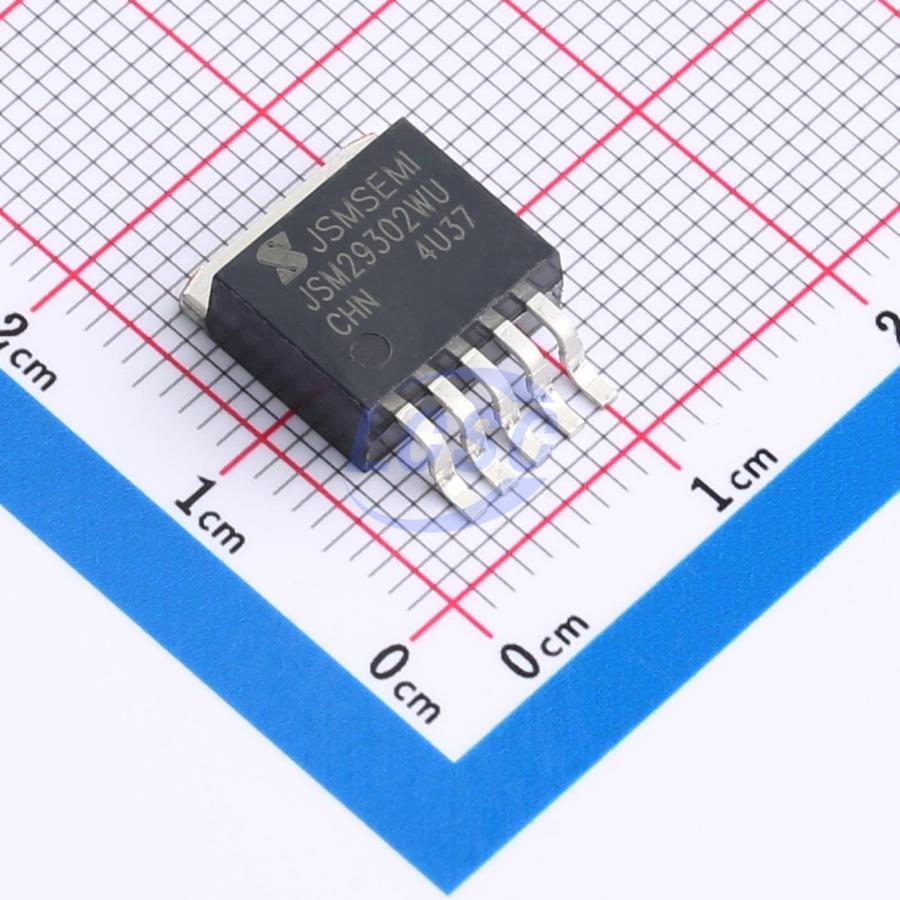

MIC29302WU-JSM
Linear Voltage Regulator IC Positive Adjustable 1 Output 3A TO-263-5L
TO-263-5LROHS CompliantActive
High-Current Low-Dropout Adjustable Regulator
- Manufacturer
- JSMSEMI
- Manufacturer part #
- MIC29302WU-JSM
- Store part #
- C41421784
- Package / case
- TO-263-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,065 in stock
#C41421784
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.17 | ₹105.17 |
| 10+ | ₹84.13 | ₹841.30 |
| 30+ | ₹73.51 | ₹2,205.30 |
| 100+ | ₹63.09 | ₹6,309.00 |
| 500+ | ₹59.42 | ₹29,710.00 |
| 1,000+ | ₹56.16 | ₹56,160.00 |
1 × ₹105.17
₹105.17
excl. GST
₹124.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 500 per reel
MIC29302WU-JSM
₹105.17 for 1 + GST
Specifications
- Output Voltage
- 1.25V~26V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 35mA
- Output Configuration
- Positive
- Output Current
- 3A
- Operating Voltage
- 26V
- Features
- Enable control;Over Current Protection;Reverse polarity voltage protection;Thermal shutdown;Input overvoltage protection;Reverse-polarity current protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.877 g
Overview
The MIC29302 is a high-current, high-accuracy, low-dropout voltage regulator. This regulator features a dropout voltage of 300mV to 370mV (at full load) and extremely low ground current. Designed for high-current loads, the device is also suitable for low-current systems with stringent dropout requirements, where its minimal dropout voltage and ground current are key characteristics. The MIC29302 provides comprehensive protection against overcurrent faults, input polarity reversal, pin reversal, over-temperature operation, and positive/negative transient voltage spikes. If ON/OFF control is not required, the ENABLE pin can be connected to VIN. The device is available in a TO263-5L package.
Applications
- Battery-powered devices
- High-efficiency "green" computer systems
- Automotive electronics
- High-efficiency linear power supplies
- High-efficiency post-regulator for switching power supplies
Key features
- 3A high current capability
- 350mV low dropout voltage at full load
- Low ground current
- 1% accuracy tolerance guaranteed
- Ultra-fast transient response
- Reverse battery and load dump protection
- Zero current shutdown mode
- Industry-leading performance specs for light loads
- Adjustable version available
