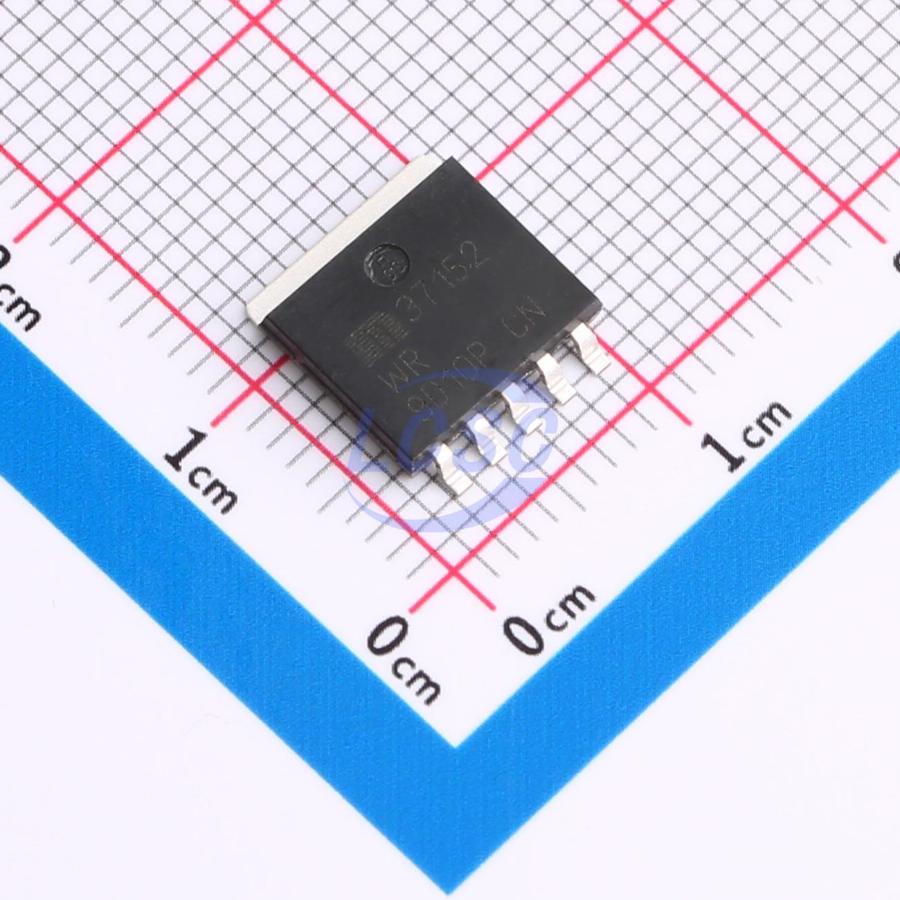

MICROCHIP

MIC37152WR

1.25V~5.5V Positive Adjustable SPAK-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SPAK-5ROHS3 CompliantActive

1.5A, Low Voltage μCap LDO Regulators

Manufacturer: MICROCHIP
Manufacturer part #: MIC37152WR
Store part #: C641484
Package / case: SPAK-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

20 in stock

#C641484

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹552.14	₹552.14
10+	₹525.69	₹5,256.90
30+	₹510.11	₹15,303.30
100+	₹494.13	₹49,413.00
500+	₹486.94	₹2,43,470.00
1,000+	₹483.66	₹4,83,660.00

Quantity (min 1)

1 × ₹552.14

₹552.14

excl. GST

₹651.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 48 per tube

MIC37152WR

₹552.14 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.25V~5.5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Output Configuration: Positive
Operating Voltage: 6V
Output Current: 1.5A
Features: Enable control;Thermal shutdown;Over Current Protection;Reverse-polarity current protection
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 48 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.43 g

Overview

The MIC37150, MIC37151, MIC37152, and MIC37153 are 1.5A low-dropout linear voltage regulators that provide low voltage and high current output with a minimum of external components. They offer high precision, ultra-low dropout (500 mV over temperature), and low ground current. The MIC37150/1/2/3 operate from an input of 2.25V to 6.0V. They are designed to drive digital circuits that require low voltage at high currents (i.e., PLDs, DSPs, microcontrollers, etc.). They are available in fixed and adjustable output voltages. Fixed voltages include 1.5V, 1.65V, 1.8V, 2.5V, and 3.3V. The adjustable version is capable of supplying output voltages from 1.24V to 5.5V. Features of the MIC37150/1/2/3 LDOs include thermal and current-limit protection, reverse current protection, and reverse battery protection. Logic enable and error flag pins are available. Junction temperature range of the MIC37150/1/2/3 is from -40℃ to +125℃.

Applications

LDO Linear Regulator for Low-Voltage Digital IC
PC Add-In Cards
High Efficiency Linear Power Supplies
SMPS Post Regulator
Battery Charger

Key features

1.5A Minimum Guaranteed Output Current
500 mV Maximum Dropout Voltage over Temperature - Ideal for 3.0V to 2.5V Conversion - Ideal for 2.5V to 1.8V, 1.65V, or 1.5V Conversion
Stable with Ceramic or Tantalum Capacitor
Wide Input Voltage Range - V_IN: 2.25V to 6.0V
±1.0% Initial Output Tolerance
Fixed and Adjustable Output Voltages
Excellent Line and Load Regulation Specifications
Logic Controlled Shutdown
Thermal Shutdown and Current-Limit Protection
Reverse-Leakage Protection
Low Profile 3- or 5-Lead S-Pak Packages or 8-Lead ePad SOIC
