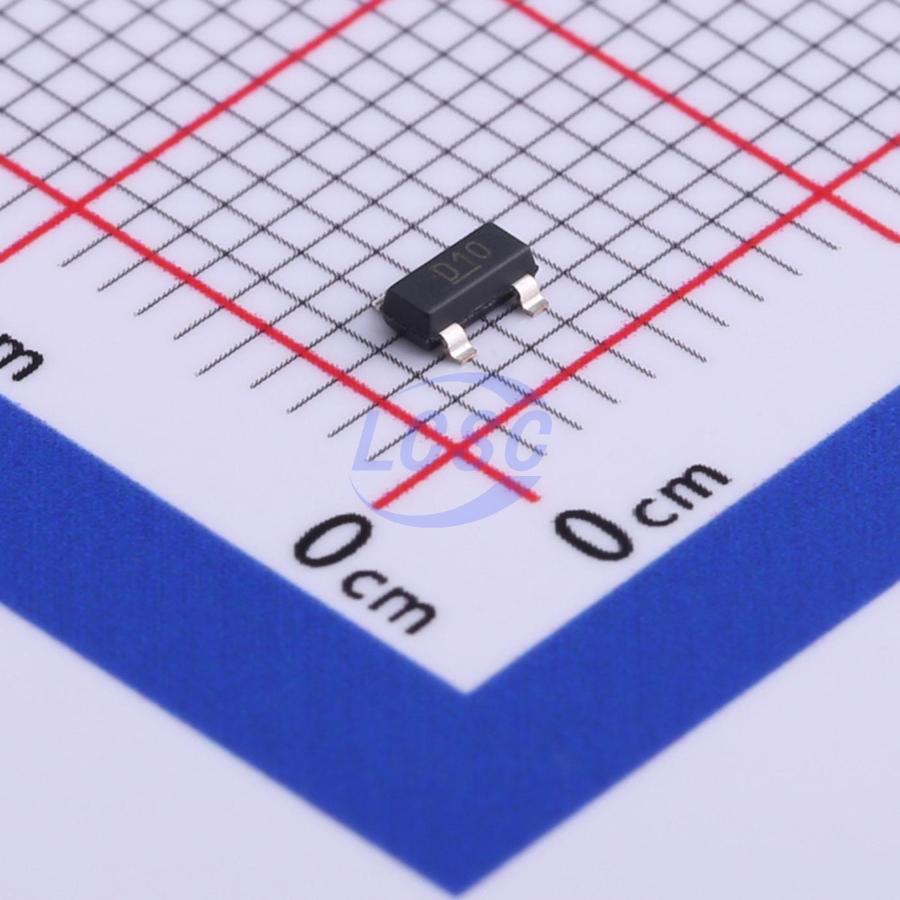

MIC4416YM4-TR

The MIC4416 and MIC4417 IttyBitty low-side MOSFET drivers are designed to switch an N-channel enhancement-type MOSFET from a TTL-compatible control signal in low-side switch applications. The MIC4416 is non-inverting and the MIC4417 is inverting. These drivers feature short delays and high peak current to produce precise edges and rapid rise and fall times. Their tiny 4-lead SOT-143 package uses minimal space. The MIC4416/7 are powered from a +4.5V to +18 supply voltage. The on-state drive output voltage is approximately equal to the supply voltage (no internal regulators or clamps). High supply voltages, such as 10V, are appropriate for use with standard N-channel MOSFETs. Low supply voltages, such as 5V, are appropriate for use with logic-level N-channel MOSFETs. In a low-side configuration, the drive can control a MOSFET that switches any voltage up to the rating of the MOSFET. The MIC4416/7 are available in the SOT-143 package and are rated for the -40°C to +85°C ambient temperature range.

Applications

• Battery Conservation
• Solenoid and Motion Control
• Lamp Control
• Switch-Mode Power Supplies

Key features

• +4.5V to +18V Operation
• Low Steady-State Supply Current - 50μA Typical, Control Input Low - 370μA Typical, Control Input High
• 1.2A Nominal Peak Output - 3.5Ω Typical Output Resistance at 18V Supply - 7.8Ω Typical Output Resistance at 5V Supply
• 25mV Maximum Output Offset from Supply or Ground
• Operates in Low-Side Switch Circuits
• TTL-Compatible Input Withstands –20V
• ESD Protection
• Inverting and Non-Inverting Versions
