MICROCHIPDatasheet (PDF)

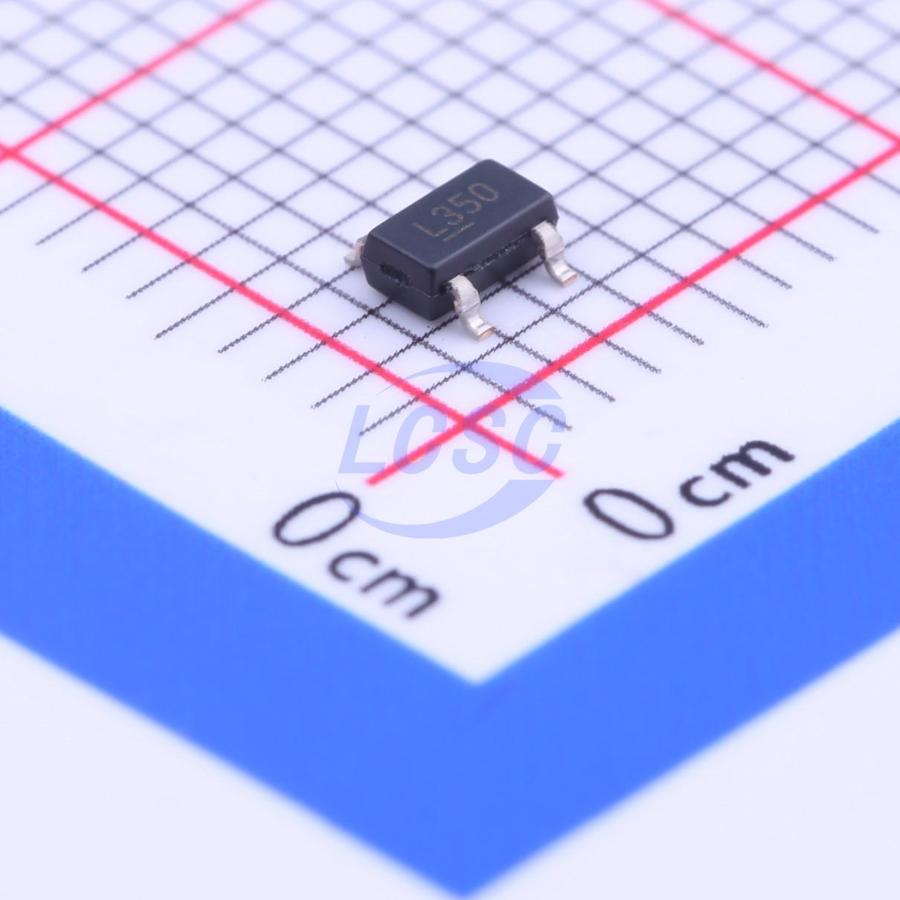

MIC5233-5.0YM5-TR
5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
High Input Voltage Low IQ uCap LDO Regulator
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MIC5233-5.0YM5-TR
- Store part #
- C219988
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,141 in stock
#C219988
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹140.36 | ₹140.36 |
| 10+ | ₹113.41 | ₹1,134.10 |
| 30+ | ₹99.94 | ₹2,998.20 |
| 100+ | ₹86.70 | ₹8,670.00 |
| 500+ | ₹78.65 | ₹39,325.00 |
| 1,000+ | ₹74.52 | ₹74,520.00 |
1 × ₹140.36
₹140.36
excl. GST
₹165.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MIC5233-5.0YM5-TR
₹140.36 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 18uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 36V
- Features
- Enable control;Thermal shutdown;Over Current Protection;Reverse polarity voltage protection;Reverse-polarity current protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.026 g
Overview
The MIC5233 is a 100mA highly accurate, low dropout regulator with high input voltage and ultra-low ground current. This combination of high voltage and low ground current makes the MIC5233 ideal for multi-cell Li-Ion battery systems. A µCap LDO design, the MIC5233 is stable with either ceramic or tantalum output capacitor. It only requires a 2.2µF capacitor for stability. Features of the MIC5233 include enable input, thermalshutdown, current-limit, reverse-battery protection, and reverse-leakage protection. Available in fixed and adjustable output voltage versions, the MIC5233 is offered in the IttyBitty SOT-23-5 and SOT223-3 package with a junction temperature range of -40°C to +125°C.
Applications
- Keep-alive supply in notebook and portable computers
- USB power supply
- Logic supply for high-voltage batteries
- Automotive electronics
- Battery-powered systems
- 3 − 4 cell Li-Ion battery input range
Key features
- Wide input voltage range: 2.3V to 36V
- Ultra-low ground current: 18µA
- Low dropout voltage of 270mV at 100mA
- High output accuracy of ±2.0% over temperature
- µCap: stable with ceramic or tantalum capacitors
- Excellent line and load regulation specifications
- Zero shutdown current
- Reverse-battery protection
- Reverse-leakage protection
- Thermal-shutdown and current-limit protection
- IttyBitty SOT-23-5 and SOT-223-3 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS7B6950DBVR-TP#C5371017TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 370 | ₹27.98 · 370 in stock | View |
 | MIC3490-5.0YM5-TR#C625791MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 10 | ₹366.31 · 10 in stock | View |
 | TPS7B6950QDBVRQ1#C132202TI · SOT-23-5 | TI | SOT-23-5 | 15,990 | ₹41.79 · 15,990 in stock | View |
 | GM7350YA#C52023752GATEMODE · SOT-23-5NC | GATEMODE | SOT-23-5NC | 1,980 | ₹9.22 · 1,980 in stock | View |
| S-1212B50-M5T1U#C6996678ABLIC · SOT-23-5 | ABLIC | SOT-23-5 | 15 | ₹46.54 · 15 in stock | View | |
