TIDatasheet (PDF)

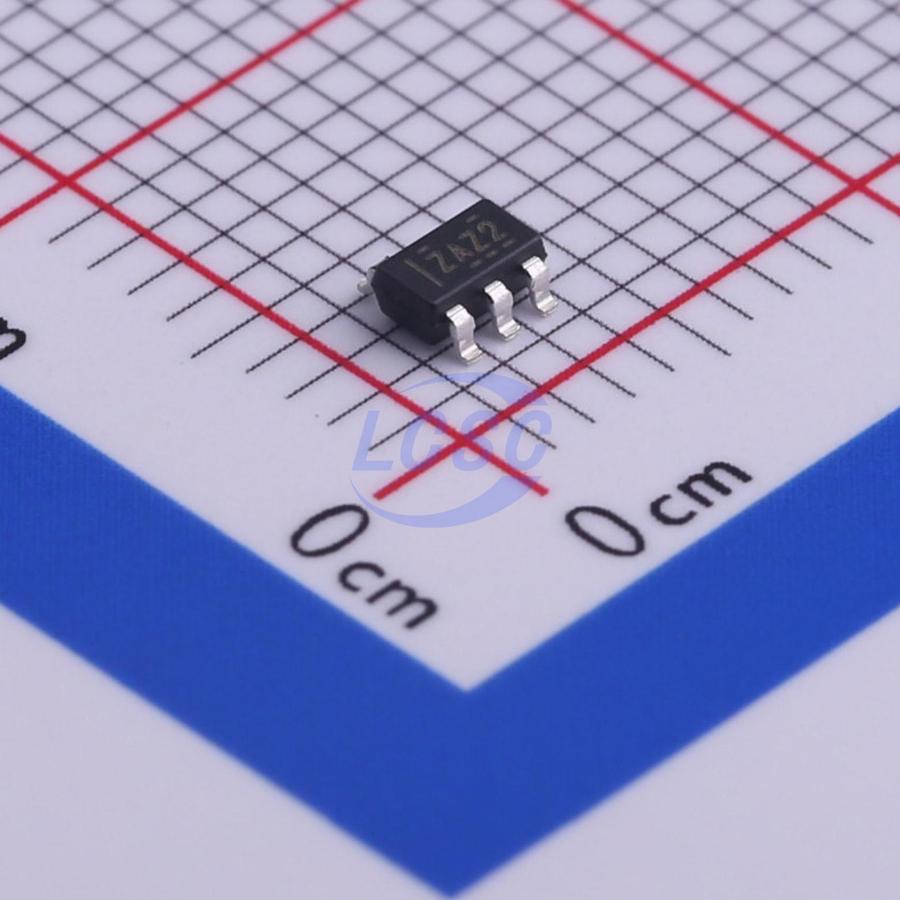

TPS7B6950QDBVRQ1
5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
150mA, battery-operated (40V), high PSRR, low IQ, low-dropout linear regulator
- Manufacturer
- TI
- Manufacturer part #
- TPS7B6950QDBVRQ1
- Store part #
- C132202
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,990 in stock
#C132202
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.79 | ₹208.95 |
| 50+ | ₹32.60 | ₹1,630.00 |
| 150+ | ₹28.67 | ₹4,300.50 |
| 500+ | ₹23.75 | ₹11,875.00 |
| 3,000+ | ₹21.56 | ₹64,680.00 |
| 6,000+ | ₹20.24 | ₹1,21,440.00 |
5 × ₹41.79
₹208.95
excl. GST
₹246.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS7B6950QDBVRQ1
₹208.95 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 15uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 150mA
- Features
- Built-in soft-start;Input under-voltage protection;Short Circuit Protection;Over Current Protection;Thermal shutdown;Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.052 g
Overview
The TPS7B69xx-Q1 device is a low-dropout linear regulator designed for up to 40-V V₁ operations. With only 15-μA (typical) quiescent current at light load, the device is suitable for standby microcontrol-unit systems especially in automotive applications. The devices feature an integrated short-circuit and overcurrent protection. The TPS7B69xx-Q1 device operates over a -40°C to 125°C temperature range. Because of these features, the TPS7B6925-Q1, TPS7B6933-Q1, and TPS7B6950-Q1 devices are well suited in power supplies for various automotive applications.
Applications
- Automotive
- Infotainment Systems With Sleep Mode
- Always-On Battery Applications
- Door Modules
- Remote Keyless-Entry Systems
- Immobilizers
Key features
- Qualified for Automotive Applications
- AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C4B
- Maximum Output Current: 150 mA
- Low Quiescent Current (I_Q): 15 μA Typical at Light Loads, 25 μA Maximum Under Full Temperature
- 450 mV Typical Low Dropout Voltage at 100 mA Load Current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS7B6950DBVR#C174327TI · SOT-23-5 | TI | SOT-23-5 | 6,998 | ₹83.23 · 6,998 in stock | View |
 | SK6513SS5E-50#C5120326Suntek · SOT-23-5 | Suntek | SOT-23-5 | 5,865 | ₹25.68 · 5,865 in stock | View |
 | LTP3559-50NXT5#C5124527Linearin · SOT-23-5L | Linearin | SOT-23-5L | 2,792 | ₹51.44 · 2,792 in stock | View |
| GP2001-50HT5R#C48997241GUQIAO Microelectronics · SOT-23-5 | GUQIAO Microelectronics | SOT-23-5 | 2,870 | ₹6.44 · 2,870 in stock | View | |
 | CJ6386A50MF#C17703085JSCJ · SOT-23-5L | JSCJ | SOT-23-5L | 10 | ₹30.51 · 10 in stock | View |
