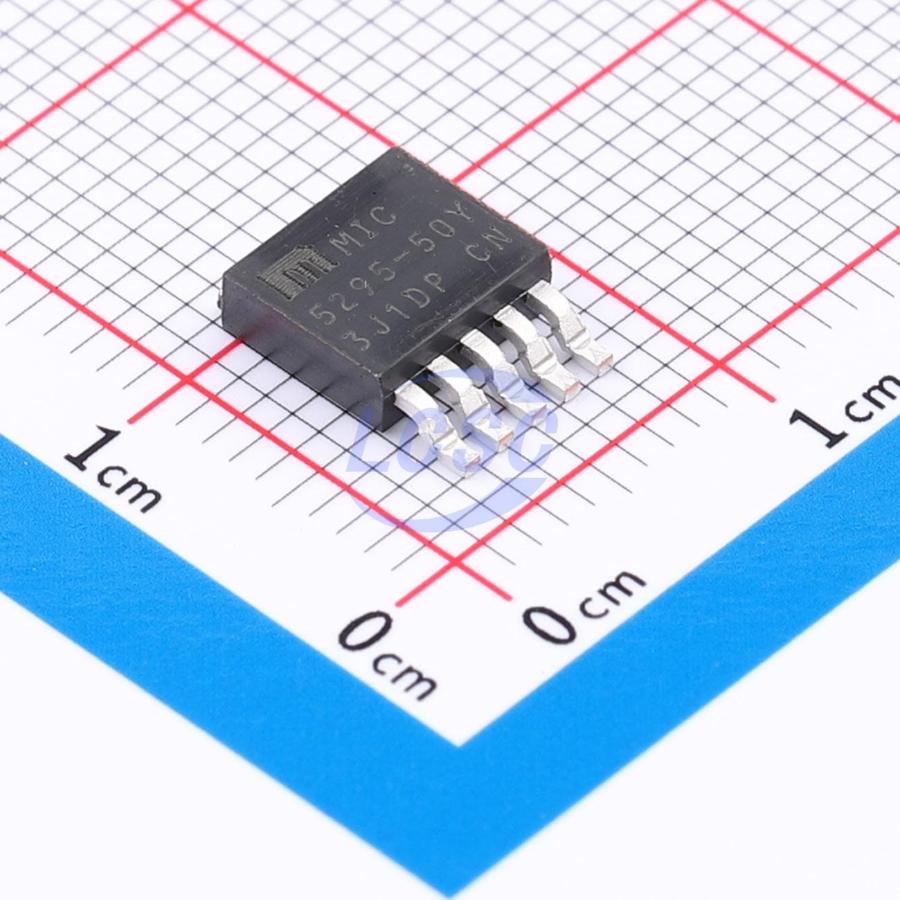

MIC5295-5.0YD-TR

The MIC5295 is a 150mA highly accurate, low dropout regulator with high input voltage and low ground current. This combination of high voltage and low ground current makes the MIC5295 ideal for USB and portable electronics applications, using 1-cell, 2-cell or 3-cell Li-Ion battery inputs. A uCap LDO design, the MIC5295 is stable with either a ceramic or tantalum output capacitor. It only requires a 2.2 μF capacitor for stability. Features of the MIC5295 includes enable input, thermal shutdown, current limit, reverse battery protection, and reverse leakage protection. Available in fixed and adjustable output voltage versions, the MIC5295 is offered in the TO-252-5 (D-Pak) package with a junction temperature range of -40 ℃ to +125 ℃.

Applications

• USB power supply
• Cellular phones
• Keep-alive supply in notebook and portable computers
• Logic supply for high-voltage batteries
• Automotive electronics
• Battery powered systems

Key features

• Wide input voltage range: 2.3V to 24V
• Ultra low ground current: 18 μA
• Low dropout voltage: 300 mV at 150 mA
• High initial output accuracy: ±1.0%
• Stable with ceramic or tantalum capacitors
• Excellent line and load regulation specifications
• Reverse battery protection
• Reverse leakage protection
• Thermal shutdown and current limit protection
• PowerTO-252-5 (D-Pak)package
• Adjustable output from 1.24V-20V
