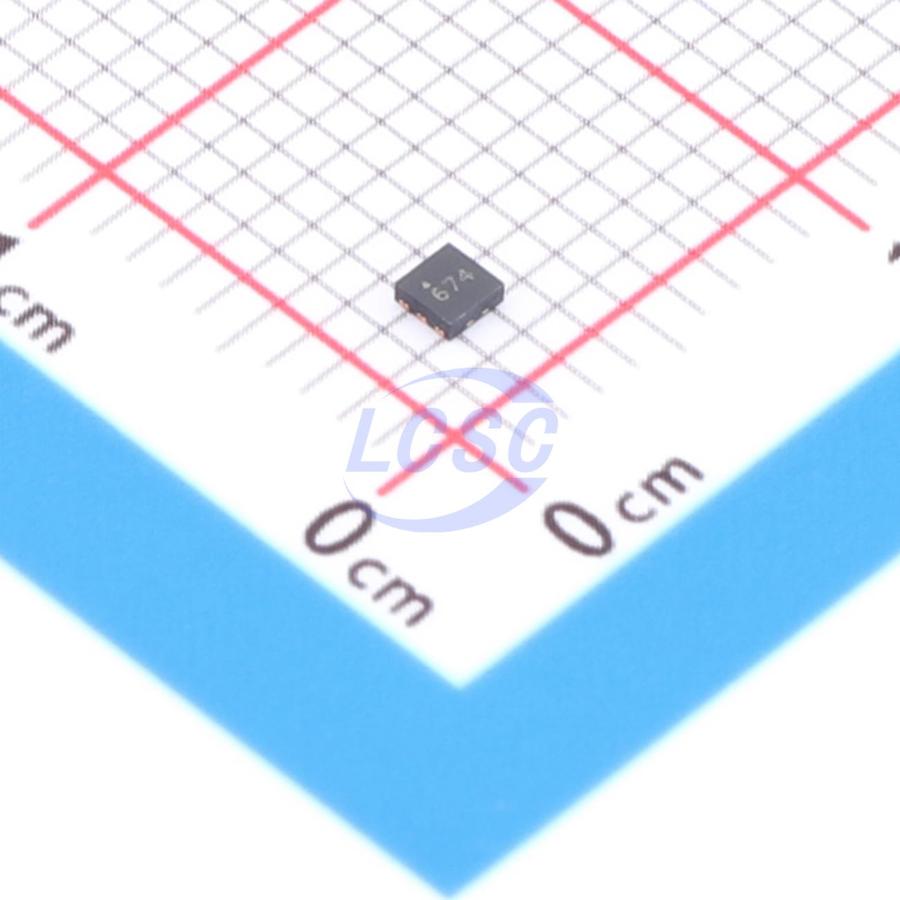

MIC5367-1.2YMT-TR

The MIC5367/8 is an advanced general purpose linear regulator offering high power supply rejection (PSRR) in an ultra-small 1.6mm x 1.6mm package. The MIC5368 includes an auto-discharge feature that is activated when the enable pin is low. The MIC5367/8 is capable of sourcing 200mA peak (150mA continous) output current and offers high PSRR making it an ideal solution for any portable electronic application. Ideal for battery powered applications, the MIC5367/8 offers 2% initial accuracy, low dropout voltage (180mV @ 150mA), and low ground current (typically 29μA). The MIC5367/8 can also be put into a zero-off-mode current state, drawing virtually no current when disabled. The MIC5367/8 has an operating junction temperature range of -40℃ to 125℃.

Applications

• Mobile phones
• Digital cameras
• GPS, PDAs, PMP, handhelds
• Portable electronics

Key features

• Input voltage range: 2.5V to 5.5V
• 200mA peak (150mA continuous) output current
• Stable with 1μF ceramic output capacitors
• Low dropout voltage – 180mV @ 150mA
• Excellent Load/Line Transient Response
• Low quiescent current – 29μA
• High PSRR – 65dB
• Output discharge circuit – MIC5368
• High output accuracy – ±2% initial accuracy
• Tiny 1.6mm x 1.6mm Thin MLF package
• Thermal shutdown and current limit protection
