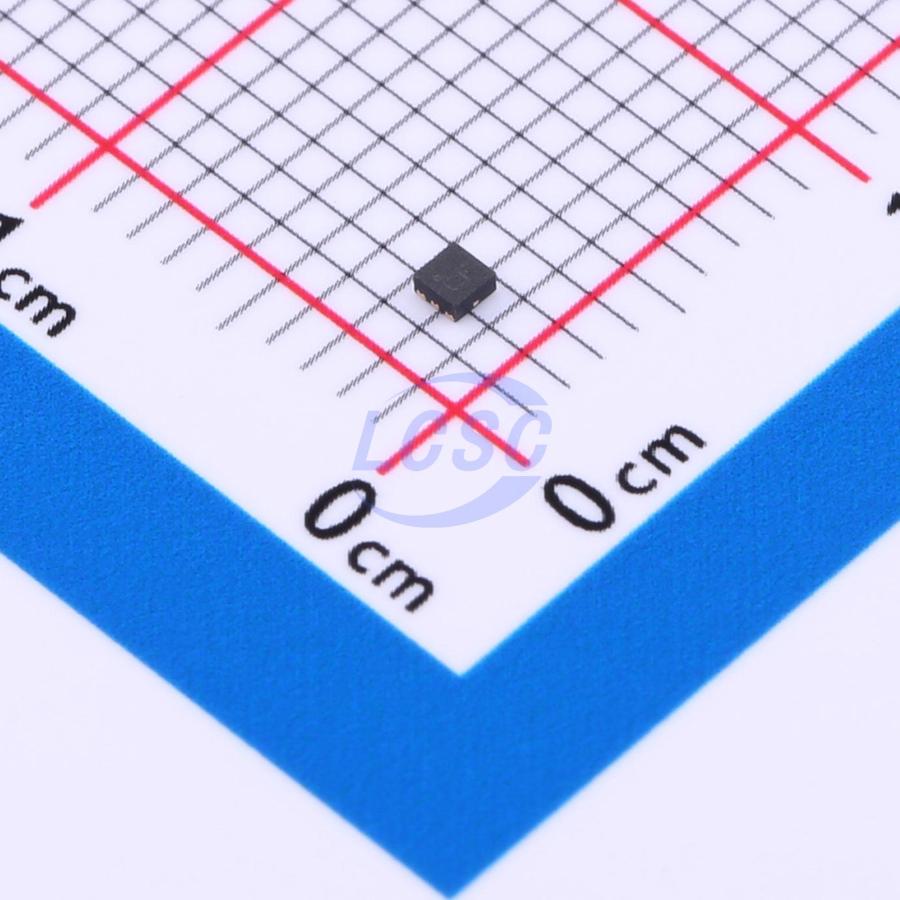

MIC5528-3.3YMT-TR

The MIC5528 is a low-power, ACap, low dropout regulator designed for optimal performance in a very small footprint. It is capable of sourcing up to 500 mA of output current while only drawing 38 μA of operating current. This high performance LDO is a UCap design in a thermally enhanced 1.2 mm×1.2 mm extra thin (0.4 mm height) DFN package. It operates with small ceramic output capacitor for stability, thereby reducing required board space. Ideal for battery-operated applications, the MIC5528 offers ±2% accuracy, extremely low dropout voltage (260 mV @ 500 mA), and can regulate output voltages down to 1.0 V. Equipped with a TTL logic-compatible enable pin, the MIC5528 can be put into a zero-off-mode current state, drawing no current when disabled. The MIC5528 is a UCap design, operating with very small ceramic output capacitors for stability, reducing required board space and component cost for space-critical applications. The MIC5528 has an operating junction temperature range of -40°C to 125°C.

Applications

• Portable Communication Equipment
• DSC, GPS, PMP, and PDAs
• Portable Medical Devices
• 5V POL Applications

Key features

• Input Voltage Range: 2.5V to 5.5V
• Output Voltage Range: 1.0V to 5.0V
• Fixed Output Voltages: 1.1V, 1.2V, 1.8V, 2.8V, 3.0V, 3.3V
• ±2% Room Temperature Accuracy
• Low Quiescent Current 38 μA
• Stable with 2.2 μF Ceramic Output Capacitors
• Low Dropout Voltage 260 mV @ 500 mA
• Auto-Discharge and Internal Enable Pull-Down
• Thermal Shutdown and Current-Limit Protection
• 6-Pin 1.2 mm×1.2 mm Extra Thin DFN Package
• 6-Pin 1.2 mm×1.2 mm Thin DFN Package
