onsemiDatasheet (PDF)

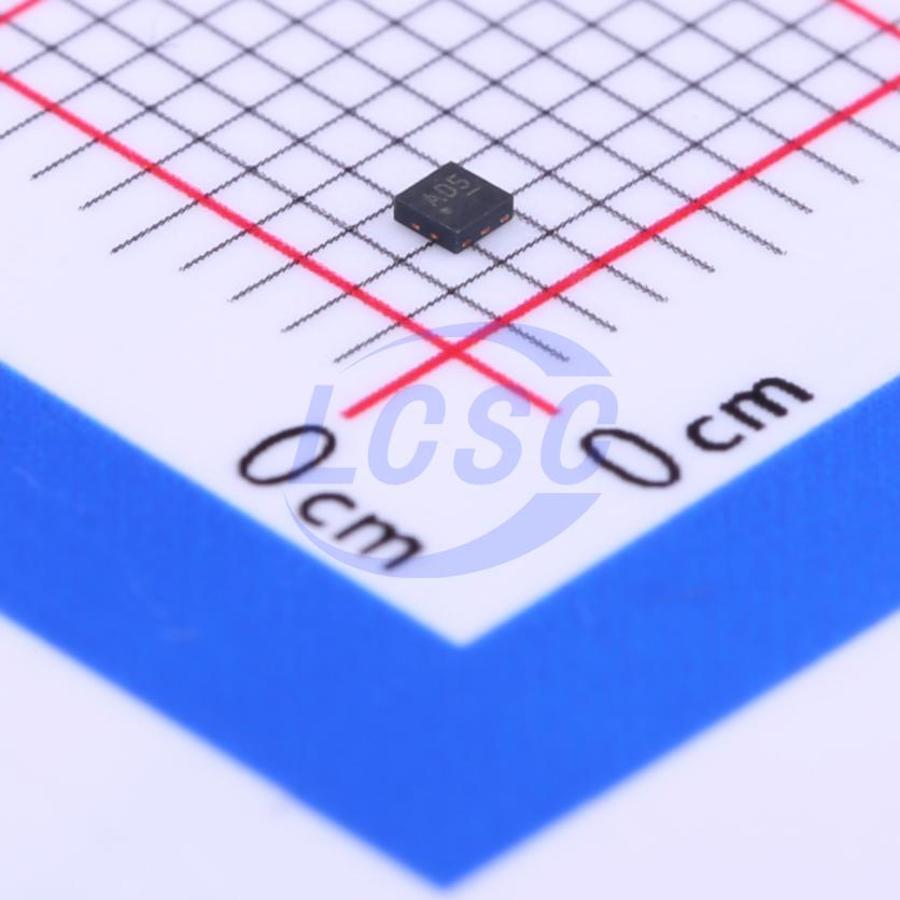

NCP176AMX330TCG
3.3V Positive Fixed XDFN-6-EP(1.2x1.2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
XDFN-6-EP(1.2x1.2)ROHS3 CompliantActive
LDO Regulator - Fast Transient Response, Low Voltage
- Manufacturer
- onsemi
- Manufacturer part #
- NCP176AMX330TCG
- Store part #
- C233363
- Package / case
- XDFN-6-EP(1.2x1.2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,205 in stock
#C233363
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.28 | ₹156.40 |
| 50+ | ₹24.83 | ₹1,241.50 |
| 150+ | ₹22.07 | ₹3,310.50 |
| 500+ | ₹18.63 | ₹9,315.00 |
| 2,500+ | ₹16.95 | ₹42,375.00 |
| 5,000+ | ₹16.02 | ₹80,100.00 |
5 × ₹31.28
₹156.40
excl. GST
₹184.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NCP176AMX330TCG
₹156.40 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Features
- Enable control;Built-in soft-start;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
The NCP176 is CMOS LDO regulator featuring 500 mA output current. The input voltage is as low as 1.4 V and the output voltage can be set from 0.7 V.
Applications
- Battery Powered Equipment
- Portable Communication Equipment
- Cameras, Image Sensors and Camcorders
Key features
- Operating Input Voltage Range: 1.4 V to 5.5 V
- Output Voltage Range: 0.7 to 3.6 V (0.1 V steps)
- Quiescent Current typ. 60 μA
- Low Dropout: 130 mV typ. at 500 mA, VOUT = 2.5 V
- High Output Voltage Accuracy ±0.8% (ΔVOUT > 1.8 V)
- Stable with Small 1 μF Ceramic Capacitors
- Over−current Protection
- Built−in Soft Start Circuit to Suppress Inrush Current
- Thermal Shutdown Protection: 165 °C
- With (NCP176A) and Without (NCP176B) Output Discharge Function
- Available in XDFN6 1.2 mm x 1.2 mm x 0.4 mm Package
- These are Pb−free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MIC5528-3.3YMT-T5#C633182MICROCHIP · XDFN-6-EP(1.2x1.2) | MICROCHIP | XDFN-6-EP(1.2x1.2) | 164 | ₹44.74 · 164 in stock | View | |
 | MIC5528-3.3YMT-TR#C622490MICROCHIP · TDFN-6-EP(1.2x1.2) | MICROCHIP | TDFN-6-EP(1.2x1.2) | 1,062 | ₹64.11 · 1,062 in stock | View |
| NR1600GK330BE4S#C7250026Nisshinbo Micro Devices Inc. · DFN1212-6 | Nisshinbo Micro Devices Inc. | DFN1212-6 | On request | ₹44.28 · 0 in stock | View | |
| SGM2037-3.3XUDX6G/TR#C700423SGMICRO · UTDFN-6L(1.2x1.2) | SGMICRO | UTDFN-6L(1.2x1.2) | On request | ₹45.55 · 0 in stock | View | |
| RP111L331D-TR#C3747417Nisshinbo Micro Devices Inc. · DFN1212-6 | Nisshinbo Micro Devices Inc. | DFN1212-6 | On request | ₹52.81 · 0 in stock | View | |
