Firstohm(First Resistor & Condenser)Datasheet (PDF)
MM204F2K00TKRTR3K0

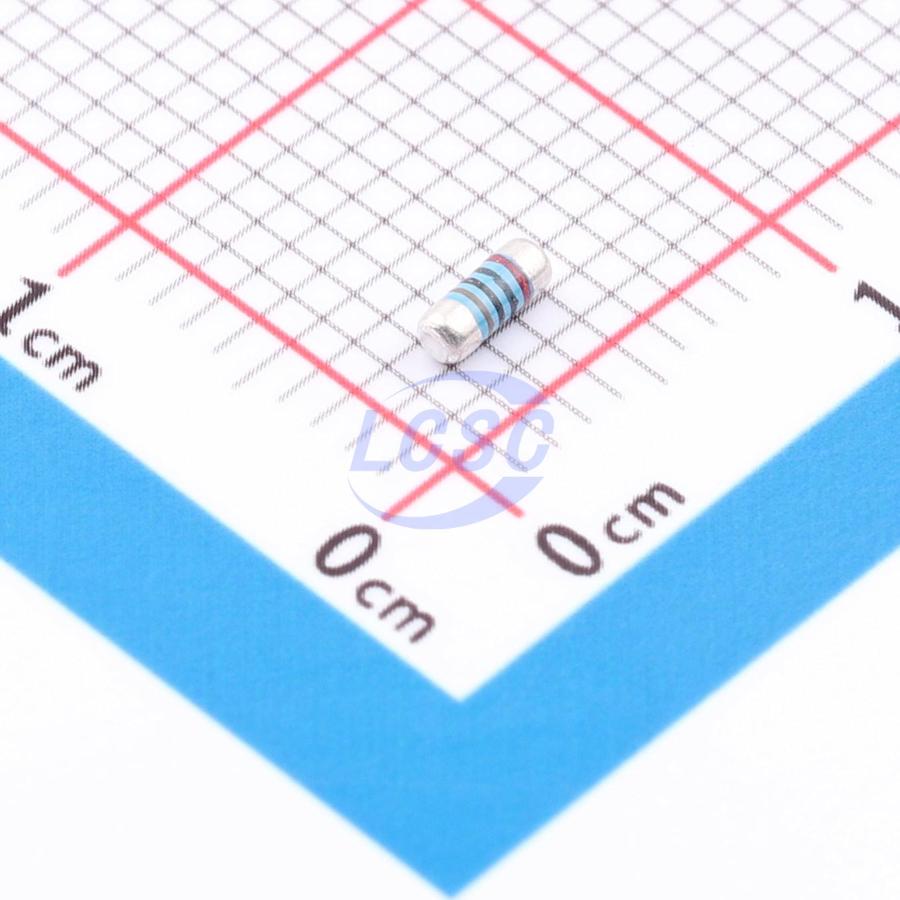

250mW 2kΩ 200V Metal Film Resistor ±1% ±50ppm/℃ MELF-0204 Chip Resistor - Surface Mount
MELF-0204RoHSActive
- Manufacturer
- Firstohm(First Resistor & Condenser)
- Manufacturer part #
- MM204F2K00TKRTR3K0
- Store part #
- C233009
- Package / case
- MELF-0204
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,040 in stock
#C233009
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.00 | ₹40.00 |
| 200+ | ₹1.96 | ₹392.00 |
| 600+ | ₹1.93 | ₹1,158.00 |
| 3,000+ | ₹1.91 | ₹5,730.00 |
20 × ₹2.00
₹40.00
excl. GST
₹47.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM204F2K00TKRTR3K0
₹40.00 for 20 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 2kΩ
- Voltage Rating
- 200V
- Type
- Metal Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±50ppm/℃
- Operating Temperature
- -55℃~+125℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.04 g
Overview
Key features
- SMD structure supported
- Sulfuration resistance tested
- Excellent solderability of terminal electrodes
- Superior heat dissipation compared to chip resistors
- Robust mechanical structure, resistant to vibration and thermal shock
- RoHS compliant, free of SVHC substances identified by ECHA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CSR0204FTDV2001#C489410Viking · MELF-0204 | Viking | MELF-0204 | 13,620 | ₹3.76 · 13,620 in stock | View |
 | RJM74P0204F2T2001#C410713TyoHM · MELF-0204 | TyoHM | MELF-0204 | 1,380 | ₹4.42 · 1,380 in stock | View |
 | MMA02040C2001FB000#C1855865VISHAY · MELF-0204 | VISHAY | MELF-0204 | 8,750 | ₹8.23 · 8,750 in stock | View |
 | MMA02040C2001FB300#C2074646VISHAY · MELF-0204 | VISHAY | MELF-0204 | 8,780 | ₹8.35 · 8,780 in stock | View |
 | SMM02040C2001FB300#C2979759VISHAY · MELF-0204 | VISHAY | MELF-0204 | 85 | ₹13.88 · 85 in stock | View |
