TyoHMDatasheet (PDF)
RJM74P0204F2T2001

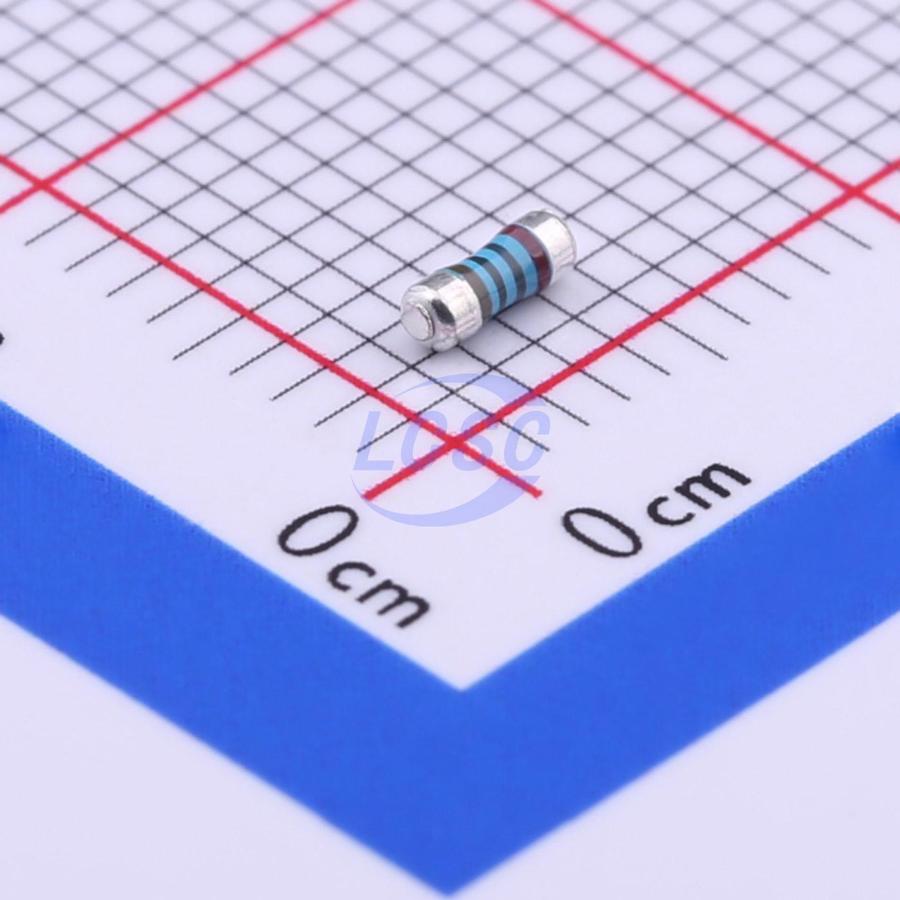

2kΩ ±1% 250mW MELF Metal Film Resistor
MELF-0204ROHS CompliantActive
RES 2kΩ ±1% 250mW MELF
- Manufacturer
- TyoHM
- Manufacturer part #
- RJM74P0204F2T2001
- Store part #
- C410713
- Package / case
- MELF-0204
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,380 in stock
#C410713
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.42 | ₹88.40 |
| 200+ | ₹3.48 | ₹696.00 |
| 600+ | ₹2.96 | ₹1,776.00 |
| 3,000+ | ₹2.65 | ₹7,950.00 |
| 9,000+ | ₹2.37 | ₹21,330.00 |
| 21,000+ | ₹2.22 | ₹46,620.00 |
20 × ₹4.42
₹88.40
excl. GST
₹104.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RJM74P0204F2T2001
₹88.40 for 20 + GST
Specifications
- Resistance
- 2kΩ
- Power(Watts)
- 250mW
- Voltage Rating
- 250V
- Operating Temperature
- -55℃~+125℃
- Type
- Metal Film Resistor
- Temperature Coefficient
- ±50ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.147 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM204F2K00TKRTR3K0#C233009Firstohm(First Resistor & Condenser) · MELF-0204 | Firstohm(First Resistor & Condenser) | MELF-0204 | 2,040 | ₹2.00 · 2,040 in stock | View |
 | CSR0204FTDV2001#C489410Viking · MELF-0204 | Viking | MELF-0204 | 13,620 | ₹3.76 · 13,620 in stock | View |
 | MMA02040C2001FB000#C1855865VISHAY · MELF-0204 | VISHAY | MELF-0204 | 8,750 | ₹8.18 · 8,750 in stock | View |
 | MMA02040C2001FB300#C2074646VISHAY · MELF-0204 | VISHAY | MELF-0204 | 8,750 | ₹11.67 · 8,750 in stock | View |
 | SMM02040C2001FB300#C2979759VISHAY · MELF-0204 | VISHAY | MELF-0204 | 85 | ₹13.88 · 85 in stock | View |
