onsemiDatasheet (PDF)

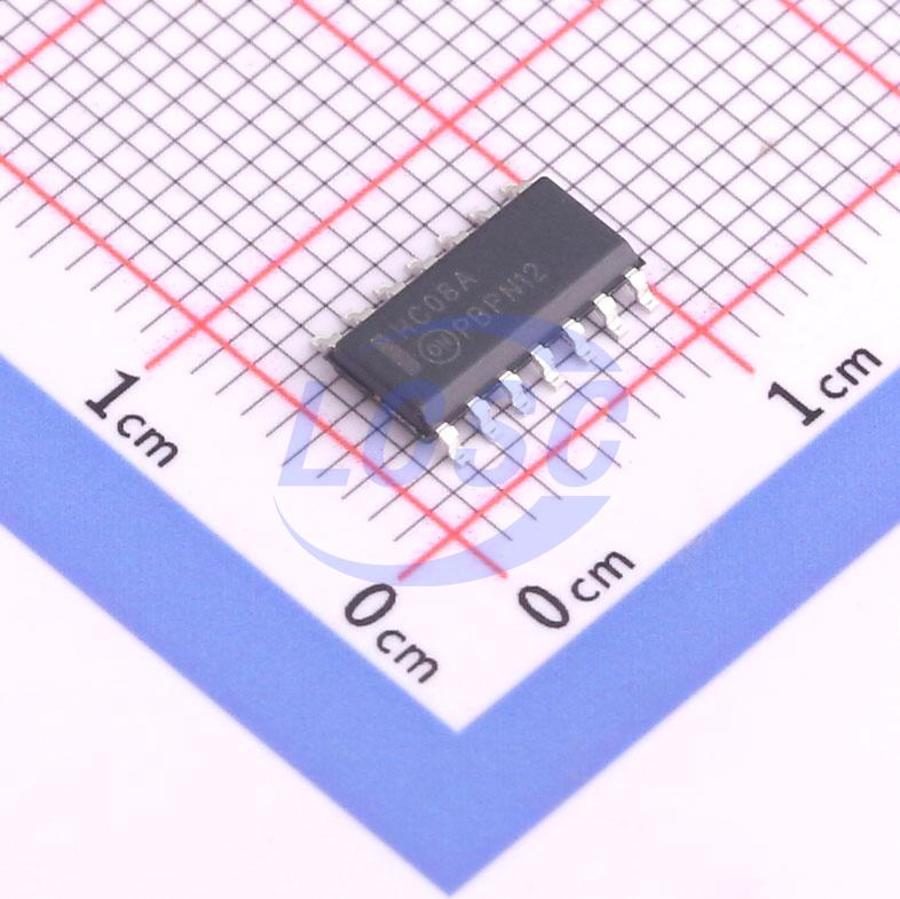

MM74HC08MX
2V~6V 20ns@6V,50pF 2uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quad 2-Input AND Gate
- Manufacturer
- onsemi
- Manufacturer part #
- MM74HC08MX
- Store part #
- C7389
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,240 in stock
#C7389
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.06 | ₹200.30 |
| 50+ | ₹31.05 | ₹1,552.50 |
| 150+ | ₹27.19 | ₹4,078.50 |
| 500+ | ₹22.37 | ₹11,185.00 |
| 2,500+ | ₹20.23 | ₹50,575.00 |
| 5,000+ | ₹18.95 | ₹94,750.00 |
5 × ₹40.06
₹200.30
excl. GST
₹236.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MM74HC08MX
₹200.30 for 5 + GST
Specifications
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 20ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V;3.98V;5.48V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
MM74HC08 AND gates utilize advanced silicongate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. The HC08 has buffered outputs, providing high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground. All packages are lead free per JEDEC: J-STD-020B standard.
Key features
- Typical propagation delay: 7ns (tPHL), 12ns (tPLH)
- Fanout of 10 LS-TTL loads
- Quiescent power consumption: 2µA maximum at room temperature
- Low input current: 1µA maximum
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM74HC08M#C897298onsemi · SOIC-14 | onsemi | SOIC-14 | 113 | ₹79.31 · 113 in stock | View |
 | SN74HC08DR#C337768TI · SOIC-14 | TI | SOIC-14 | 92,060 | ₹28.37 · 92,060 in stock | View |
 | CD74HC08QM96EP#C2860790TI · SOIC-14 | TI | SOIC-14 | 8 | ₹329.14 · 8 in stock | View |
 | SN74LS08DS#C52092045GREENMICRO · SOP-14 | GREENMICRO | SOP-14 | 2,100 | ₹13.55 · 2,100 in stock | View |
 | SN74HC08QDRQ1#C2866596TI · SOIC-14 | TI | SOIC-14 | 210 | ₹66.28 · 210 in stock | View |
