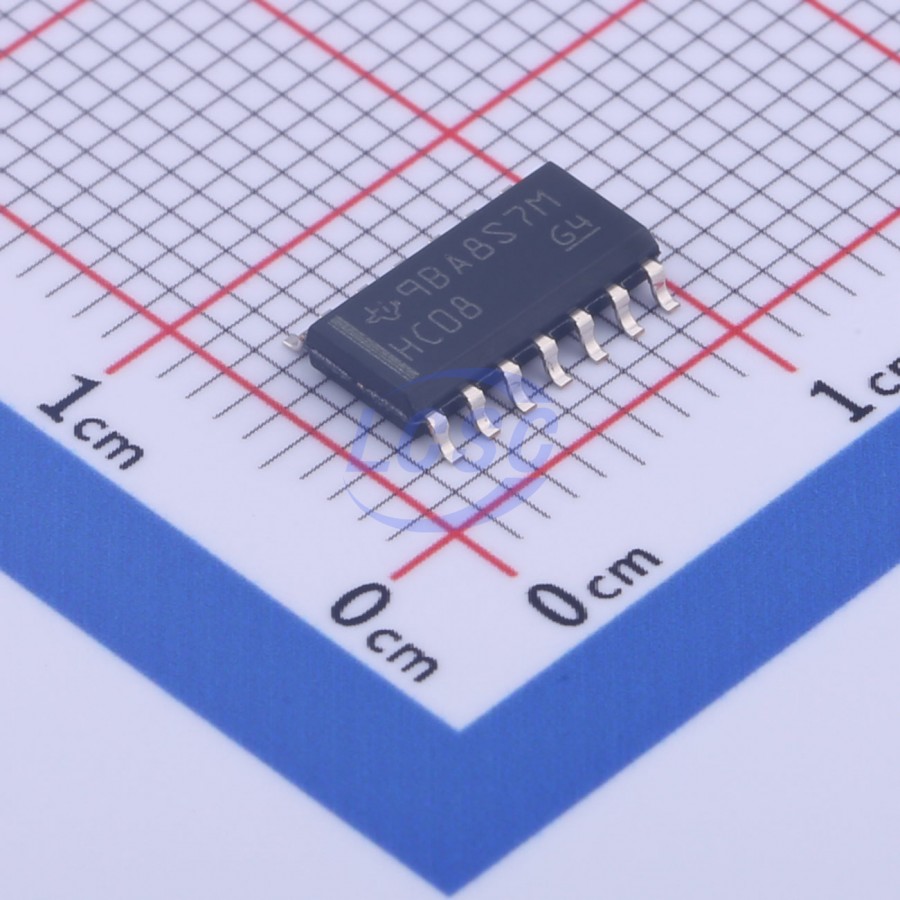

SN74HC08DR
2uA 2V~6V 17ns@6V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quadruple 2-Input Positive-AND Gates
- Manufacturer
- TI
- Manufacturer part #
- SN74HC08DR
- Store part #
- C337768
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
92,060 in stock
#C337768
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.37 | ₹141.85 |
| 50+ | ₹22.42 | ₹1,121.00 |
| 150+ | ₹19.88 | ₹2,982.00 |
| 500+ | ₹16.70 | ₹8,350.00 |
| 2,500+ | ₹13.60 | ₹34,000.00 |
| 5,000+ | ₹12.74 | ₹63,700.00 |
5 × ₹28.37
₹141.85
excl. GST
₹167.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC08DR
₹141.85 for 5 + GST
Specifications
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 74HC Series
- Output Logic Level - High
- 1.9V;3.98V;5.48V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 17ns@6V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.295 g
Overview
The SNx4HC08 devices contain four independent 2‑input AND gates. They perform the Boolean function Y = A ●B or Y = A'(overline) + B'(overline) in positive logic. The SNx4HC08 contains quadruple 2-input positive AND gate device and performs the Boolean function Y = A • B. This device is useful when multiple AND functions are used in the system.
Applications
- Servers
- LED Displays Network Switches
- I/O Expanders Base Station Processor Boards
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- Outputs Can Drive up to 10 LSTTL Loads
- Low Power Consumption: Maximum Icc 20 μA
- Typical tpd = 8 ns at 6 V
- ±4 - mA Output Drive at 5 V
- Low Input Current of 1 μA (Maximum)
