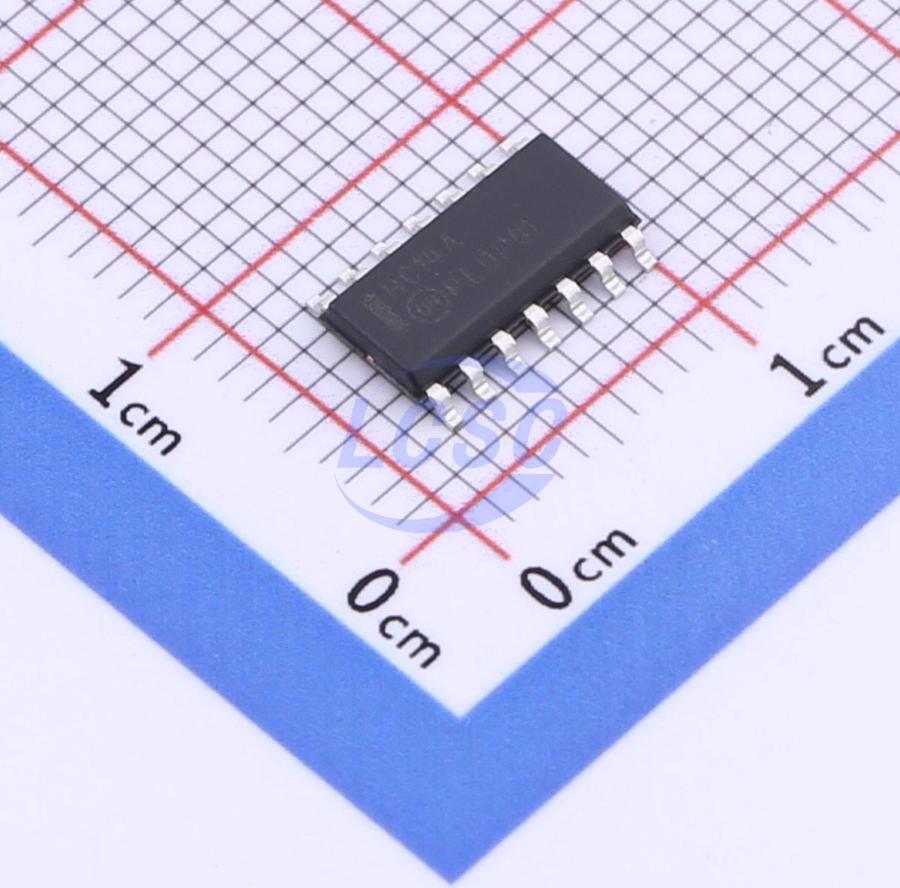

MM74HC14M
Schmitt trigger 2V~6V 21ns@6V,50pF 2uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Hex Inverting Schmitt Trigger
- Manufacturer
- onsemi
- Manufacturer part #
- MM74HC14M
- Store part #
- C900094
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,545 in stock
#C900094
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.56 | ₹222.80 |
| 50+ | ₹35.28 | ₹1,764.00 |
| 165+ | ₹27.97 | ₹4,615.05 |
| 495+ | ₹23.02 | ₹11,394.90 |
| 2,475+ | ₹20.81 | ₹51,504.75 |
| 5,005+ | ₹19.49 | ₹97,547.45 |
5 × ₹44.56
₹222.80
excl. GST
₹262.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 55 per tube
MM74HC14M
₹222.80 for 5 + GST
Specifications
- Logic Family
- 74HC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 21ns@6V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - Low
- 300mV~1.2V
- Input Logic Level - High
- 1.5V~4.2V
- Output Logic Level - High
- 1.9V;3.98V;5.9V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 55 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.6 g
Overview
The MM74HC14 utilizes advanced silicon-gate CMOS technology to achieve the low power dissipation and high noise immunity of standard CMOS, as well as the capability to drive 10 LS-TTL loads. The 74HC logic family is functionally and pinout compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
Key features
- Typical propagation delay: 13ns
- Wide power supply range: 2V–6V
- Low quiescent current: 20μA maximum (74HC Series)
- Low input current: 1μA maximum
- Fanout of 10 LS-TTL loads
- Typical hysteresis voltage: 0.9V at VCC = 4.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM74HC14MX#C232776onsemi · SOIC-14 | onsemi | SOIC-14 | 186 | ₹63.61 · 186 in stock | View |
 | 74HC14D#C699447HTC · SOIC-14 | HTC | SOIC-14 | 5,920 | ₹51.09 · 5,920 in stock | View |
