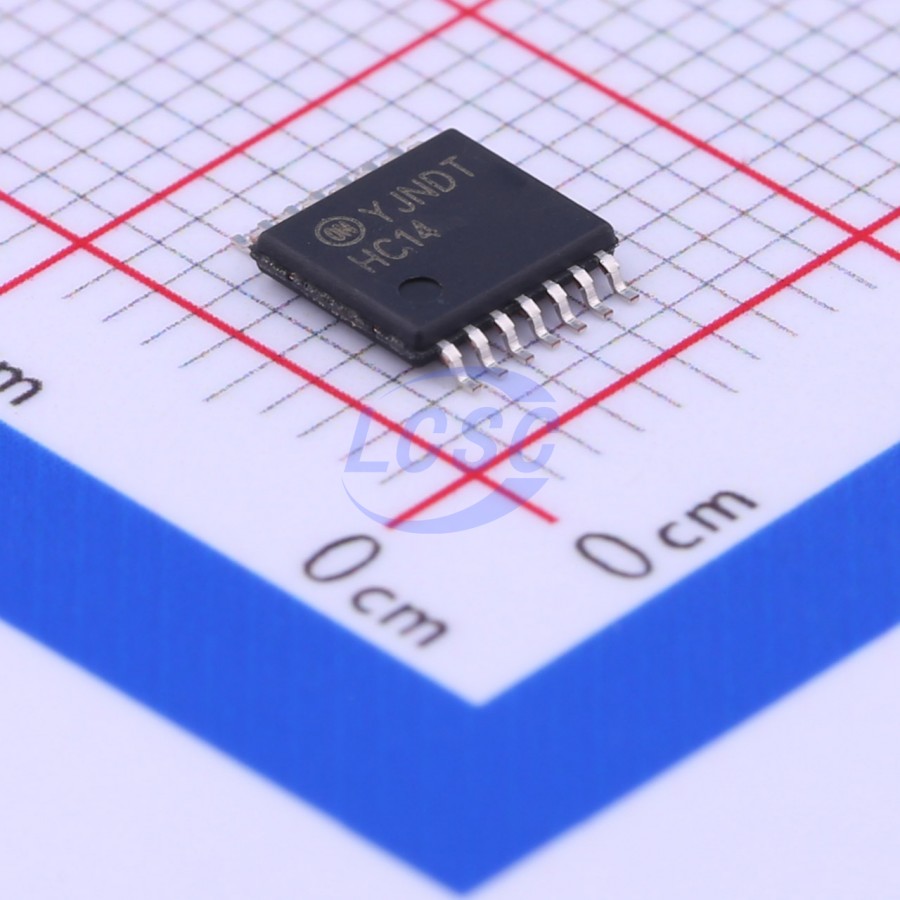

MM74HC14MTCX
Schmitt trigger 2V~6V 21ns@6V,50pF 2uA 6 TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Hex Inverting Schmitt Trigger
- Manufacturer
- onsemi
- Manufacturer part #
- MM74HC14MTCX
- Store part #
- C274667
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,247 in stock
#C274667
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.49 | ₹66.49 |
| 10+ | ₹54.98 | ₹549.80 |
| 30+ | ₹49.98 | ₹1,499.40 |
| 100+ | ₹43.90 | ₹4,390.00 |
| 500+ | ₹41.29 | ₹20,645.00 |
| 1,000+ | ₹39.56 | ₹39,560.00 |
1 × ₹66.49
₹66.49
excl. GST
₹78.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MM74HC14MTCX
₹66.49 for 1 + GST
Specifications
- Logic Family
- 74HC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 21ns@6V,50pF
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - Low
- 300mV~1.2V
- Input Logic Level - High
- 1.5V~4.2V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.494 g
Overview
The MM74HC14 utilizes advanced silicon-gate CMOS technology to achieve the low power dissipation and high noise immunity of standard CMOS, as well as the capability to drive 10 LS-TTL loads. The 74HC logic family is functionally and pinout compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to V(CC) and ground.
Key features
- Typical propagation delay: 13ns
- Wide power supply range: 2V–6V
- Low quiescent current: 20μA maximum (74HC Series)
- Low input current: 1μA maximum
- Fanout of 10 LS-TTL loads
- Typical hysteresis voltage: 0.9V at V(CC)=4.5V
