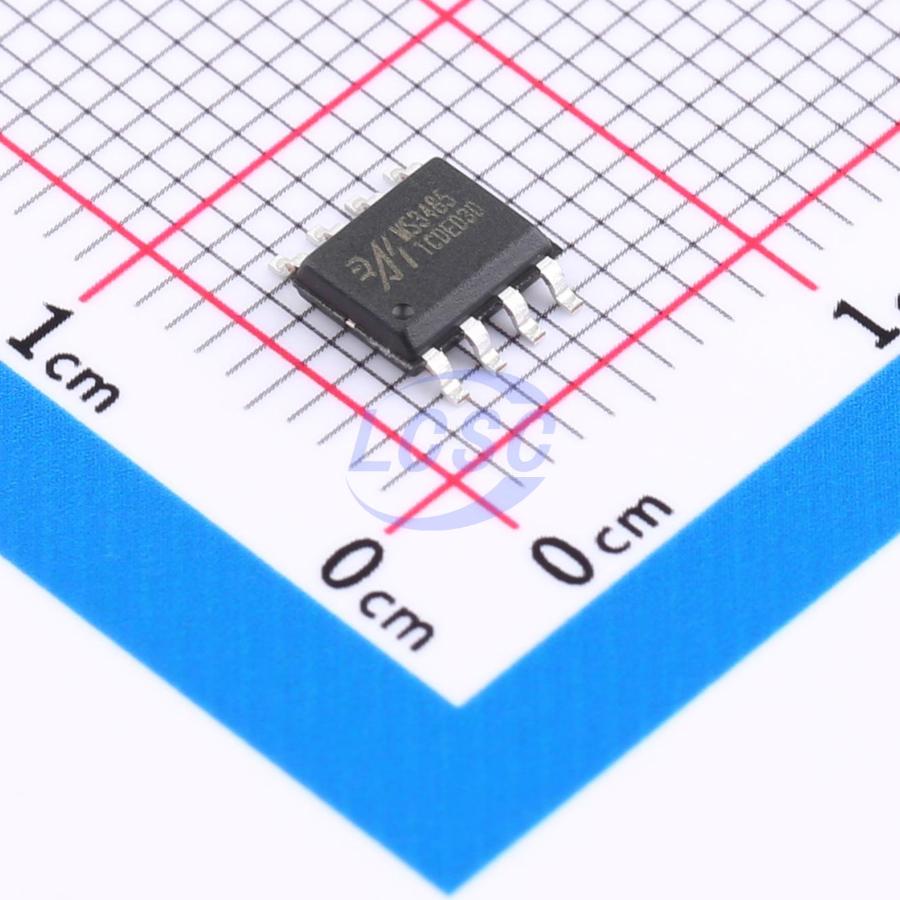

MS3485
1/1 Transceiver Half RS422, RS485 SOIC-8
SOIC-8ROHS CompliantActive
Polarized RS-485/RS-422 interface circuit
- Manufacturer
- Hangzhou Ruimeng Tech
- Manufacturer part #
- MS3485
- Store part #
- C178329
- Package / case
- SOIC-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,290 in stock
#C178329
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹113.20 | ₹113.20 |
| 10+ | ₹94.73 | ₹947.30 |
| 30+ | ₹85.39 | ₹2,561.70 |
| 100+ | ₹76.26 | ₹7,626.00 |
| 500+ | ₹51.49 | ₹25,745.00 |
| 1,000+ | ₹48.67 | ₹48,670.00 |
1 × ₹113.20
₹113.20
excl. GST
₹133.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MS3485
₹113.20 for 1 + GST
Specifications
- Voltage - Supply
- 2.5V~6V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Operating Temperature
- -40℃~+125℃
- Number of Nodes
- 256
- ESD Protect
- ±20kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 480uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.204 g
Overview
MS3485/MS3485M/MS3485DN/MS3485D is a half-duplex RS-485 transceiver with ±20kV ESD protection, supporting data rates up to 10Mbps. The integrated transient protection enables immunity to electrostatic discharge and electrical fast transient bursts as defined by IEC61000. The device features a wide common-mode voltage range, making it suitable for multipoint applications over long cable runs.
Applications
- Industrial Automation
- Electricity Meters
- HVAC Systems
- DMX512 Networks
- Process Control
Key features
- Bus pin protection
- ±20kV ESD (HBM)
- ±12kV IEC61000-4-2 contact discharge
- +4kV IEC61000-4-4 fast transient burst
- Maximum bus nodes: 256
- Data rate: 300bps to 10Mbps (5V supply)
- Operating voltage range: 2.5V ~ 6.0V
- Tri-state output
- Compatible with other RS-485 ICs
