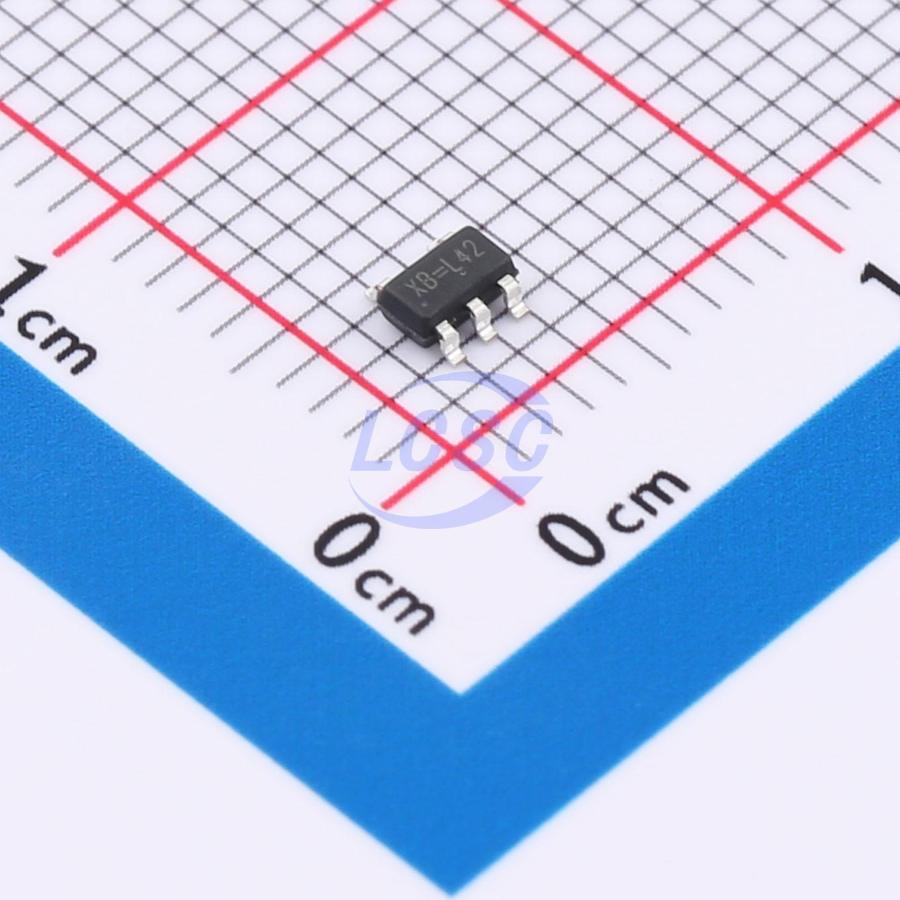

MS5108E23E-18
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5
SOT-23-5RoHSActive
CMOS step-down voltage regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MS5108E23E-18
- Store part #
- C30197554
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,770 in stock
#C30197554
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.63 | ₹96.30 |
| 100+ | ₹7.62 | ₹762.00 |
| 300+ | ₹6.62 | ₹1,986.00 |
| 1,000+ | ₹5.85 | ₹5,850.00 |
| 5,000+ | ₹5.25 | ₹26,250.00 |
| 10,000+ | ₹4.95 | ₹49,500.00 |
10 × ₹9.63
₹96.30
excl. GST
₹113.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MS5108E23E-18
₹96.30 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 80uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 7V
- Features
- Enable control;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
The MS5108E23E-XX series are high ripple rejection, low quiescent current, low dropout CMOS step-down voltage regulators with overcurrent and short-circuit protection. These devices feature very low quiescent current (80 μA Typ.) and are capable of supplying 500 mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. Due to the low dropout voltage and low quiescent current, these devices are particularly suited for battery-powered products where extended battery life is desired, such as computers, consumer products, and industrial equipment.
Applications
- CDMA/GSM mobile phones
- PDAs/MP3
- WLAN and Bluetooth devices
- Cordless telephones
- Battery-powered systems
Key features
- Output range: 1.2V - 3.3V, 500mA output current
- High PSRR: 75dB @ 1kHz
- Ultra-low quiescent current: 80uA (typical)
- Less than 1μA in shutdown mode
- Operating temperature range: -40°C to +85°C
