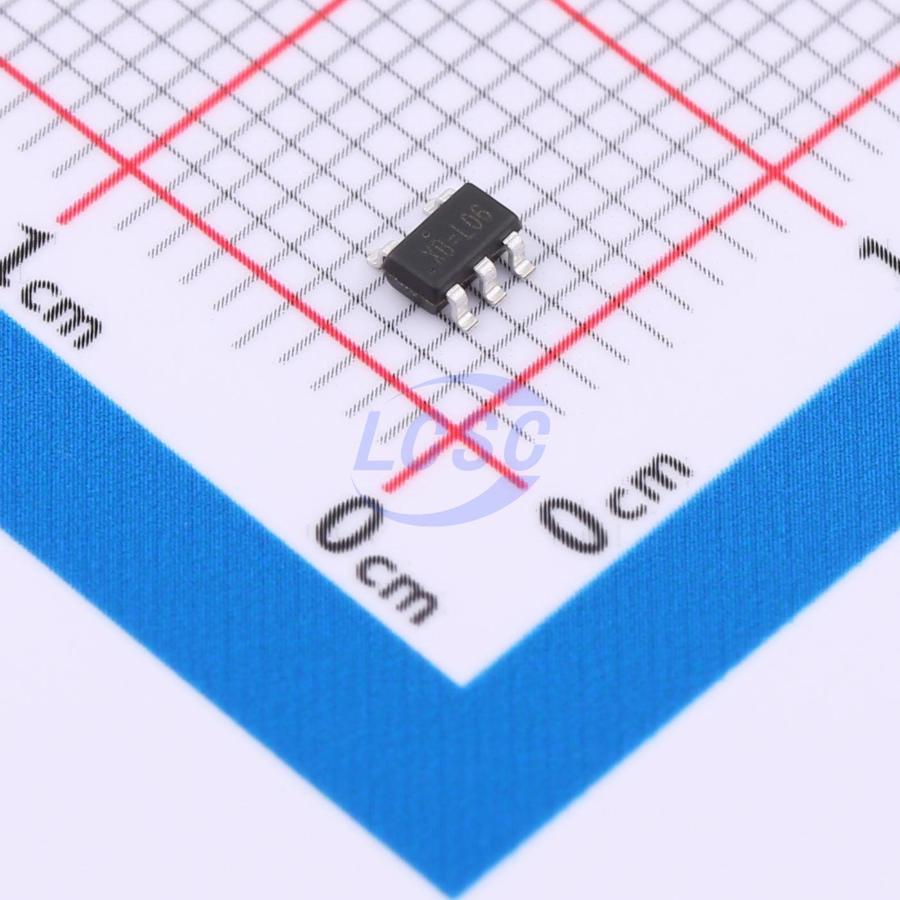

RT9013-18GB-MS
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5
SOT-23-5RoHSActive
CMOS step-down voltage regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- RT9013-18GB-MS
- Store part #
- C7434203
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,690 in stock
#C7434203
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.87 | ₹78.70 |
| 100+ | ₹6.26 | ₹626.00 |
| 300+ | ₹5.45 | ₹1,635.00 |
| 3,000+ | ₹4.62 | ₹13,860.00 |
| 6,000+ | ₹4.13 | ₹24,780.00 |
| 9,000+ | ₹3.89 | ₹35,010.00 |
10 × ₹7.87
₹78.70
excl. GST
₹92.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9013-18GB-MS
₹78.70 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Features
- Enable control;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
The RT9013 series are CMOS step-down voltage regulators featuring high ripple rejection ratio, low power consumption, low dropout, and offering overcurrent and short-circuit protection. These devices have a very low quiescent bias current (60 μA Typ.). They can provide an output current of 500 mA with a very small voltage difference between the input and output while still maintaining good regulation. Due to the small voltage difference between the input and output and the low quiescent bias current, these devices are particularly suitable for battery-powered products where extending the useful battery life is desired, such as computers, consumer products, and industrial equipment.
Applications
- CDMA/GSM mobile phones
- PDAs/MP3
- WLAN and Bluetooth devices
- Cordless phones
- Battery-powered systems
Key features
- Output range: 1.2V - 5.0V
- 500mA output current
- High PSRR: 75dB at 1kHz
- Ultra-low quiescent current: 60µA (typical)
- Less than 1µA in shutdown mode
- Junction temperature operating range: -40°C to +85°C
