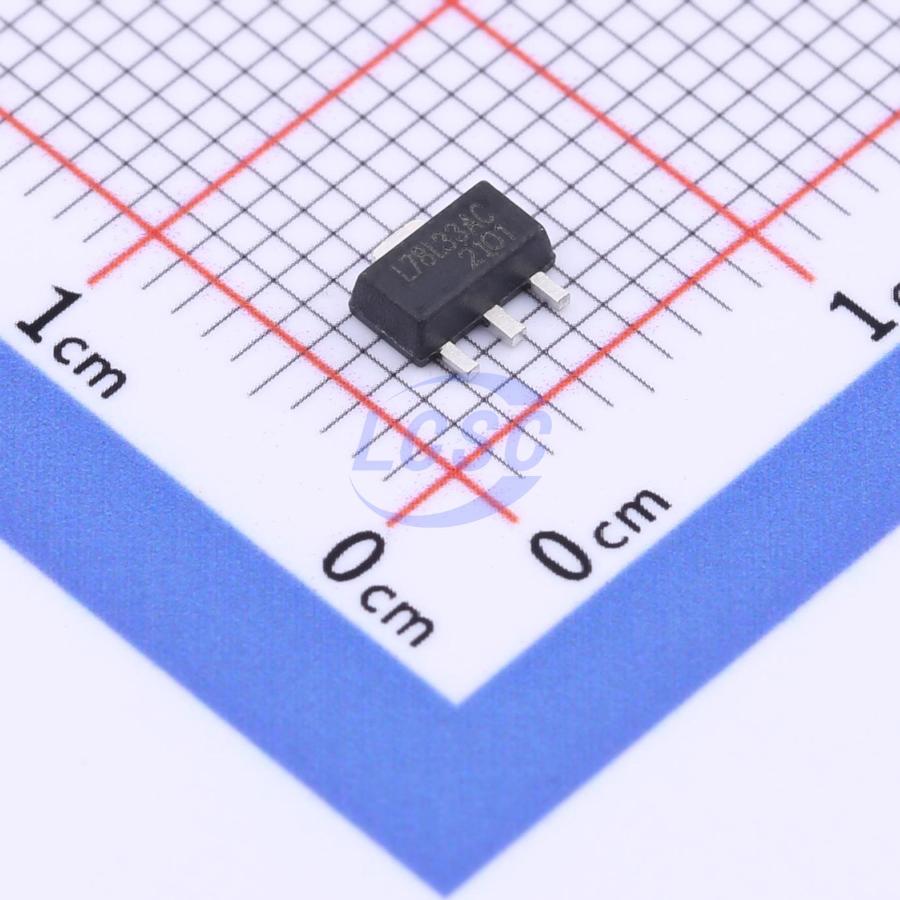

MS78L33
Linear Voltage Regulator IC Positive Fixed 1 Output 40mA SOT-89
SOT-89RoHSActive
Three-terminal positive voltage regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MS78L33
- Store part #
- C2914439
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,390 in stock
#C2914439
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.52 | ₹117.60 |
| 50+ | ₹18.88 | ₹944.00 |
| 150+ | ₹16.88 | ₹2,532.00 |
| 1,000+ | ₹12.50 | ₹12,500.00 |
| 2,000+ | ₹11.40 | ₹22,800.00 |
| 5,000+ | ₹10.73 | ₹53,650.00 |
5 × ₹23.52
₹117.60
excl. GST
₹138.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
MS78L33
₹117.60 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 20V
- Output Current
- 40mA
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Overview
Applications
- Three-terminal positive voltage regulator.
Key features
- Wide range of available, fixed output voltage.
- Low cost.
- Internal short-circuit current limiting.
- Internal thermal overload protection.
- No external components required.
- Complementary negative regulators offered (79LXX series).
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7133-1#C6454426MSKSEMI · SOT-89 | MSKSEMI | SOT-89 | 1,460 | ₹7.81 · 1,460 in stock | View |
 | HT7533-2-MS#C30197489MSKSEMI · SOT-89-3 | MSKSEMI | SOT-89-3 | 1,100 | ₹14.91 · 1,100 in stock | View |
 | HT7533-3-MS#C30197501MSKSEMI · SOT-89-3 | MSKSEMI | SOT-89-3 | 995 | ₹20.37 · 995 in stock | View |
 | HT7333-3-MS#C30197514MSKSEMI · SOT-89-3 | MSKSEMI | SOT-89-3 | 560 | ₹24.65 · 560 in stock | View |
 | HT7333-2-MS#C30197517MSKSEMI · SOT-89 | MSKSEMI | SOT-89 | 745 | ₹24.65 · 745 in stock | View |
