MS8313

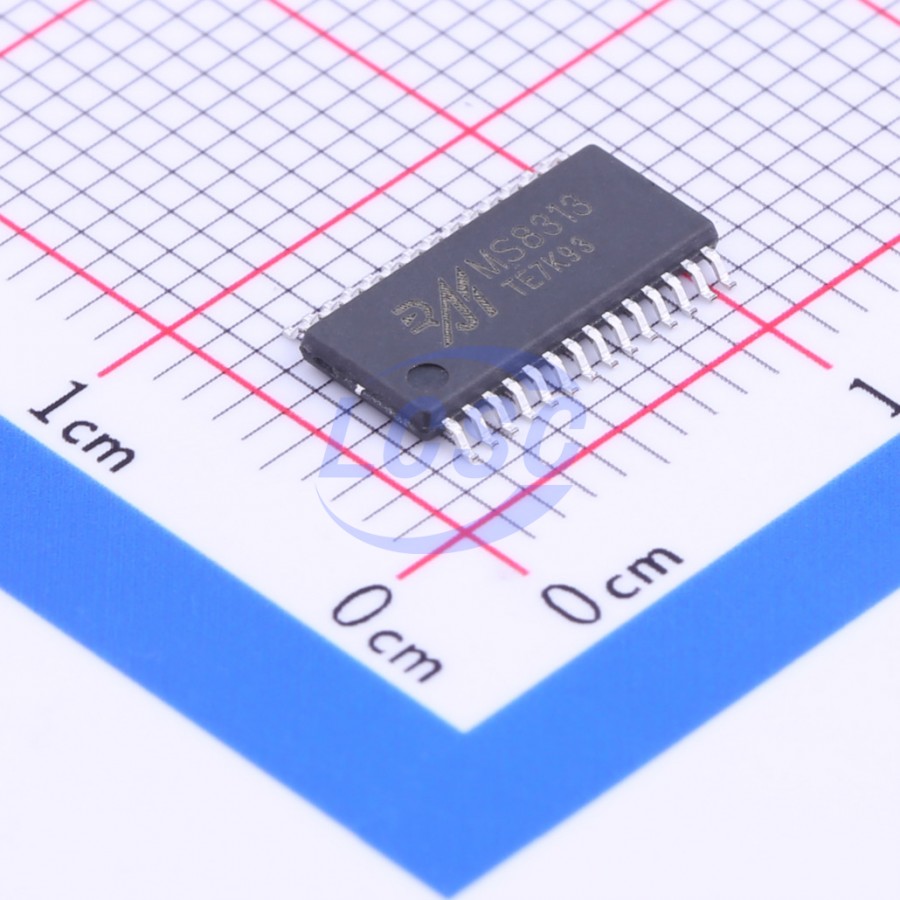

HTSSOP-28-EP Motor Drivers, Controllers RoHS
Three and a half H-bridge driver integrated circuits
- Manufacturer
- Hangzhou Ruimeng Tech
- Manufacturer part #
- MS8313
- Store part #
- C231942
- Package / case
- HTSSOP-28-EP
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
990 in stock
#C231942
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹152.75 | ₹152.75 |
| 10+ | ₹138.62 | ₹1,386.20 |
| 30+ | ₹130.81 | ₹3,924.30 |
| 100+ | ₹122.11 | ₹12,211.00 |
| 500+ | ₹118.21 | ₹59,105.00 |
| 1,000+ | ₹116.25 | ₹1,16,250.00 |
1 × ₹152.75
₹152.75
excl. GST
₹180.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MS8313
₹152.75 for 1 + GST
Specifications
- Drive Type
- Three Phase
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 500uA
- Output Current
- 1.75A
- Number of Half Bridges
- 3
- Peak Current
- 2.5A
- RDS(on)
- 240mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
The MS8313 provides three independently controllable half H-bridge drivers. It can be used to drive solenoids or other loads, but is primarily designed to drive a three-phase brushless DC motor. Each output driver channel contains an N-channel power MOSFET in a half H-bridge configuration. This design connects the ground terminal of each driver to a pin for current sensing on each output. A built-in general-purpose comparator is available for current limiting circuits or other functional circuits. The MS8313 delivers up to 2.5A peak current or 1.75A RMS output current per half H-bridge channel. The device features overcurrent protection, short-circuit protection, undervoltage protection, and overtemperature protection. Offered in a 28-pin thermal enhanced thin small outline package, eTSSOP28.
Applications
- HVAC motors
- Consumer products
- Office automation equipment
- Factory automation robots
Key features
- Three half H-bridge drivers
- Drives three-phase BLDC motors
- Independent half-bridge control
- Low-side current sensing pin
- Low RDS(on) power switches
- 24V, 2.5A peak current max at 25℃
- Integrated comparator
- Integrated 3.3V 10mA LDO
- 8 - 36V supply voltage range
- Surface mount package with heatsink pad
