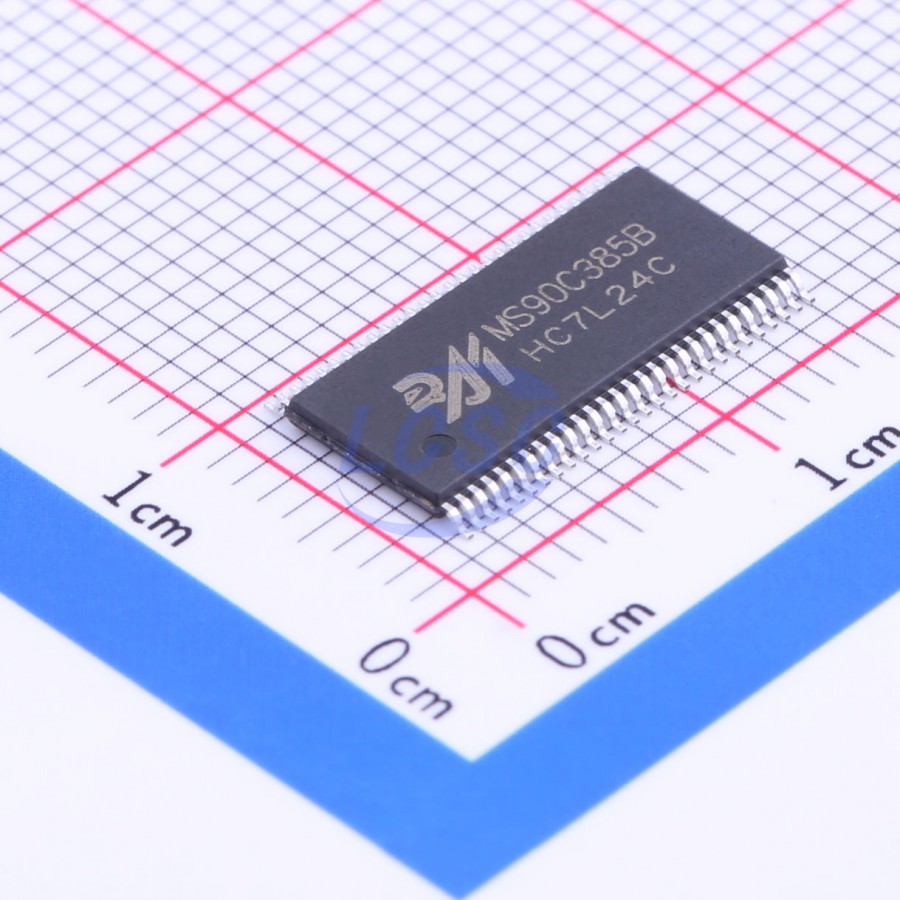

MS90C385B

The MS90C385B converts 28-bit TTL data into 4-channel LVDS signals. The clock channel is phase-locked and output in parallel with the data channels. At a clock frequency of 150MHz, 24-bit RGB data, 3-bit LCD timing data, and 1-bit control data are transmitted at 1050Mbps per LVDS data channel. At an input clock frequency of 150MHz, the data transfer rate is 525Mbytes/sec. This device is an ideal solution for addressing EMI and cable length issues associated with high-bandwidth, high-speed TTL signal interfaces.

Key features

• Frequency range: 20 - 150MHz clock signal
• Reduced bus minimizes wiring size and cost
• Core supply voltage: 3.3V
• I/O supply voltage: 1.8V / 3.3V compatible
• Low-power mode
• Supports VGA, SVGA, XGA, SXGA
• Supports spread spectrum clock generation
• Integrated input jitter filter
• 525 Megabytes/sec bandwidth
• Reduced LVDS swing for lower EMI (200mV or 345mV LVDS swing selectable)
• PLL requires no external components
• Compliant with TIA/EIA-644 LVDS standard
