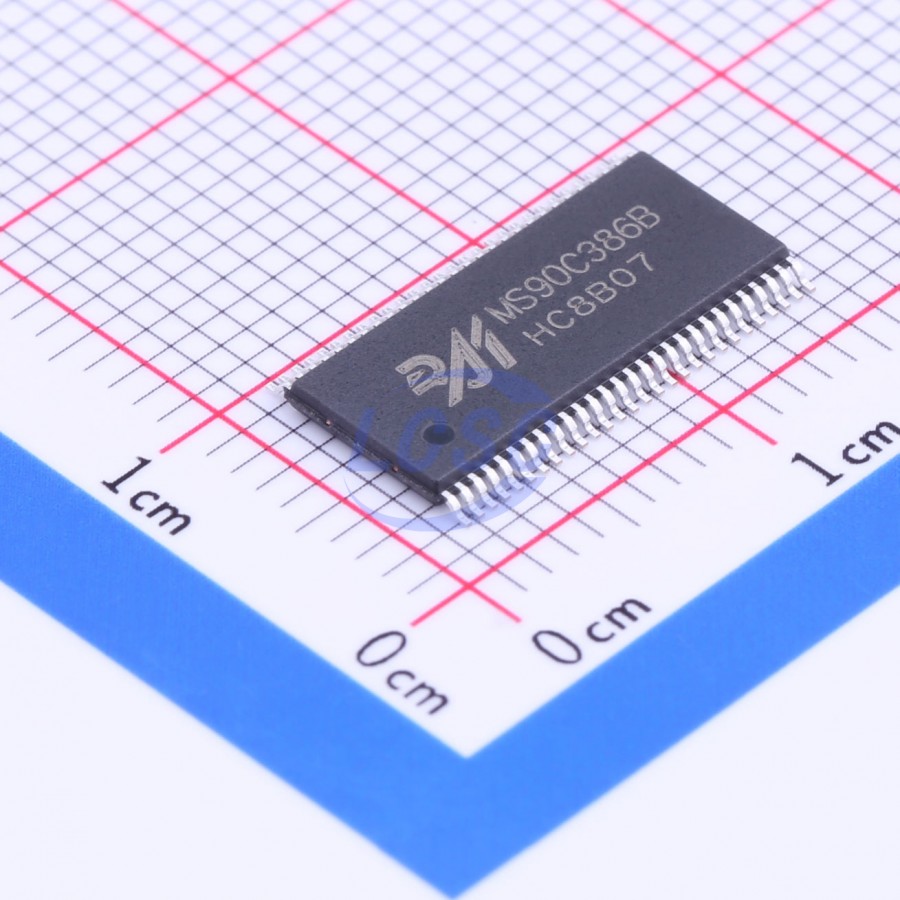

MS90C386B

The MS90C386 converts 4-channel LVDS signals into 28-bit TTL data. The clock channel and data channels are input in parallel. At a clock frequency of 175MHz, 24-bit RGB data, 3-bit LCD timing data, and 1-bit control data are transmitted at 1225Mbps per LVDS data channel. At an input clock frequency of 175MHz, the data transfer rate is 612.5Mbytes/sec. Paired with the MS90C385, this chip is an ideal solution for addressing EMI and cable length issues associated with high-bandwidth, high-speed TTL signal interfaces.

Key features

• Frequency range: 20 - 175MHz clock signal
• Reduced bus lines lower wiring size and cost
• 3.3V supply voltage
• Low-power mode
• Supports VGA, SVGA, XGA, SXGA
• 4.90Gbps data throughput
• 612.5Megabytes/sec bandwidth
• Reduced LVDS swing for lower EMI (300mV LVDS swing)
• PLL requires no external components
• Compliant with TIA/EIA-644 LVDS standard
• TSSOP56 package
