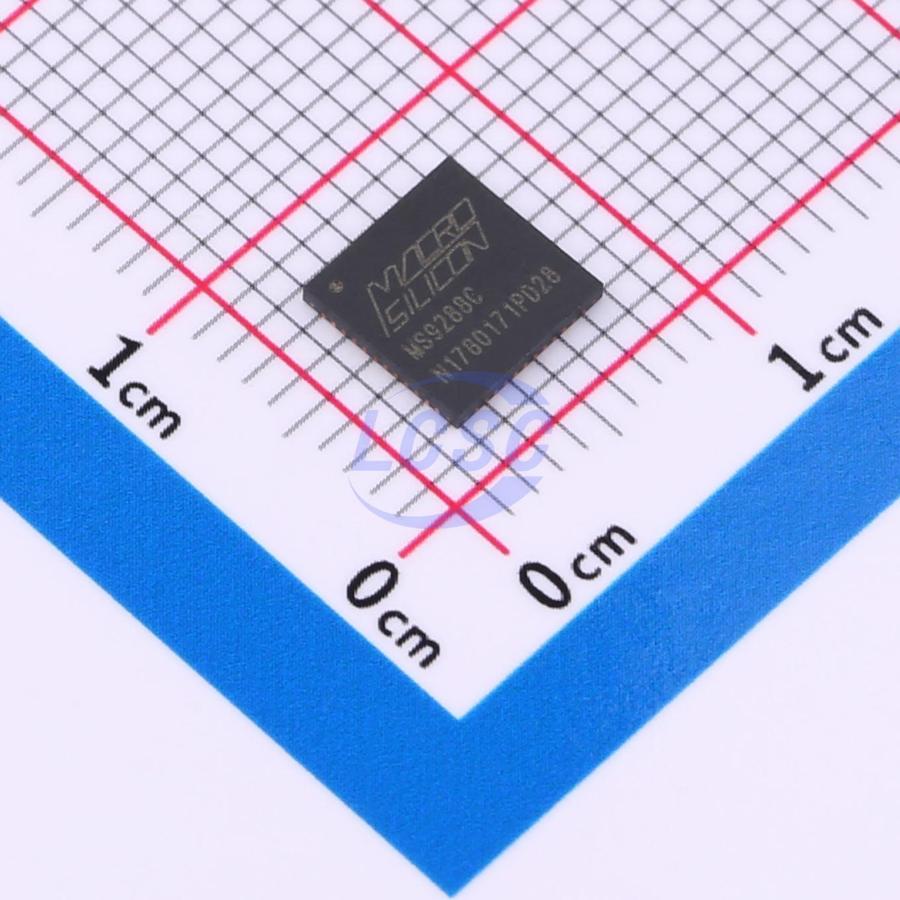

MS9288C
Bridge/Converter I2C QFN-48-EP(6x6) Video Processing RoHS
Analog RGB to HD Converter
- Manufacturer
- Macrosilicon
- Manufacturer part #
- MS9288C
- Store part #
- C2914316
- Package / case
- QFN-48-EP(6x6)
- Category
- Video Processing
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,565 in stock
#C2914316
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹198.26 | ₹198.26 |
| 10+ | ₹163.09 | ₹1,630.90 |
| 30+ | ₹143.76 | ₹4,312.80 |
| 100+ | ₹122.05 | ₹12,205.00 |
| 490+ | ₹112.27 | ₹55,012.30 |
| 980+ | ₹107.93 | ₹1,05,771.40 |
1 × ₹198.26
₹198.26
excl. GST
₹233.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 490 per tray
MS9288C
₹198.26 for 1 + GST
Specifications
- Voltage - Supply
- 1.62V~1.98V;3V~3.6V
- Features
- Hot-swap protection
- Operating Temperature
- -40℃~+85℃
- Type
- Bridge/Converter
- Control Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tray
- Standard pack
- 490 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.09 g
Overview
MS9288C is a low-cost, low-power, high-performance VGA-to-HD converter chip with a maximum conversion rate of 165MHz, integrating three 10-bit video ADCs, an HD transmitter, and an audio encoder. It supports left/right channel audio input with a built-in MCU and firmware.
Applications
- VGA to HD adapter/docking station
- Handheld/portable devices
- Desktop/laptop peripherals
Key features
- Triple 10-bit ADC
- Up to 165MSPS sampling conversion rate
- Input signal amplitude: 0.45V–1.1V (peak-to-peak)
- Automatic phase, gain, and offset adjustment
- Dual-channel 24-bit ADC
- Sampling rate: 48KHz
- HD specification support
- Integrated HD TMDS transmitter, operating at 165MHz
- 24-bit color depth support, max resolution 1080P@60Hz
- Hot-plug detection support
- Video encryption enhancement via external EEPROM
- Black/white enhancement
- Transitional improvement enhancement
- Dynamic peaking enhancement
- Adjustable brightness/saturation/contrast/hue
- I²C bus slave mode support
- DDC I²C bus master mode support
- External crystal oscillator support: 24.576MHz
- QFN-48 (6mm×6mm) plastic package
- 3.3V and 1.8V power supply
- Lead-free, RoHS compliant
