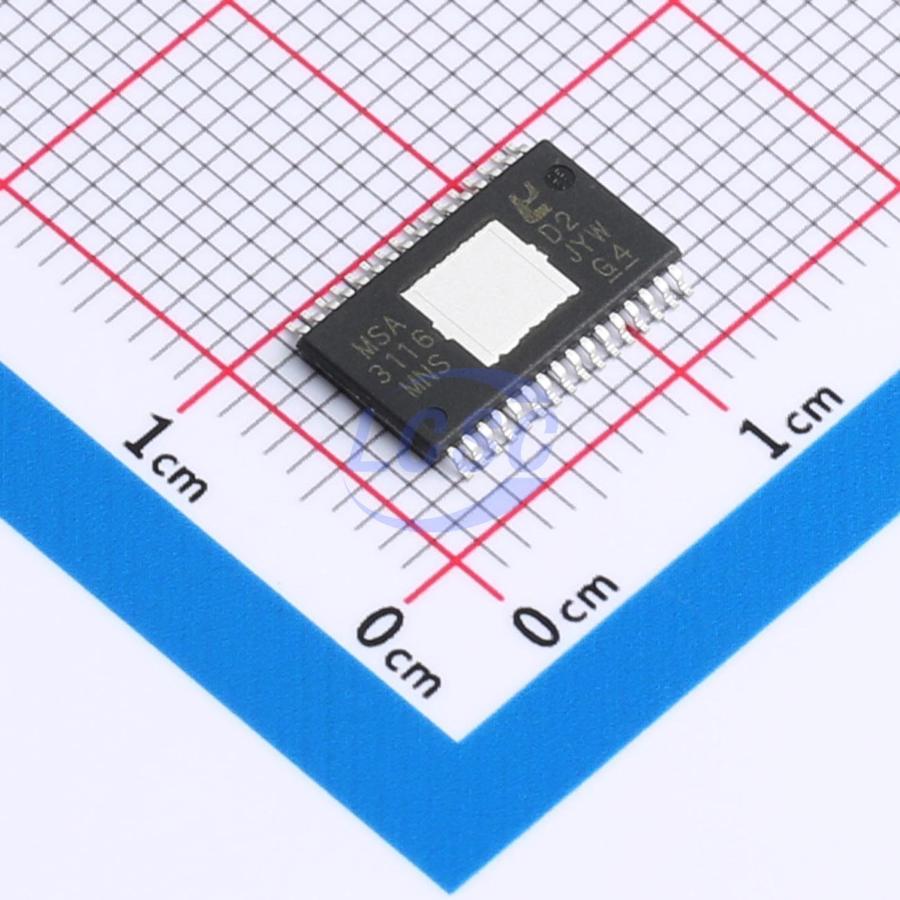

Minos

MSA3116D2

20mA 5.5V~26V 2-Channel 50W×2@4Ω Class D ETSSOP-32 Audio Amplifiers RoHS

ETSSOP-32ROHS CompliantActive

2x50W Stereo Class-D Audio Power Amplifier

Manufacturer: Minos
Manufacturer part #: MSA3116D2
Store part #: C42444488
Package / case: ETSSOP-32
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,486 in stock

#C42444488

Stock & price checked 44 h ago

Quantity	Unit price	Pack price
1+	₹94.75	₹94.75
10+	₹83.48	₹834.80
30+	₹77.85	₹2,335.50
100+	₹72.21	₹7,221.00
500+	₹68.74	₹34,370.00
1,000+	₹67.00	₹67,000.00

Quantity (min 1)

1 × ₹94.75

₹94.75

excl. GST

₹111.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

MSA3116D2

₹94.75 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Quiescent Current: 20mA
Voltage - Supply: 5.5V~26V
Features: Integrated PLL;Overvoltage protection
Total Harmonic Distortion + Noise (THD+N): 0.1%
Operating Temperature: -40℃~+150℃
Number of Inputs: 2 Pairs Differential Inputs
Signal-to-Noise Ratio: 102dB
Speaker Channels: 2-Channel
Efficiency: 90%
Output Power: 50W×2@4Ω
Class: Class D
Power Supply Rejection Ratio (PSRR): -70dB

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.44 g

Overview

The MSA3116 is a high-efficiency stereo Class-D power amplifier IC. Its integrated PLL circuit allows selection of different switching frequencies to avoid AM interference, and its advanced EMI suppression technology enables EMC compliance using only low-cost ferrite bead filters at the output. The IC also features external clock synchronization for multi-device synchronization. Both mono and stereo output modes are supported. In mono mode with a 2Ω speaker, output power reaches 100W. In stereo mode with an adequate heatsink, output power reaches 2×50W/4Ω. Comprehensive protection features include short-circuit protection, over-temperature protection, over/under-voltage protection, and DC protection. The internally integrated ~120mΩ MOSFETs enable a stereo output power of 2×50W/4Ω with an adequate heatsink.

Applications

Consumer audio equipment
Automotive audio equipment

Key features

Wide operating voltage range: 5.5V - 26V
High-efficiency Class-D operation: >90% conversion efficiency, advanced PWM modulation scheme
Externally adjustable switching frequency, up to 1.2MHz, AM suppression, master-slave mode and synchronization
Externally adjustable power limit
Compatible with differential input and single-ended input applications
Integrated multi-protection circuits: OVP, UVLO, OTP, DC detection, short-circuit protection
ETSSOP32 enhanced package
