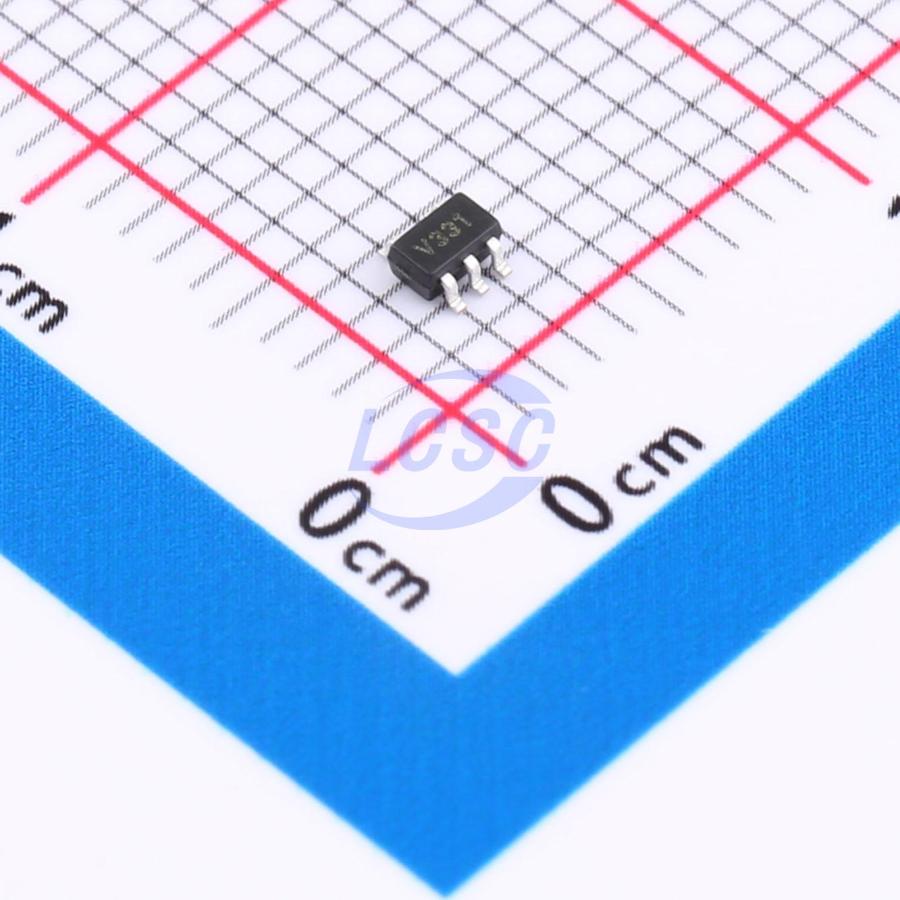

MSLMV331SE-7
800uV 2pA 1 SC70-5 Linear Comparators
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSLMV331SE-7
- Store part #
- C49208514
- Package / case
- SC70-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,530 in stock
#C49208514
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.60 | ₹78.00 |
| 50+ | ₹12.36 | ₹618.00 |
| 150+ | ₹10.74 | ₹1,611.00 |
| 500+ | ₹9.53 | ₹4,765.00 |
| 3,000+ | ₹8.56 | ₹25,680.00 |
| 6,000+ | ₹8.07 | ₹48,420.00 |
5 × ₹15.60
₹78.00
excl. GST
₹92.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSLMV331SE-7
₹78.00 for 5 + GST
Specifications
- Dual Supply
- 0.9V~2.75V
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Vos - Input Offset Voltage
- 800uV
- Ib - Input Bias Current
- 2pA
- Quiescent Current
- 50uA
- Number of Channels
- 1
- Input Offset Voltage Drift(Vos TC)
- 0.8uV/℃
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -25℃~+125℃
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
MSLMV331SE-7 is a single comparator featuring open-drain output for maximum flexibility. It operates over a supply voltage range of 1.8V to 5.5V, with a typical supply current of 50μA per channel at output low. This device is a cost-effective solution meeting the key design requirements of portable consumer products, including low-voltage operation, low power consumption, and space savings. The MSLMV331SE-7 is available in an SC70-5 package and operates over an ambient temperature range of -25°C to +125°C.
Applications
- Hysteresis comparator
- Oscillator
- Window comparator
- Industrial equipment
- Test & measurement
Key features
- Supply voltage range: +1.8V to +5.5V
- Low supply current: 50μA typical per channel at Vs = 5V with output low
- Input common-mode voltage range includes ground
- Low output saturation voltage: 100mV typical
- Open-drain output for maximum flexibility
- Specified operating temperature up to +125°C
- Miniature package: SC70-5
