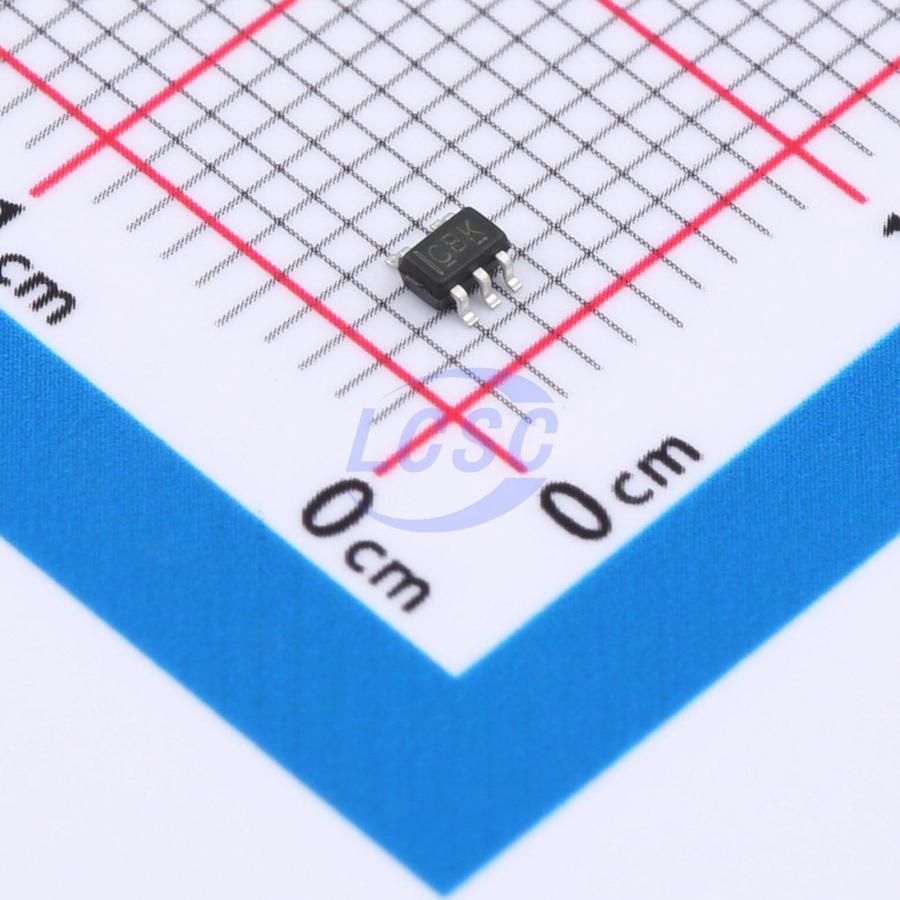

MSN74LVC1G02DCKR
10uA 1.65V~5.5V 4ns@3.3V,50pF SC-70-5 Gates and Inverters
SC-70-5RoHSActive
Single 2-input positive NOR gate
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSN74LVC1G02DCKR
- Store part #
- C42403088
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,890 in stock
#C42403088
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.18 | ₹71.80 |
| 100+ | ₹5.68 | ₹568.00 |
| 300+ | ₹4.92 | ₹1,476.00 |
| 3,000+ | ₹4.35 | ₹13,050.00 |
| 6,000+ | ₹3.90 | ₹23,400.00 |
| 9,000+ | ₹3.66 | ₹32,940.00 |
10 × ₹7.18
₹71.80
excl. GST
₹84.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSN74LVC1G02DCKR
₹71.80 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;800mV;-
- Logic Family
- 74LVC
- Operating Temperature
- -20℃~+85℃
- Input Logic Level - High
- 1.7V;2V;-
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Propagation Delay
- 4ns@3.3V,50pF
- Output Logic Level - Low
- 550mV
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
This single 2- input positive- NOR gate is designed for 1.65- V to 5.5- V Vcc operation. The MSN74LVC1G02DxxR performs the Boolean function. Y = A(overline) + B(overline) or Y = A(overline) x B(overline) in positive logic. The CMOS device has high output drive while maintaining low static power dissipation over a broad Vcc operating range. This device is fully specified for partial- power- down applications using loff. The loff circuitry prevents daamaging current backflow through the device when the gate is
Applications
- Personal digital assistant devices
- AV receiver
- MP3 player/recorder
- Solid state drive (SSD): client and enterprise
- Power: telecom/server AC/DC supply
- TV: LCD/digital and high-definition (HDTV)
Key features
- Operate from 1.65 V to 5.5 V
- Supports 5-V Vcc operation
- Specified from -20℃ to 85℃
- Provides down translation to Vcc
- Max tpd of 4 ns at 3.3 V
- ±24-mA output drive at 3.3 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MSN74AHC1G02DCKR#C42403097MSKSEMI · SC-70-5 | MSKSEMI | SC-70-5 | 2,970 | ₹7.22 · 2,970 in stock | View |
