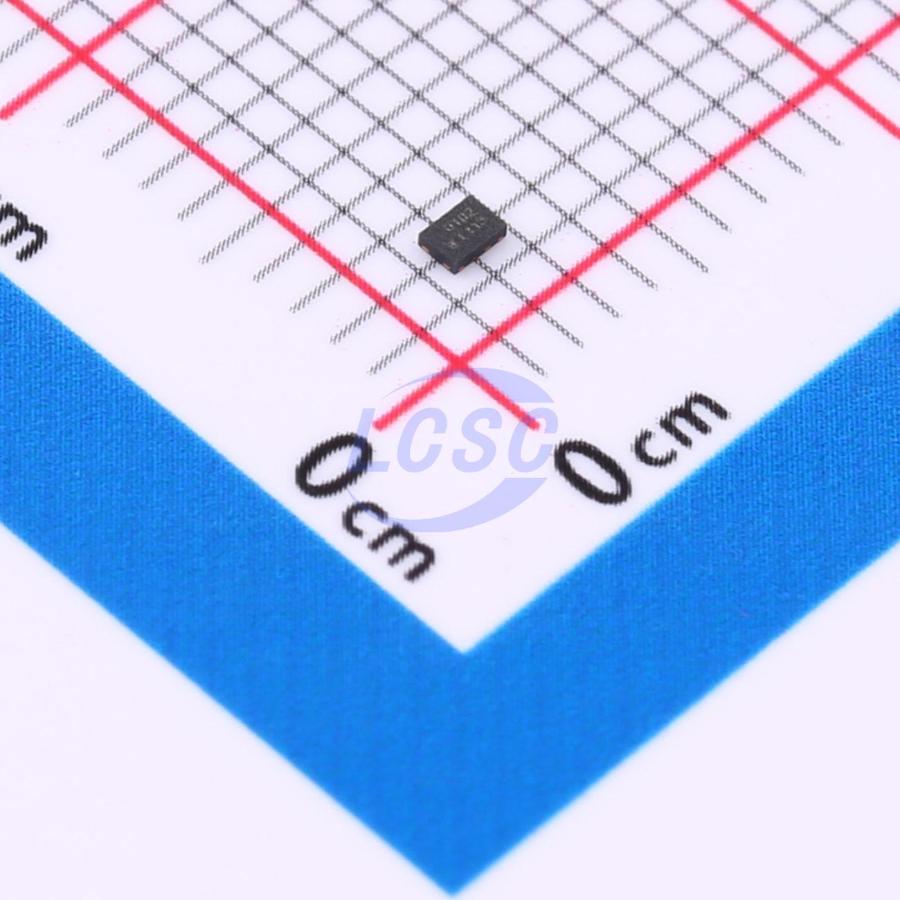

MTXS0102DQER

This device is a dual-bit non-inverting translator that functions as a bidirectional voltage-level translator, enabling digital switching compatibility between multi-voltage systems. The IC features two independently configurable supply rails: port A supports an operating voltage of 1.65 V to 3.6 V and tracks the VCCA supply, while port B supports an operating voltage of 2.3 V to 5.5 V and tracks the VCCB supply. These features provide support for both lower and higher logic signal levels, while enabling bidirectional translation between 1.8 V, 2.5 V, 3.3 V, and 5 V voltage nodes. When the output-enable input is driven low, all I/O ports are forced into a high-impedance state, significantly reducing quiescent current consumption. To maintain the high-impedance state during power-up or power-down, the output-enable pin should be connected to ground through a pull-down resistor; the minimum value of this resistor is determined by the current-sourcing capability of the driver.

Applications

• Mobile Phone/Smartphone
• MART
• IPC
• GPIO

Key features

• Direction control-free
• Data rate: 24 Mbps (push-pull), 2 Mbps (open-drain)
• Port A voltage range 1.65 V to 3.6 V, Port B voltage range 2.3 V to 5.5 V (VCCA ≤ VCCB)
• VCC isolation: if either VCC input is grounded, both ports enter high-impedance state
• No power sequencing required: VCCA or VCCB can power up first
• Ioff supports partial power-down mode operation
• Operating temperature range: -40°C to +85°C
