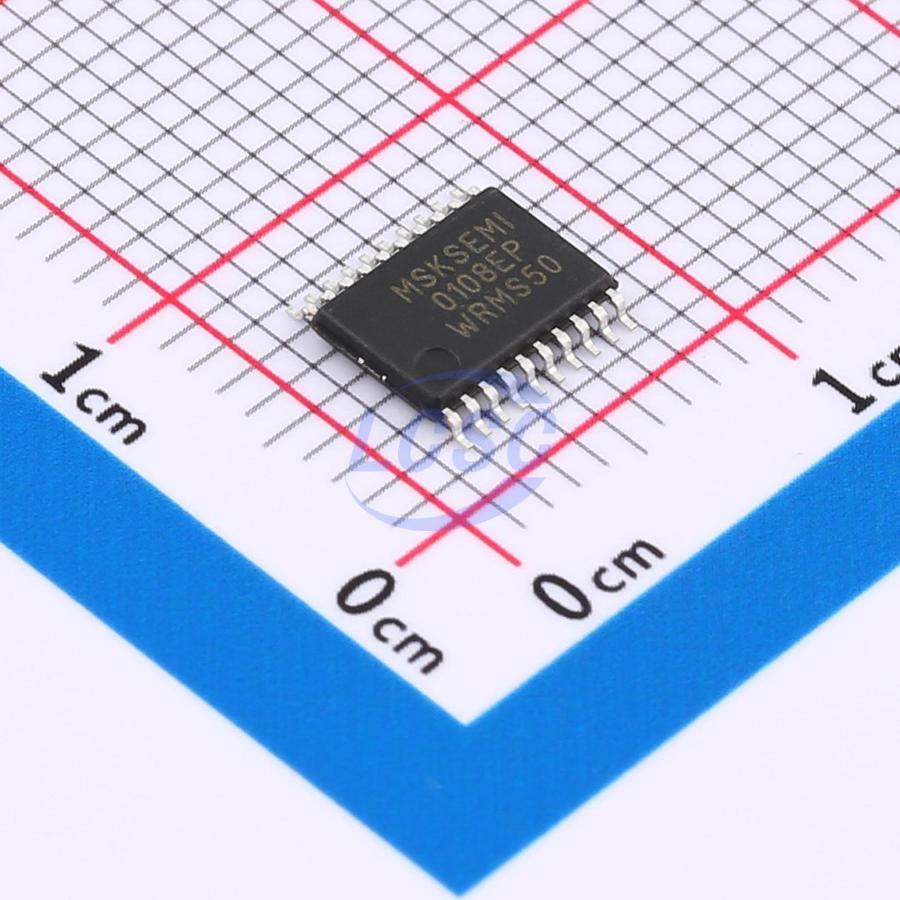

MTXS0108EPWR

This 8-Bit non-inverting translator which is a bidirectional voltage-level translator and can be used build digital switching compatibility between multi voltage systems. This IC uses two separate configurable power supply rails that including A ports supporting operating voltages from 1.65 V to 3.6 V with tracking VCCA supply, and also including B ports supporting operating voltages from 2.3 V to 5.5 V with tracking VCCB supply. The advantage above provides the support of both lower and higher logic signal levels while providing bidirectional translation capabilities between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage circuit points. Placing output-enable (OE) input to low level, all I/Os are forced to high-impedance state that significantly lower the quiescent current consumption. In order to ensure the high-impedance state during power up or power down, OE pin should be tied to GND via a pulldown resisto

Applications

• Handset/Smartphone ΜART
• IPC GPIO

Key features

• No direction -control
• Data rates
• 24 Mbps (Push Pull)
• 2 Mbps (Open)
• 1.65 V to 3.6 V on A port and 2.3 V to 5.5 V on B port (VCCA ≤VCCB)
• VCC isolation feature: If either VCC input is at GND, both ports are in the high -impedance state
• No power -supply sequencing required: either VCCA or VCCB can be ramped first
• I off supports partial -power -down mode operation
• Operating temperature range: -40 °C to +85 °C
