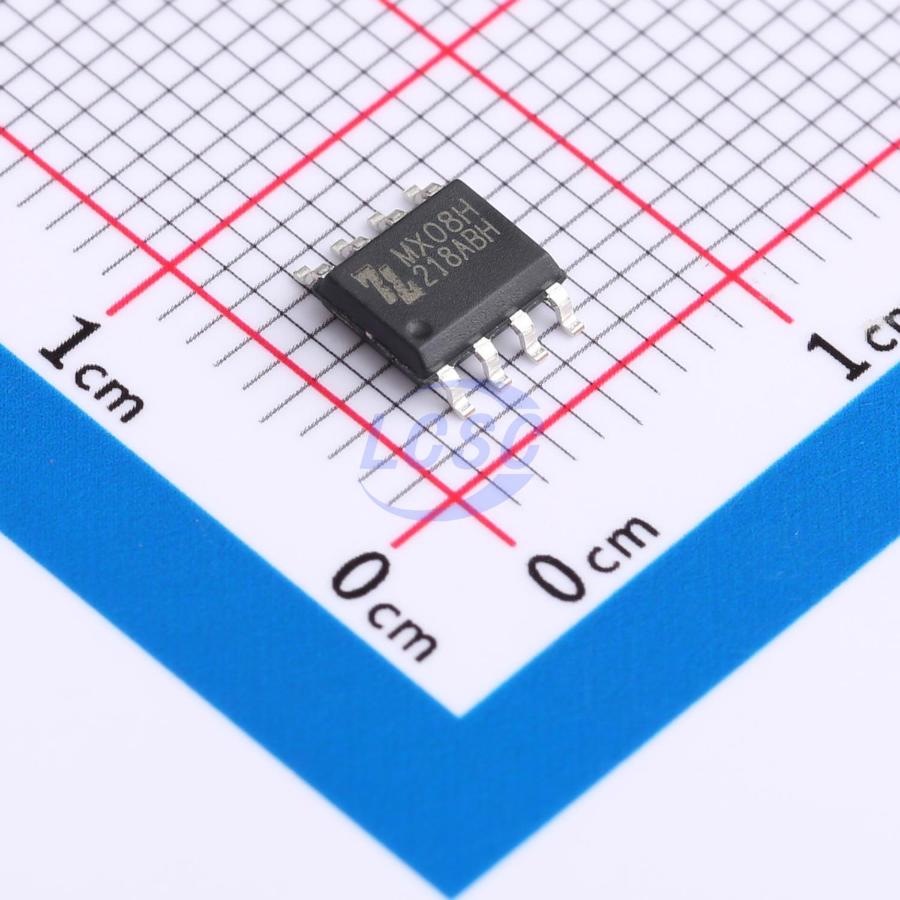

MX08H
2V~5V SOP-8 Motor Drivers, Controllers RoHS
Brushed DC motor drive circuit
- Manufacturer
- Mixic
- Manufacturer part #
- MX08H
- Store part #
- C5119035
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,330 in stock
#C5119035
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.16 | ₹90.80 |
| 50+ | ₹14.14 | ₹707.00 |
| 150+ | ₹12.13 | ₹1,819.50 |
| 500+ | ₹10.62 | ₹5,310.00 |
| 2,500+ | ₹9.99 | ₹24,975.00 |
| 4,000+ | ₹9.39 | ₹37,560.00 |
5 × ₹18.16
₹90.80
excl. GST
₹107.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MX08H
₹90.80 for 5 + GST
Specifications
- Features
- Interleaved conduction protection;Motor stall protection;Active braking function
- Technology
- Yes
- Voltage - Supply
- 2V~5V
- Operating Temperature
- -20℃~+85℃
- Supply Current (Iq)
- 100nA
- Output Current
- 1.2A
- Peak Current
- 2.5A
- RDS(on)
- 500mΩ;350mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
- H-bridge circuit topology with integrated N-channel and P-channel power MOSFETs, optimized for driving inductive loads such as coils and motors. - Integrated over-temperature protection: shuts off load current when internal temperature exceeds the set threshold (typical 150°C); resumes normal operation when junction temperature drops back to the preset level (typical 130°C). Note: no short-circuit protection is provided — output-to-GND, output-to-supply, or output-to-output shorts may cause device damage. Avoid short-circuit conditions during use, or implement current-limiting measures to prevent such damage. - Logic supply VCC and power supply VDD are fully independent internally. Route them separately in layout; do NOT connect VCC and VDD directly together, as the high voltage on VDD may damage the VCC rail.
Applications
- Toy motor driver powered by 2–4 AA/AAA dry cell batteries
- Toy motor driver powered by 2–5 NiMH/NiCd rechargeable batteries
- Motor driver powered by 2-cell lithium battery
Key features
- Low standby current (< 0.1uA)
- Operating voltage range: 2V - 8.6V
- Maximum continuous output current: 1.2A (VDD = 6.5V)
- Maximum peak output current: 2.5A (VDD = 6.5V)
- Low on-resistance: 0.5Ω at 1200mA output current; 0.35Ω at 200mA output current
- Low input current — logic inputs INA\INB with integrated 15K pull-down resistors to GND
- Built-in thermal shutdown (TSD) with hysteresis
- ESD rating: 3KV (HBM)
