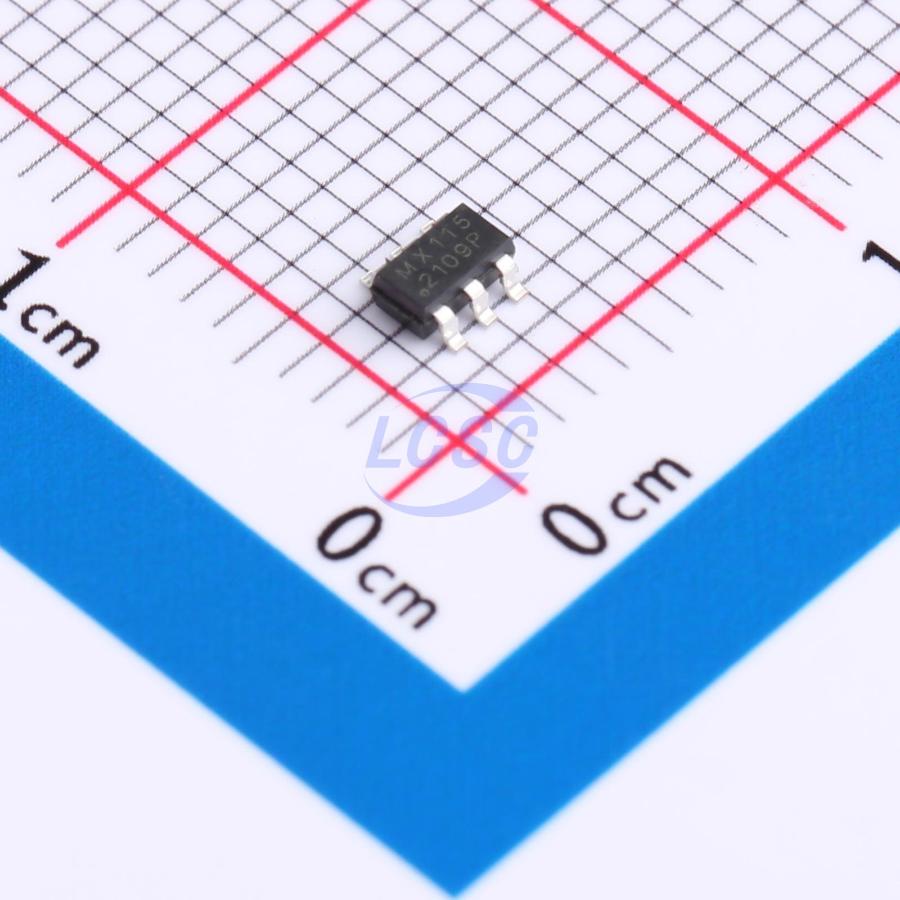

MX115
4.5V~15V SOT-23-6 Motor Drivers, Controllers RoHS
- Manufacturer
- Mixic
- Manufacturer part #
- MX115
- Store part #
- C5119036
- Package / case
- SOT-23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,420 in stock
#C5119036
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.53 | ₹105.30 |
| 100+ | ₹8.59 | ₹859.00 |
| 300+ | ₹7.61 | ₹2,283.00 |
| 3,000+ | ₹5.94 | ₹17,820.00 |
| 6,000+ | ₹5.36 | ₹32,160.00 |
| 9,000+ | ₹5.07 | ₹45,630.00 |
10 × ₹10.53
₹105.30
excl. GST
₹124.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MX115
₹105.30 for 10 + GST
Specifications
- Features
- Active braking function
- Voltage - Supply
- 4.5V~15V
- Operating Temperature
- -20℃~+85℃
- Supply Current (Iq)
- 100nA
- Output Current
- 100mA
- Peak Current
- 500mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.009 g
Overview
- MX115 is an ASIC designed for controlling and driving bidirectional motors. The input is TTL/CMOS compatible with excellent noise immunity; the internal logic control circuit enables forward rotation, reverse rotation, and braking of bidirectional motors; - The power transistors support a continuous current with a typical value of 100mA; - Built-in clamp diodes dissipate reverse surge current from inductive loads; - SOT23-6 small form factor package, suitable for space-constrained applications.
Applications
- Bidirectional motor drive
- Camera IR-CUT filter driver
Key features
- Low quiescent current
- Wide supply voltage range: 4.5V - 15V
- Continuous current output capability per channel (typical: 100mA)
- Low saturation voltage drop
- Four output states: forward, reverse, brake, and high-impedance
- TTL/CMOS output level compatible, direct CPU interface
- Built-in output clamp diodes for inductive loads
- Control and drive integrated in a single IC
- Pin overvoltage protection
- ESD immunity: 2000V (HBM)
- Operating temperature range: -20℃ ~ +85℃
