MixicDatasheet (PDF)

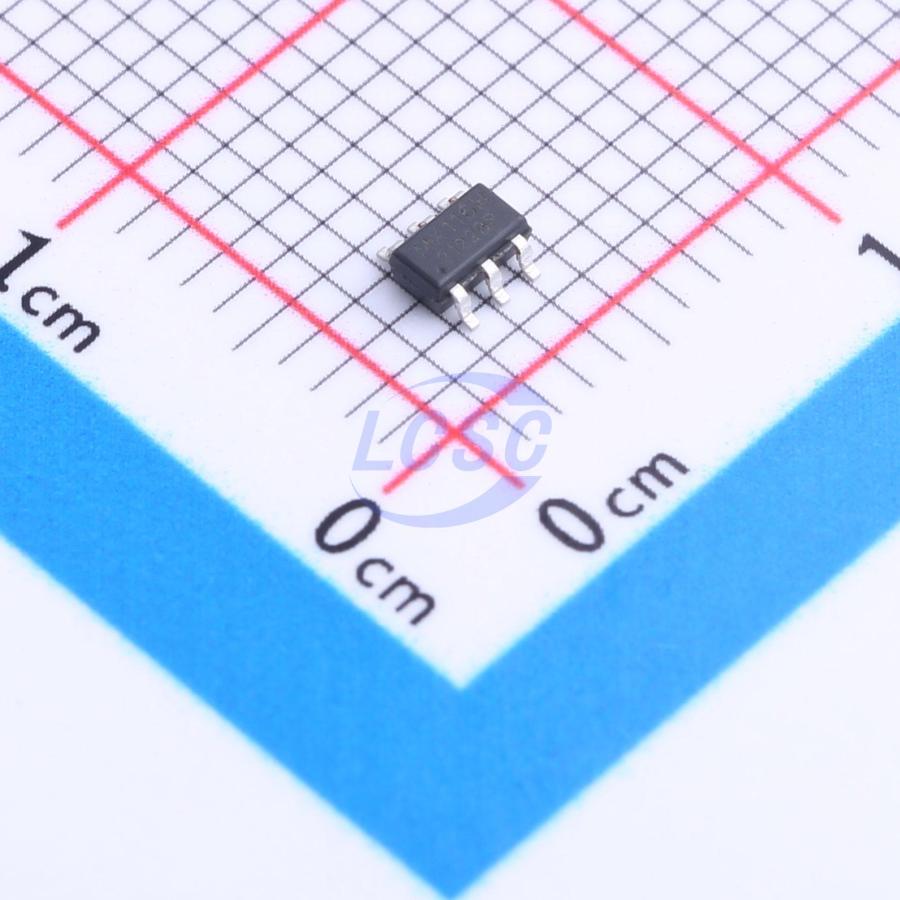

MX116H
2V~8V SOT-23-6 Motor Drivers, Controllers RoHS
SOT-23-6ROHS CompliantActive
Brushed DC motor drive circuit
- Manufacturer
- Mixic
- Manufacturer part #
- MX116H
- Store part #
- C2845121
- Package / case
- SOT-23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,950 in stock
#C2845121
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.08 | ₹70.40 |
| 50+ | ₹11.31 | ₹565.50 |
| 150+ | ₹9.94 | ₹1,491.00 |
| 500+ | ₹8.89 | ₹4,445.00 |
| 3,000+ | ₹7.49 | ₹22,470.00 |
| 6,000+ | ₹7.06 | ₹42,360.00 |
5 × ₹14.08
₹70.40
excl. GST
₹83.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MX116H
₹70.40 for 5 + GST
Specifications
- Features
- Active braking function
- Technology
- Yes
- Voltage - Supply
- 2V~8V
- Operating Temperature
- -20℃~+85℃
- Supply Current (Iq)
- 600nA
- Peak Current
- 1A
- RDS(on)
- 500mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
Applications
- RC toy aircraft tail motor drive
- RC toy aircraft servo motor drive
- Toy DC motor drive
- Digital product motor drive
Key features
- Low standby current (< 0.1uA)
- Low on-resistance MOSFET power switch designed with MOS process; 100mA channel on-resistance 0.5Ω, 500mA channel on-resistance 0.7Ω
- Integrated freewheeling diode — no external freewheeling diode required
- Ultra-compact SOT23-6 package, overall dimensions 2.92mm × 2.8mm (including leads)
- Low input current with integrated ~15K pull-down resistor to GND
- Built-in thermal shutdown (TSD) with hysteresis
- ESD rating: 3KV (HBM)
