MAXDatasheet (PDF)

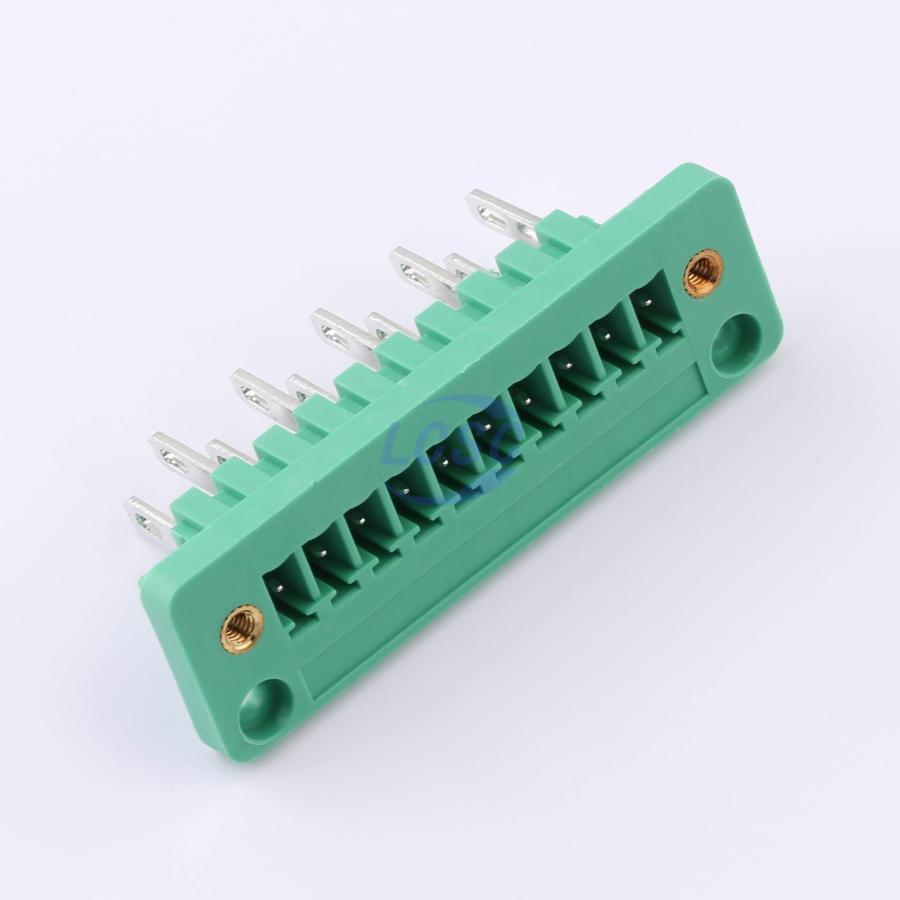

MX15CDGV-3.81-10P-GN01-Cu-A
10 Position Feed Through 3.81mm Pitch
P=3.81mmROHS CompliantActive
Feed Through 10POS 3.81mm
- Manufacturer
- MAX
- Manufacturer part #
- MX15CDGV-3.81-10P-GN01-Cu-A
- Store part #
- C48688055
- Package / case
- P=3.81mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
74 in stock
#C48688055
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹195.94 | ₹195.94 |
| 10+ | ₹162.89 | ₹1,628.90 |
| 30+ | ₹144.88 | ₹4,346.40 |
| 80+ | ₹124.34 | ₹9,947.20 |
| 480+ | ₹115.23 | ₹55,310.40 |
| 960+ | ₹111.21 | ₹1,06,761.60 |
1 × ₹195.94
₹195.94
excl. GST
₹231.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per bag
MX15CDGV-3.81-10P-GN01-Cu-A
₹195.94 for 1 + GST
Specifications
- Current Rating
- 8A
- Number of Positions or Pins
- 1x10P
- Number of Pins
- 10P
- Voltage Rating
- 300V
- Operating Temperature
- -40℃~+105℃
- Pitch
- 3.81mm
- Connector Type
- Feed Through
- Color
- Green
- Number of PINs Per Row
- 10
- Mounting Type
- Panel Mount
- Termination Style
- Screw
- Number of Rows
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 80 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.77 g
