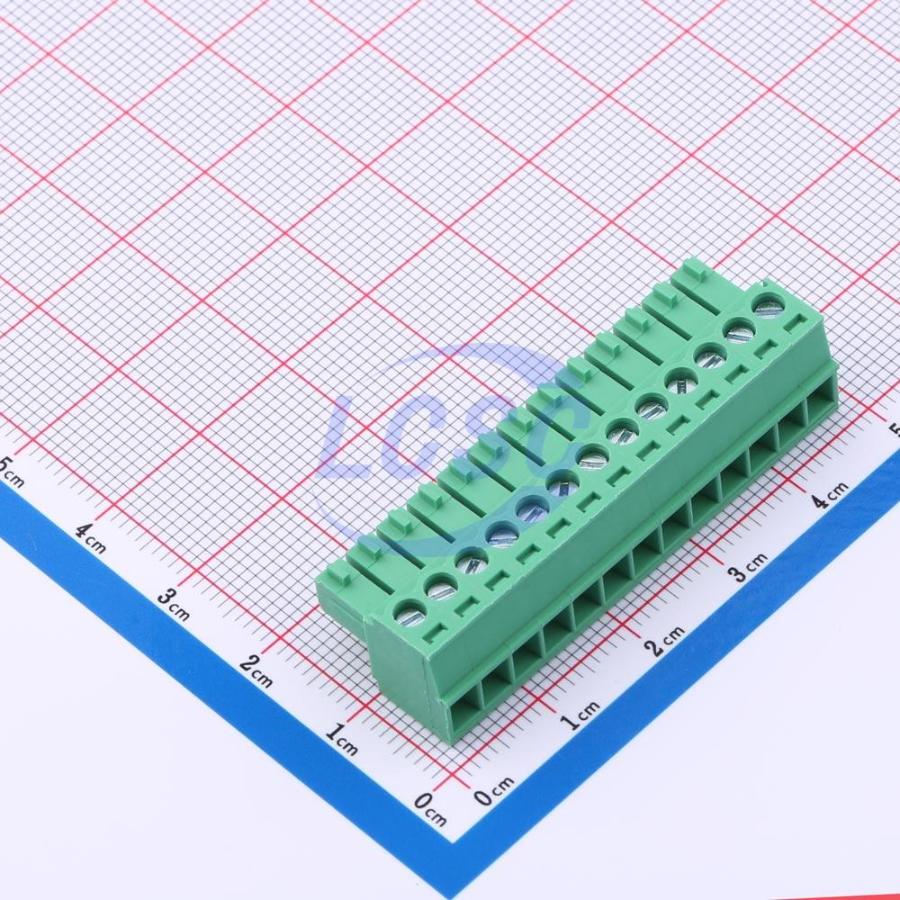

MX15EDGK-3.5-13P-GN01-Cu-Y-A
13 Position Male Plug 3.5mm Pitch
P=3.5mmROHS CompliantActive
TERM BLOCK PLUG 13POS 3.5mm
- Manufacturer
- MAX
- Manufacturer part #
- MX15EDGK-3.5-13P-GN01-Cu-Y-A
- Store part #
- C5188260
- Package / case
- P=3.5mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C5188260
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.62 | ₹94.62 |
| 10+ | ₹76.65 | ₹766.50 |
| 30+ | ₹67.67 | ₹2,030.10 |
| 100+ | ₹56.29 | ₹5,629.00 |
| 500+ | ₹51.11 | ₹25,555.00 |
| 1,000+ | ₹48.32 | ₹48,320.00 |
1 × ₹94.62
₹94.62
excl. GST
₹111.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per bag
MX15EDGK-3.5-13P-GN01-Cu-Y-A
₹94.62 for 1 + GST
Specifications
- Wire Gauge - mm2
- 1.5
- Wire Gauge - AWG
- 16~28
- Number of Positions or Pins
- 1x13P
- Number of Pins
- 13P
- Operating Temperature
- -40℃~+105℃
- Number of PINs Per Row
- 13
- Number of Rows
- 1
- Current Rating
- 8A
- Outlet Direction (Vertical Basis)
- Top Entry
- Connection Type
- Screw Connection (M2)
- Voltage Rating
- 300V
- Pitch
- 3.5mm
- Connector Type
- Male Plug
- Color
- Green
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 100 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.91 g
