MX15EDGK-3.81-20P-GN01-Cu-Y-A MAX
MAX

MX15EDGK-3.81-20P-GN01-Cu-Y-A

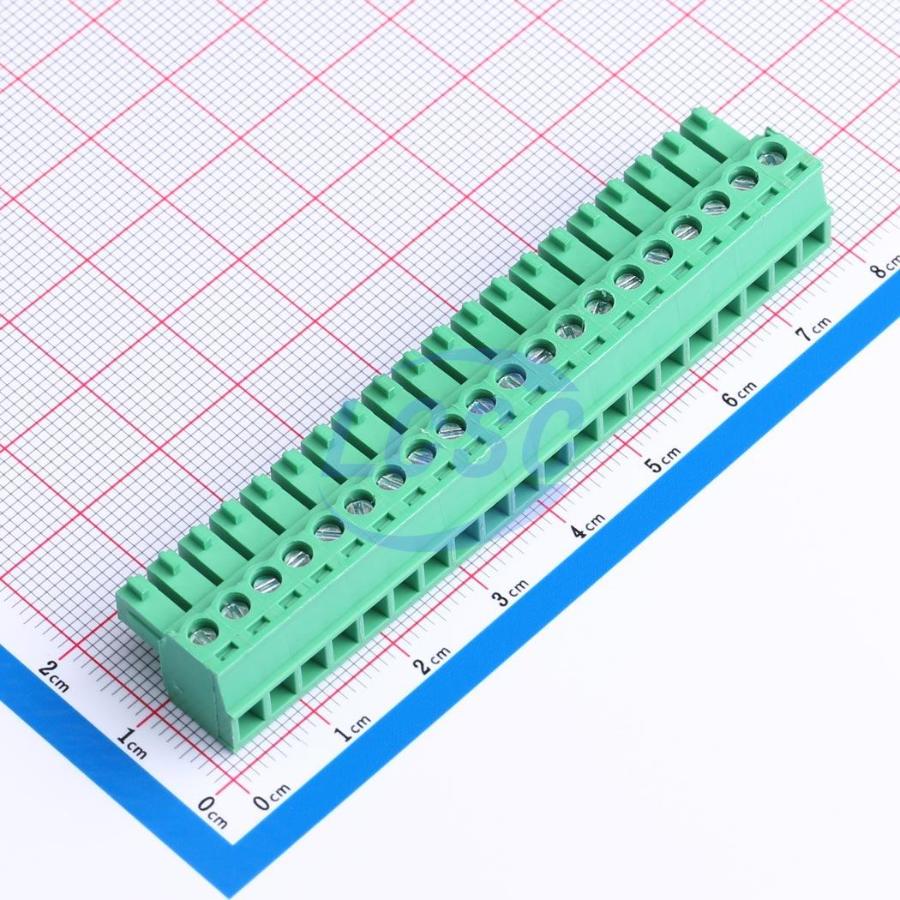

20 Position Male Plug 3.81mm Pitch

P=3.81mmROHS CompliantActive

TERM BLOCK PLUG 20POS 3.81mm

Manufacturer
MAX
Manufacturer part #
MX15EDGK-3.81-20P-GN01-Cu-Y-A
Store part #
C5188129
Package / case
P=3.81mm
Category
Headers, Plugs and Sockets
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

38 in stock

#C5188129

Stock & price checked 7 days ago

QuantityUnit pricePack price
1+₹147.50₹147.50
10+₹122.73₹1,227.30
50+₹104.87₹5,243.50
100+₹89.58₹8,958.00
500+₹82.69₹41,345.00
1,000+₹79.67₹79,670.00

1 × ₹147.50

₹147.50

excl. GST

₹174.05 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 50 per bag

MX15EDGK-3.81-20P-GN01-Cu-Y-A

₹147.50 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Wire Gauge - mm2
1.5
Wire Gauge - AWG
16~28
Number of Positions or Pins
1x20P
Number of Pins
20P
Operating Temperature
-40℃~+105℃
Number of PINs Per Row
20
Number of Rows
1
Current Rating
8A
Outlet Direction (Vertical Basis)
Top Entry
Connection Type
Screw Connection (M2)
Voltage Rating
300V
Pitch
3.81mm
Connector Type
Male Plug
Color
Green
Mounting Type
Free-hanging
Termination Style
Without fixing device

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Bag-packed
Standard pack
50 / Bag
Sold per
Piece
Minimum order
1
Unit weight
13.94 g
