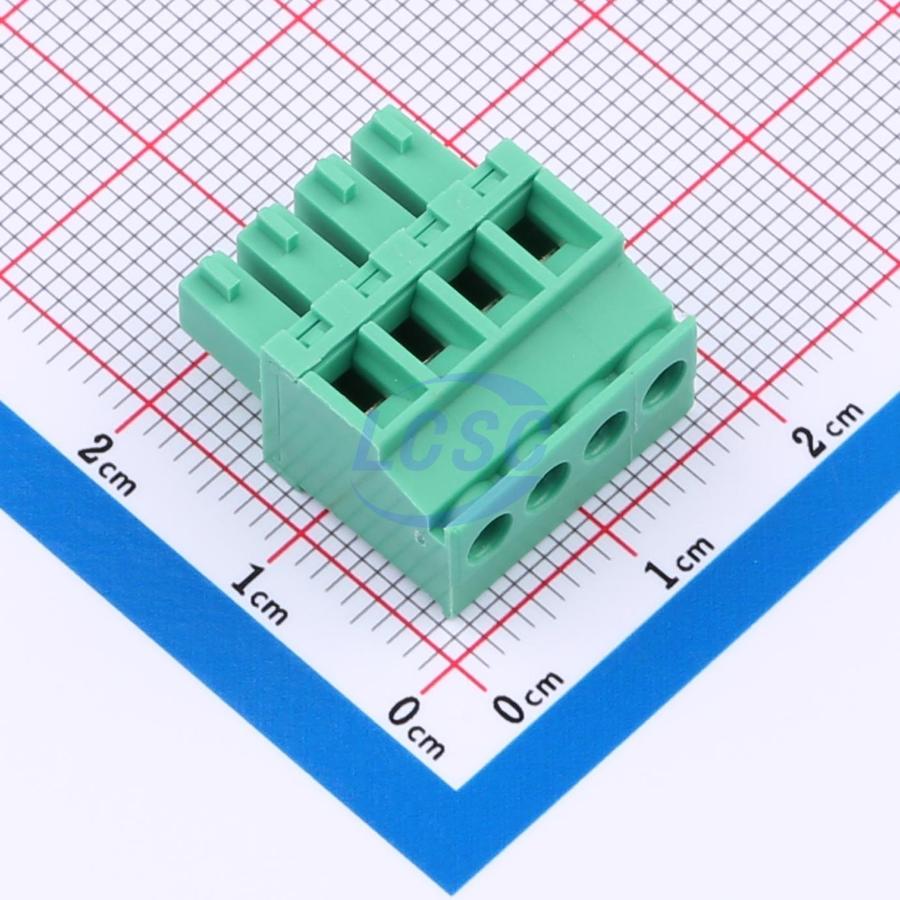

MX15EDGKA-3.81-04P-GN01-Cu-Y-A

0.2~1.5 16~28 1x4P 4P -40℃~+105℃ 4 1 8A 3.81mm Male Plug Green Free-hanging Without fixing device Through Hole,P=3.81mm Headers, Plugs and Sockets RoHS

Through Hole,P=3.81mmROHS CompliantActive

Manufacturer: MAX
Manufacturer part #: MX15EDGKA-3.81-04P-GN01-Cu-Y-A
Store part #: C19184555
Package / case: Through Hole,P=3.81mm
Category: Headers, Plugs and Sockets
Packaging: Bag-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

262 in stock

#C19184555

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹56.29	₹56.29
10+	₹44.32	₹443.20
30+	₹39.13	₹1,173.90
250+	₹32.55	₹8,137.50
500+	₹29.74	₹14,870.00
1,000+	₹27.95	₹27,950.00

Quantity (min 1)

1 × ₹56.29

₹56.29

excl. GST

₹66.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 250 per bag

MX15EDGKA-3.81-04P-GN01-Cu-Y-A

₹56.29 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Wire Gauge - mm2: 0.2~1.5
Wire Gauge - AWG: 16~28
Number of Positions or Pins: 1x4P
Number of Pins: 4P
Operating Temperature: -40℃~+105℃
Number of PINs Per Row: 4
Number of Rows: 1
Current Rating: 8A
Connection Type: Screw Connection (M2)
Voltage Rating: 300V
Pitch: 3.81mm
Connector Type: Male Plug
Color: Green
Mounting Type: Free-hanging
Termination Style: Without fixing device

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Bag-packed
Standard pack: 250 / Bag
Sold per: Piece
Minimum order: 1
Unit weight: 3.269 g
