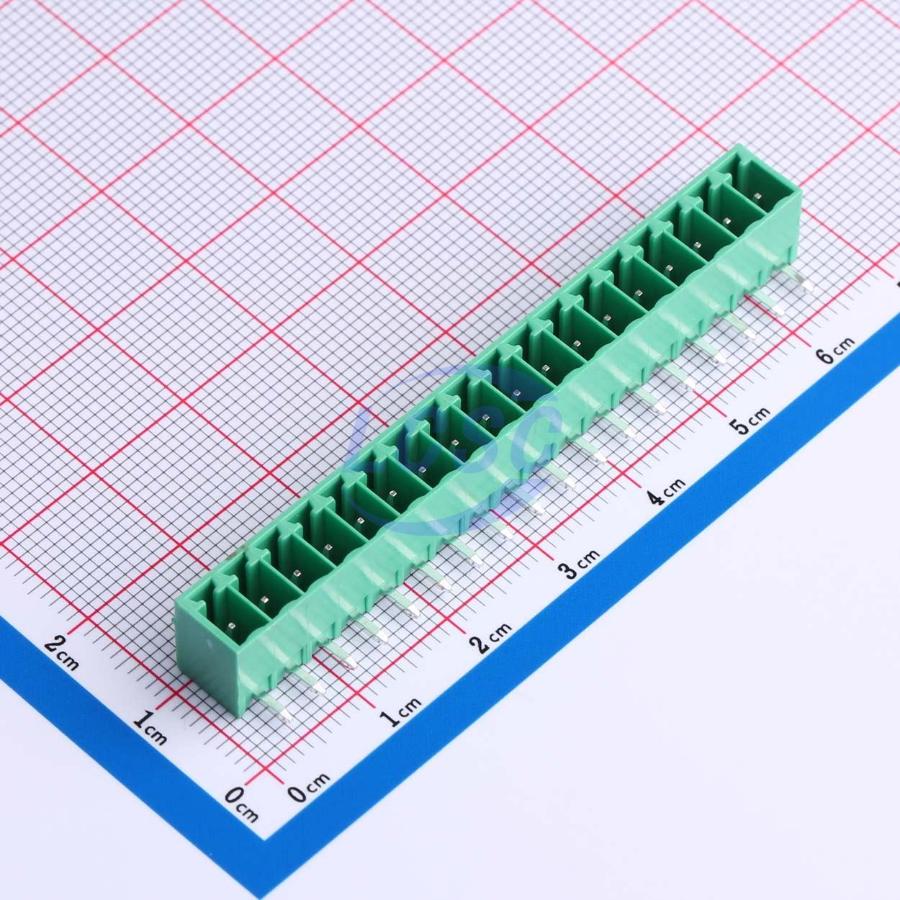

MX15EDGRC-3.5-18P-GN01-Cu-A MAX
MAX

MX15EDGRC-3.5-18P-GN01-Cu-A

18 Position Board Side/Socket - Closed 3.5mm Pitch Right-Angle Pin

Through Hole,Right Angle,P=3.5mmROHS CompliantActive

TERM BLOCK HDR 18POS 3.5mm

Manufacturer
MAX
Manufacturer part #
MX15EDGRC-3.5-18P-GN01-Cu-A
Store part #
C5188311
Package / case
Through Hole,Right Angle,P=3.5mm
Category
Headers, Plugs and Sockets
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

250 in stock

#C5188311

Stock & price checked 10 days ago

QuantityUnit pricePack price
5+₹45.89₹229.45
50+₹36.04₹1,802.00
200+₹31.82₹6,364.00
500+₹26.54₹13,270.00
2,500+₹24.20₹60,500.00
5,000+₹22.78₹1,13,900.00

5 × ₹45.89

₹229.45

excl. GST

₹270.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 100 per bag

MX15EDGRC-3.5-18P-GN01-Cu-A

₹229.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current Rating
8A
Number of Positions or Pins
1x18P
Number of Pins
18P
Voltage Rating
300V
Operating Temperature
-40℃~+105℃
Pitch
3.5mm
Connector Type
Board Side/Socket - Closed
Color
Green
Number of PINs Per Row
18
Termination Style
Without fixing device
Mounting Type
Right-Angle
Number of Rows
1

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Bag-packed
Standard pack
100 / Bag
Sold per
Piece
Minimum order
5 (multiples of 5)
Unit weight
3.44 g
