MAXDatasheet (PDF)

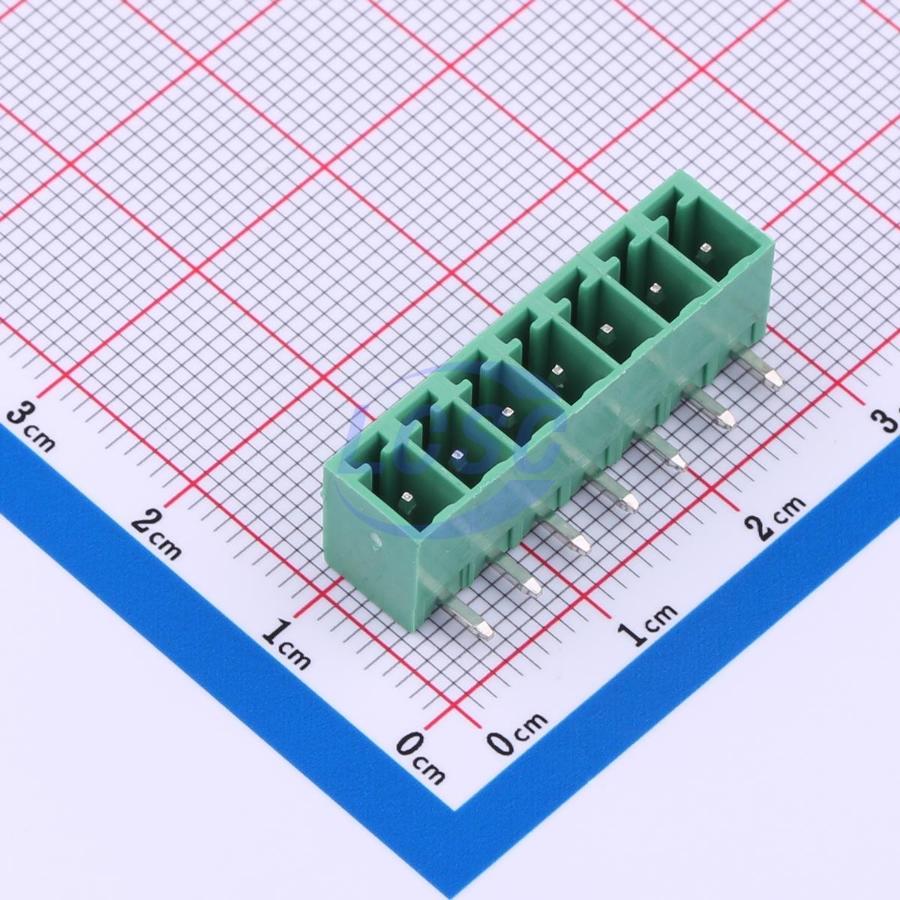

MX15EDGRC-3.81-07P-GN01-Cu-A
7 Position Board Side/Socket - Closed 3.81mm Pitch Right-Angle Pin
Through Hole,Right Angle,P=3.81mmROHS CompliantActive
TERM BLOCK HDR 7POS 3.81mm
- Manufacturer
- MAX
- Manufacturer part #
- MX15EDGRC-3.81-07P-GN01-Cu-A
- Store part #
- C5188162
- Package / case
- Through Hole,Right Angle,P=3.81mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
125 in stock
#C5188162
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.88 | ₹79.40 |
| 50+ | ₹12.62 | ₹631.00 |
| 150+ | ₹11.01 | ₹1,651.50 |
| 400+ | ₹9.79 | ₹3,916.00 |
| 2,400+ | ₹8.81 | ₹21,144.00 |
| 4,800+ | ₹8.32 | ₹39,936.00 |
5 × ₹15.88
₹79.40
excl. GST
₹93.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 400 per bag
MX15EDGRC-3.81-07P-GN01-Cu-A
₹79.40 for 5 + GST
Specifications
- Current Rating
- 8A
- Number of Positions or Pins
- 1x7P
- Number of Pins
- 7P
- Voltage Rating
- 300V
- Operating Temperature
- -40℃~+105℃
- Pitch
- 3.81mm
- Connector Type
- Board Side/Socket - Closed
- Color
- Green
- Number of PINs Per Row
- 7
- Termination Style
- Without fixing device
- Mounting Type
- Right-Angle
- Number of Rows
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 400 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.49 g
