MAXDatasheet (PDF)

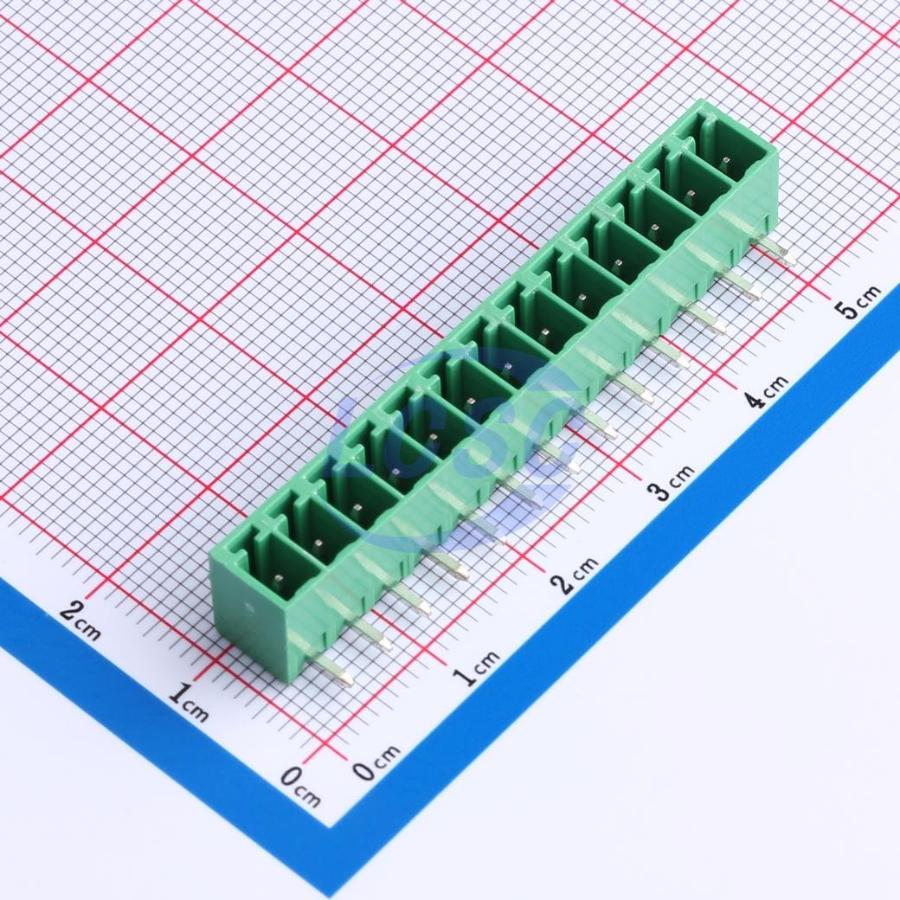

MX15EDGRC-3.81-13P-GN01-Cu-A
13 Position Board Side/Socket - Closed 3.81mm Pitch Right-Angle Pin
Through Hole,Right Angle,P=3.81mmROHS CompliantActive
TERM BLOCK HDR 13POS 3.81mm
- Manufacturer
- MAX
- Manufacturer part #
- MX15EDGRC-3.81-13P-GN01-Cu-A
- Store part #
- C5188168
- Package / case
- Through Hole,Right Angle,P=3.81mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C5188168
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.07 | ₹150.35 |
| 50+ | ₹23.77 | ₹1,188.50 |
| 200+ | ₹20.32 | ₹4,064.00 |
| 400+ | ₹16.96 | ₹6,784.00 |
| 2,400+ | ₹15.47 | ₹37,128.00 |
| 5,000+ | ₹14.57 | ₹72,850.00 |
5 × ₹30.07
₹150.35
excl. GST
₹177.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 200 per bag
MX15EDGRC-3.81-13P-GN01-Cu-A
₹150.35 for 5 + GST
Specifications
- Current Rating
- 8A
- Number of Positions or Pins
- 1x13P
- Number of Pins
- 13P
- Voltage Rating
- 300V
- Operating Temperature
- -40℃~+105℃
- Pitch
- 3.81mm
- Connector Type
- Board Side/Socket - Closed
- Color
- Green
- Number of PINs Per Row
- 13
- Termination Style
- Without fixing device
- Mounting Type
- Right-Angle
- Number of Rows
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 200 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.74 g
